48cavity 3025 Neck Shut off Nozzle (pin valve gate) Hot Runner Preform Mould

Zhejiang Taizhou Huangyan Hengxin Mould & Plastic Co., Ltd.
  • Gate Type：Pinpoint Gate
  • Shaping Mode：Injection Mould
  • Material：Stainless Steel
  • Application：Commodity, Household Appliances, Water
  • Warranty：1 Year
  • Runner System：Hot Runner

Base Info

  • Trademark：HENGXIN
  • Specification：Steel mould
  • Transport Package：Wooden Box
  • Plast Material：Pet,PC,PP
  • After-sales Service：After Service
  • Customized：Customized
  • Cavity Quantity：48
  • Model NO.：HX001
  • Origin：Zhejiang
  • HS Code：8480719090
  • Production Capacity：10000cavities Per Year

Description

CoreHRC 49-52
SWEDEN ASSAB S136
high glossy polish surface finish
 CavityHRC 49-52
SWEDEN ASSAB S136
CNC milling
Waterway spiral
 NeckHRC 48-50
SWEDEN ASSAB S136
Good cooling channel inside
 NozzleHRC 48-50
Nozzle Material : Beryllium
copper(Canada)
Nozzle Houts Material: SKD61
 InsulatorDuPond from USAPin HRC 52-60
PUNCH from Japan
SKD-61
 Heating Coil and Thermocouple
 Italy Rotfil

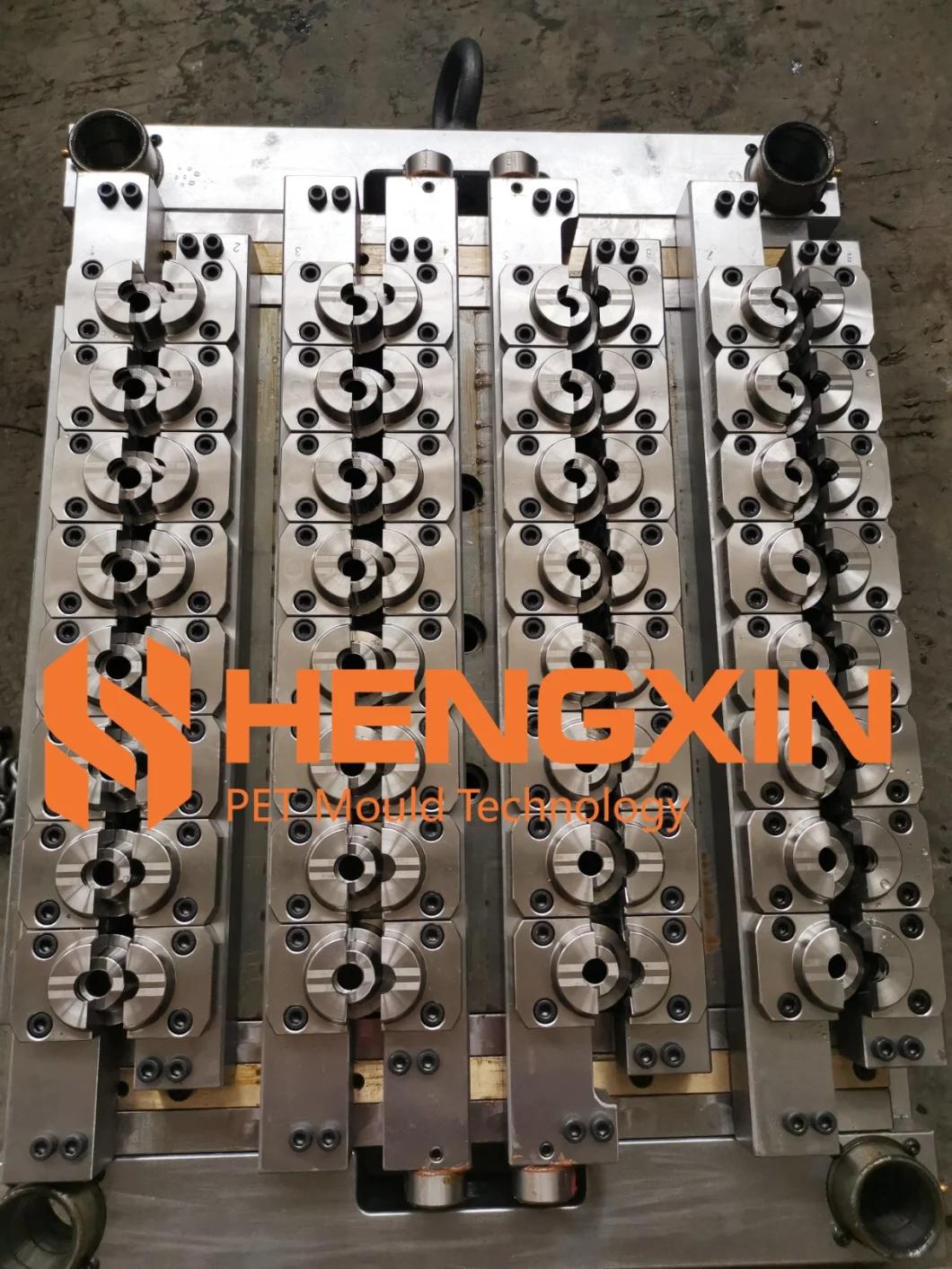

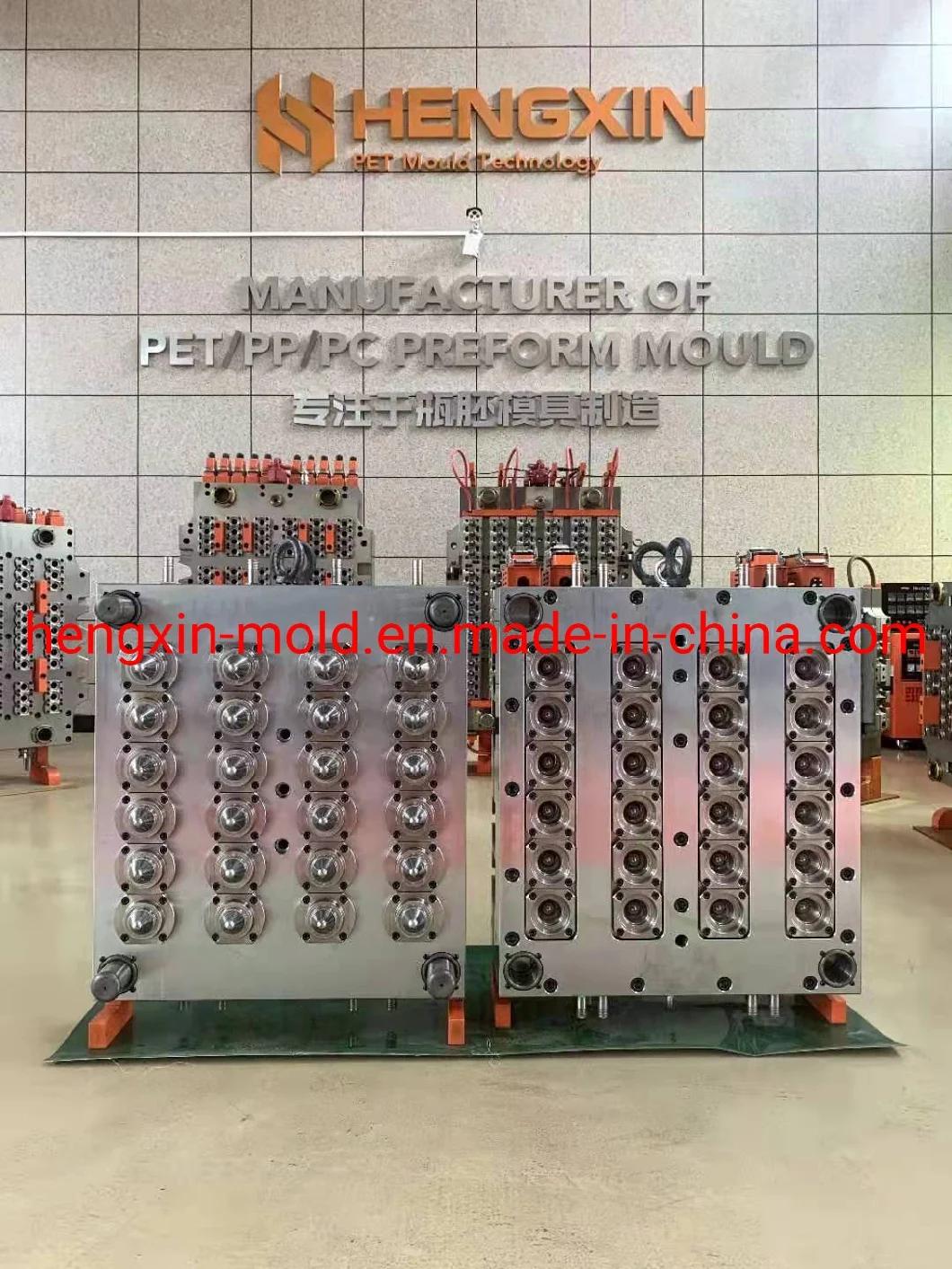

48cavity 3025 Neck Shut off Nozzle (pin valve gate) Hot Runner Preform Mould48cavity 3025 Neck Shut off Nozzle (pin valve gate) Hot Runner Preform Mould
Commercial and Delivery conditions:

1.Trade term: All the above price acquiesce in FOB price,if there are any requirements,it will be written beside the price.

2. Delivery time: 50 days after confirmation of the preform drawing and down payment being received.
 3. Payment term: 30% deposit to be paid by T/T against order. 70% to be paid by T/T before shipment after mould and sample approval.
 4.Warranty: We guarantee the mould to be free maintenance under the normal use for 12 months.starting on the date the mould delivered to the customer.

5. Mould use life: over 3,000,000 shots

6. Packing standard:   shrinking package in wooden box.
