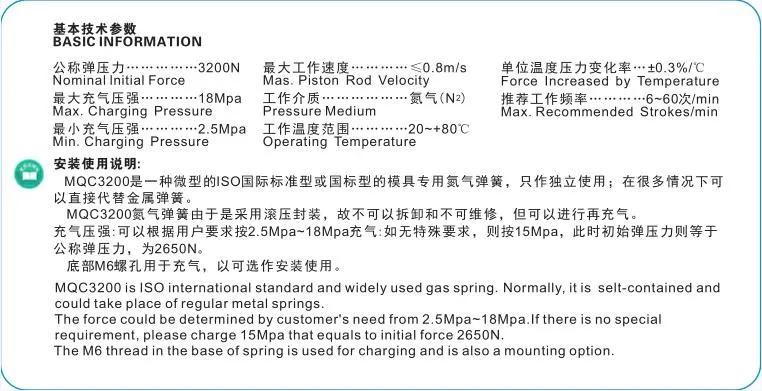

• Inspection：100% Before Shipment
• Max. Recommended Strokes/Min：6~60times,Min
• Force Increased by Temperature：±0.3%,ºC
• Operating Temperature：20~+80ºC
• Pressure Medium：N²
• Max. Piston Rod Velocity：≤0.8m,S
• Min. Charging Pressure：2.5MPa
• Max. Charging Pressure：15MPa

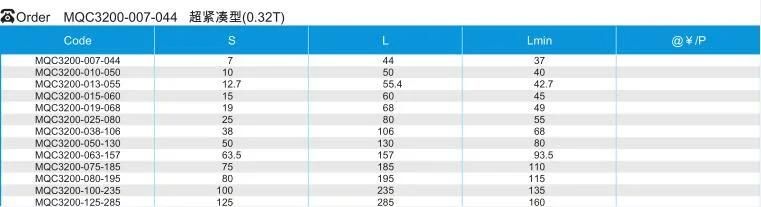

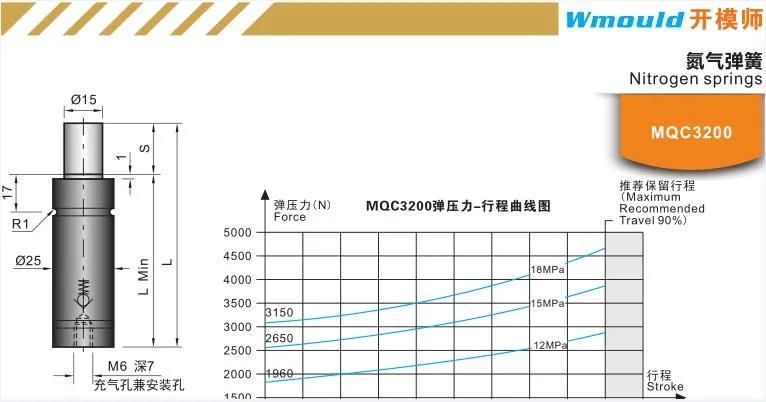

• Model NO.：MQC3200 Nitrogen springs
• Transport Package：Foam Bag , Bubble Bag , Carton Box , Wooden Case
• Trademark：Wmould Huazhi
• Origin：China
• Production Capacity：5000,Week

Basic Info.

Model NO. MQC3200 Nitrogen springs Max. Charging Pressure 15MPa Min. Charging Pressure 2.5MPa Max. Piston Rod Velocity ≤0.8m/S Pressure Medium N² Operating Temperature 20~+80ºC Force Increased by Temperature ±0.3%/ºC Max. Recommended Strokes/Min 6~60times/Min Inspection 100% Before Shipment Transport Package Foam Bag / Bubble Bag / Carton Box / Wooden Case Trademark Wmould Huazhi Origin China Production Capacity 5000/Week

Product Description



Wmould(DATONG PRECISION) is one of top mould components manufacturer in China, Established in 2002,leading mould components industry in China.

Wmould provides global JIS,DIN,AISI and so on standard mould parts,special custom-built mold components and solution for global plastic injection master.

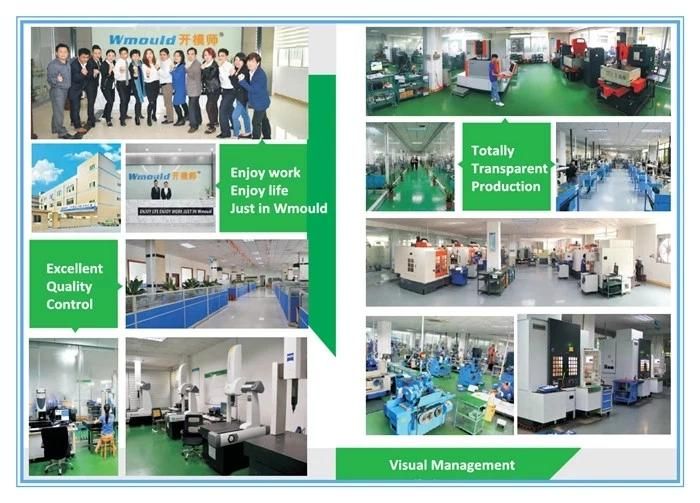

With more than 17 years of experience, 6 manufacturing plants over 500 employees ,a strong professional team in global STD mould parts market and a deep insight into customer's requirements, all this guarantee us high competition in the market and ensure the best service to our customer.

Earned more than 3000 global high quality manufacturers trust

Set up  point to point localization services in more than 30 countries
Our domestic customers located over 70 cities in China and have more than 30 agencies  in Shangdou,Jiangsu,Zhejiang,Xiamen,Guangzhou,Fushan.......
Our stock inventory over 1000  types and the delivery time within 24 hours.

Product series

Guide pins & guide bushes

guide pin ; guide bush ; angle guide pin ; steel ball guide bush

Gate series

sprue bush ; locating ring ; cashew gate insert ; runner lock pin ; runner lock pin bush

Date stamps & air valves

date insert ; air valve; air spigot

Latch lock series

parting lock screws ; tension link ; latch lock

Slide retainers series

slide retainer series ; slide retainer

Ejector pins and sleeves

ejector pins ; ejector pins with groove ; stepped ejector pins ; flat ejector pins ; ejector sleeves ; middle shoulder stepped ejector pins ; core pins ; slide pins

Ejector series

two-stage ejector ; ejector institutions ; accelerated ejector ; round latch locks ; core pin ; slide units ; wear plate ; slide core units ; sprung core ; collapsible core

Locating series

square interlock; round locating units

Guide strips & Wear plates

guide strips ; guide rail; wear plate; inclined wedge active block; guide strips

Springs series

springs; nitrogen springs; mounting bracket

Mold accessories

mold counter; limit switch; tool safety devices; shoulder bolt; stop pin; support pillar; secreating washer

Non-standard customerized precision parts

Base of moulds
