Factory Precision Metal Press Stamping Tool and Die for Air Conditioner
Zhongshan Huihai Mold & Automatic Equipment Co., Ltd.- Processing Method:Punching and Shearing Mould
- Material:Carbon Tool Steel
- Application:Household Appliances, Hardware, Home Use
- Technics:Drawing Die
- Process Combination:Single-Process Mould
- Manufacturing Technology:Computer Technology
Base Info
- Finish:Polishing, Heat Treatment, Td Coating, Plating etc
- Design Software:Auto CAD, Cae, PRO-E, Solidworks, Ug etc
- Tooling Material:Cr12, Cr12MOV, DC 53, Skh-9, 45# etc
- Model No:Hh058
- Customized:Customized
- Packing:Wooden Case
- Lead Time:30-60 Days
- Name:Precision Metal Press Stamping Tool and Die
- Parts Detection Method:Measurement of Three Axis NC
- Milling Speed:High Speed
- Mold Cavity Technology:CNC Milling
- Driving Motor Type:Permanent Magnet
- Model NO.:HH058
- Tolerance:+-0.03mm
- Die Life:500,000 Shots
- Transport Package:Wooden Case
- Specification:SGS, ISO
- Trademark:huihai auto
- Origin:China
- HS Code:8207209000
- Production Capacity:400 Sets ,Year
Description
Basic Info.
Model NO. HH058 Driving Motor Type Permanent Magnet Mold Cavity Technology CNC Milling Milling Speed High Speed Parts Detection Method Measurement of Three Axis NC Name Precision Metal Press Stamping Tool and Die Lead Time 30-60 Days Packing Wooden Case Customized Customized Model No Hh058 Tooling Material Cr12, Cr12MOV, DC 53, Skh-9, 45# etc Design Software Auto CAD, Cae, PRO-E, Solidworks, Ug etc Finish Polishing, Heat Treatment, Td Coating, Plating etc Tolerance +-0.03mm Die Life 500,000 Shots Transport Package Wooden Case Specification SGS, ISO Trademark huihai auto Origin China HS Code 8207209000 Production Capacity 400 Sets /YearProduct Description

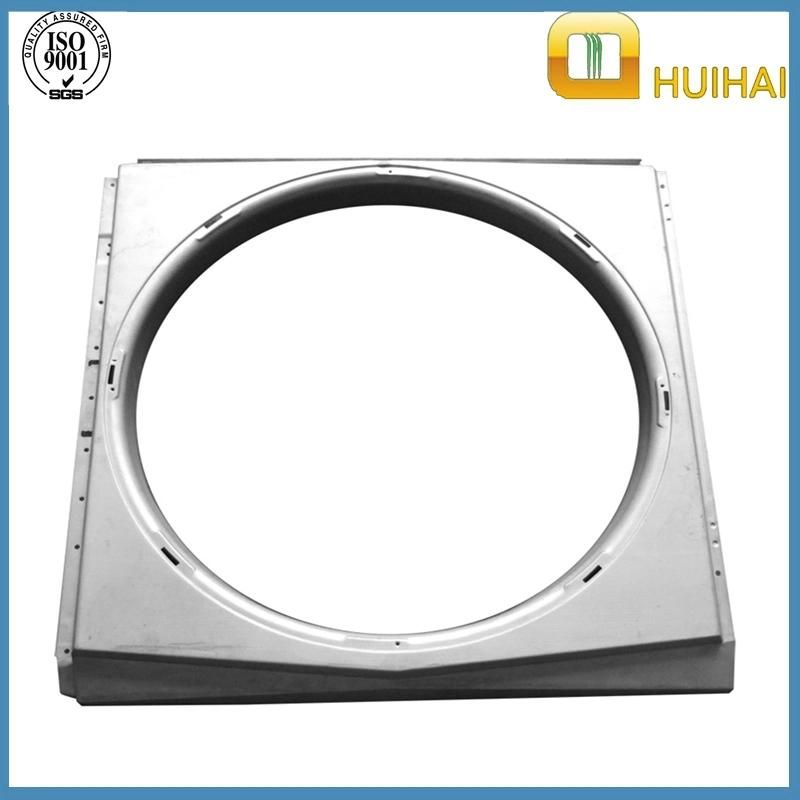

Factory Precision Metal press stamping tool and die
Huihai auto has manufactured precision, high-quality, reliable and cost-effective single stamping dies and metal progressive stamping dies for the automotive and home appliance for more than ten years. Our precision metal stamping die and progressive stamping die make your productivity, quality, design and economy as our important consideration. We can design and manufacture the simple or complex stamping dies or moulds fitting your exact applications.
Product Details:
Item Name: Factory Precision Metal press stamping tool and die
Mould Type: single stamping dies, progressive dies
Mould Design software: 2/3 D, Auto CAD, CAE, PRO-E, Solidworks, UG, Catia, MOLDFLOW, ANYCASTING
Mould Material: cr12, cr12mov, Dc 53, SKH-9, 45# etc
Stamping material: stainless steel, aluminum alloy, brass, zinc, carbon steel, copper etc.
Die standard: HASCO, DME
Cavity: 1,2, 5,16,50….depends on your application
Die life: 500,000 shots
Application: home appliance, electronic hardware, auto parts, hardware
Lead Time: 30 to 60 days
Certificate: ISO9001:2008, SGS
Finish: polishing, heat treatment, TD coating, electroplating, chrome coated, painting, zinc-plating etc
Equipments: CNC machining center, EDM, WEDM, WEDM-HS, linear cutting machine, radial drill, sawing machine, grinding machine, milling machine, lathe, punch, CMM, Rockwell-hardness-tester, projector, Dial Calipers, slide Calipers etc

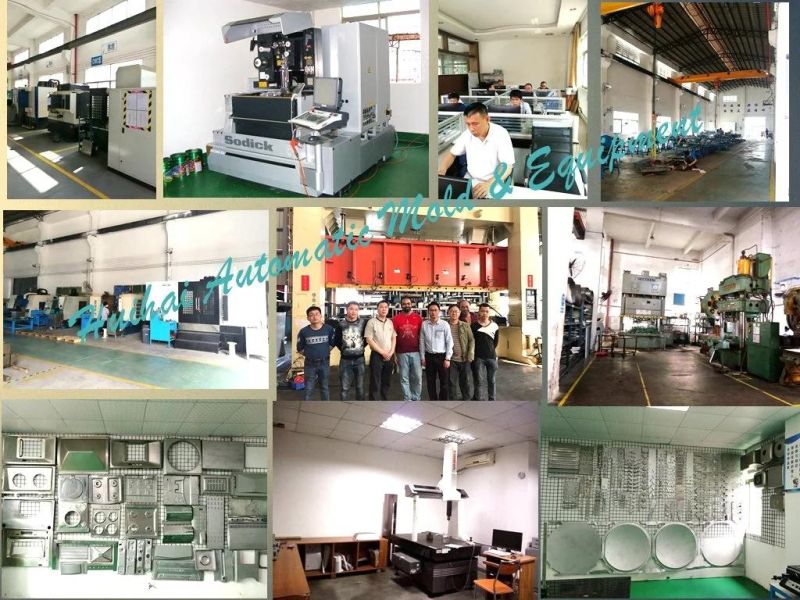

Processing Equipments
Machine Equipment | QTY | Tapping center | 1 |
CNC | 5 | Plate shears | 1 |
WEDM | 2 | Mechanical Press | 13 |
WEDM-HS | 2 | Hydraulic Press | 2 |
EDM | 3 | Inspection Equipment | Qty |
Radial drill | 8 | CMM | 1 |
Sawing machine | 1 | projector | 1 |
Grinding machine | 4 | Rockwell-hardness-tester | 1 |
Milling machine | 2 | Dial Calipers(0-300mm) | 8 |
Bench drill | 4 | Slide Calipers(0-1000) | 6 |
lathe | 2 | Pound scale | 1 |

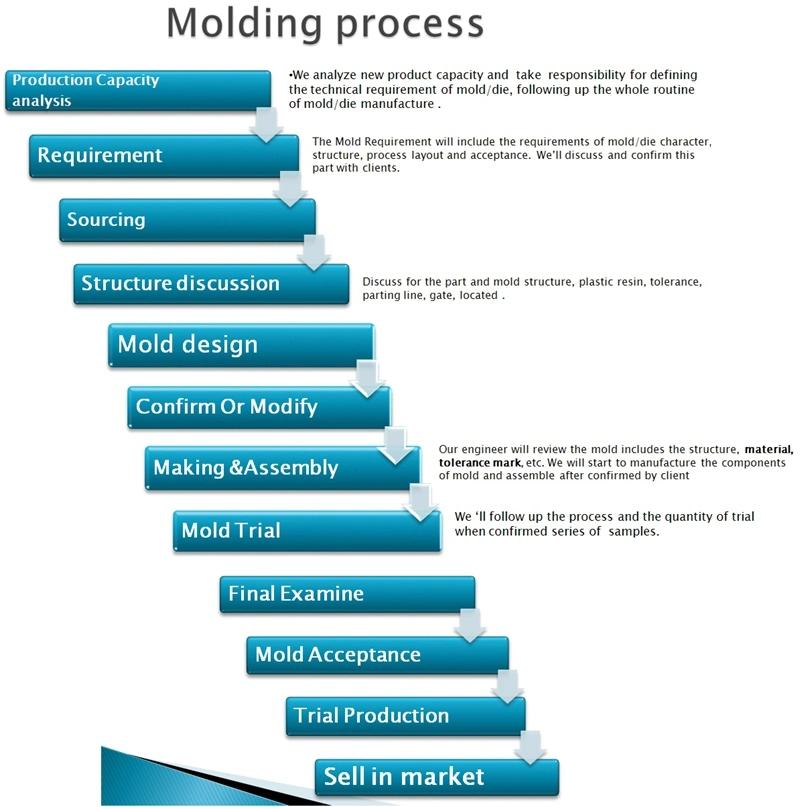

Project process layout
To control the production time, and to decline the probability of clam & return from the end users, making a accurate mold is very important start , we have completed molding produced process to fulfill the needs of client.
Time Control
- Understanding and controlling the factors of any mold making process is the key to fulfill project control, we use computer analysis and specialized division to take care of controlling mold component unit and predicting work hour.
- The Parts we'll take into consideration
Overseas Clients:
WELCOME TO ENQUIRE AND TAKE MORE...
