Making Iron/Galvanized Rectangle Pipe Mould

Foshan Gaoming Yongshunfa Building Materials Co., Ltd.
  • Tolerance Ranges:+0.04mm
  • Material:Cr12MOV,SKD11
  • Specification(mm):F10 X 20-F250 X 100mm
  • Name:Rectangle Tube Molds
  • Brand:Yongjian
  • Hardness Ranges:60-63HRC

Base Info

  • Trademark:YJ
  • Specification:Cr12MoV,SKD11
  • Transport Package:by Packing
  • Thickness:1.0-5.0mm
  • Range:76-168mm
  • Scope of Application:Pipe-Maling Machine
  • Model NO.:YJ-80
  • Origin:China
  • HS Code:8401200000
  • Production Capacity:20sets,Month


Brand:YONGJIAN MACHINERYProduct:YJ-60 Cr12Mov SKD11 D2 Pipe Roller Tube Moulds for Stainless Steel Tube Making MachineColor:BlackVoltage:220/380/415/440VUseful time:10 YearsWarranty Time:1 year, quality assuranceAfter-Sales Service Provide:Engineers available to service machinery overseas
Mold Processing

Rolls Material (Cr12MoV Raw Material)→Roughing Process→Drilling Holes→CNC Machining→Polishing→Typing Code→Heat Treatment→Grinding Inside Hole→Drilling Keyslot→Drilling for Bearing→Finished Product Inspection→Checking→Warehouse

Making Iron/Galvanized Rectangle Pipe Mould

 we can also design and produce according to customer requirements.
Pipe TypeSpecification(mm)Tolerance Ranges(±mm)HardnessMaterial
Round Tube5-325Roundness±0.05HRC60-63Cr12Mov,SKD11,D2
Square TubeF10×10-F300×300 Flatness±0.04HRC60-63Cr12Mov,SKD11,D2
Rectangle TubeF10×20-F250×100 Flatness±0.04HRC60-63Cr12Mov,SKD11,D2

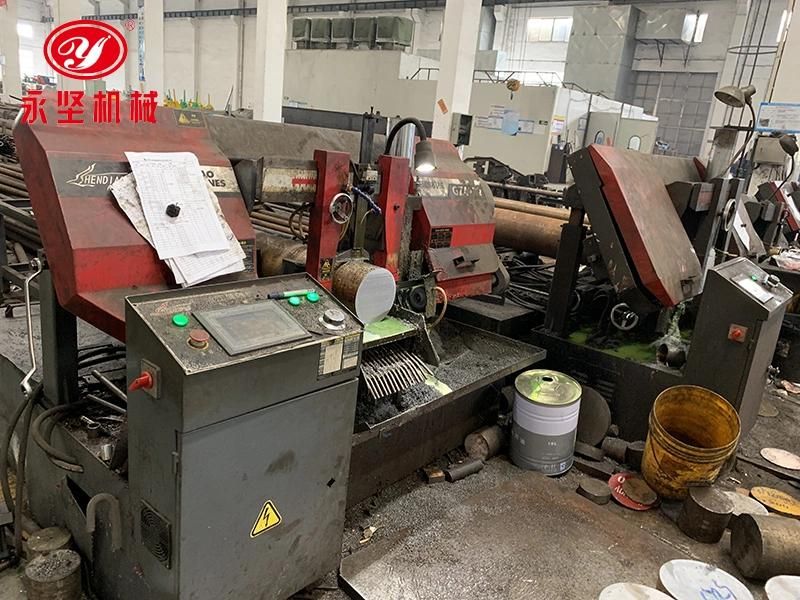

Cutting material
Making Iron/Galvanized Rectangle Pipe Mould

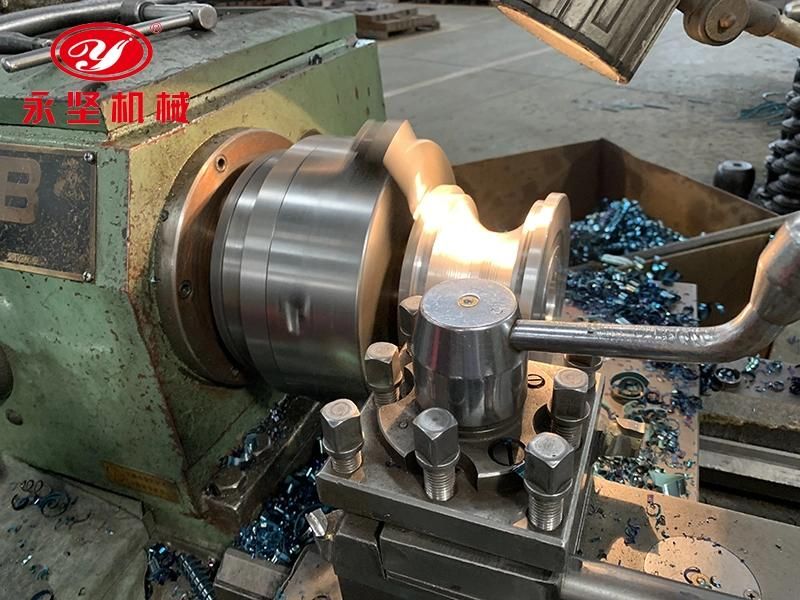

Rough Machining
Making Iron/Galvanized Rectangle Pipe Mould
Precision Drilling
Making Iron/Galvanized Rectangle Pipe Mould

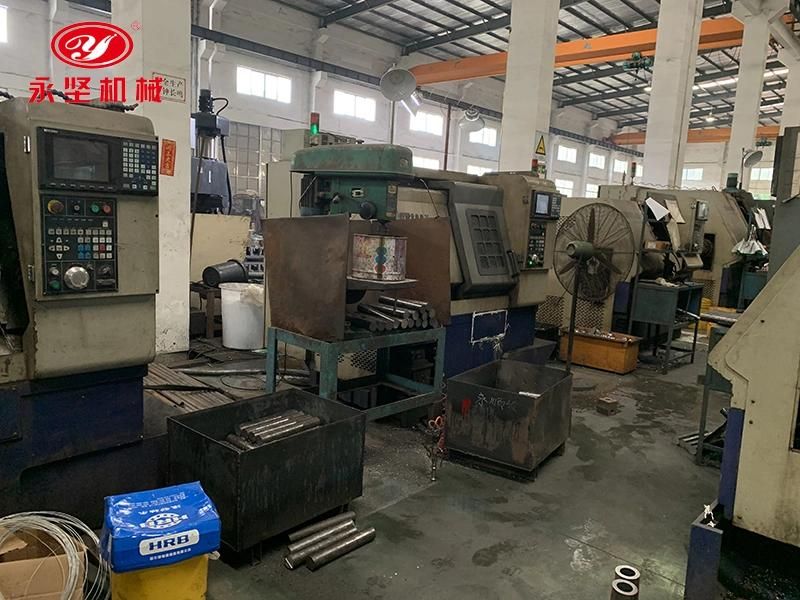

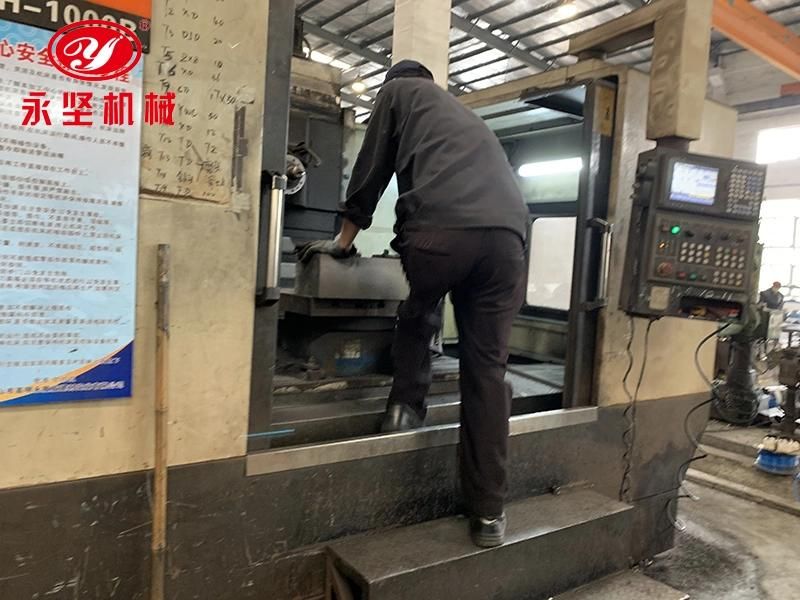

CNC Machining
Making Iron/Galvanized Rectangle Pipe Mould
Heat Treatment
Making Iron/Galvanized Rectangle Pipe Mould
Grinding Inside Hole

Making Iron/Galvanized Rectangle Pipe Mould

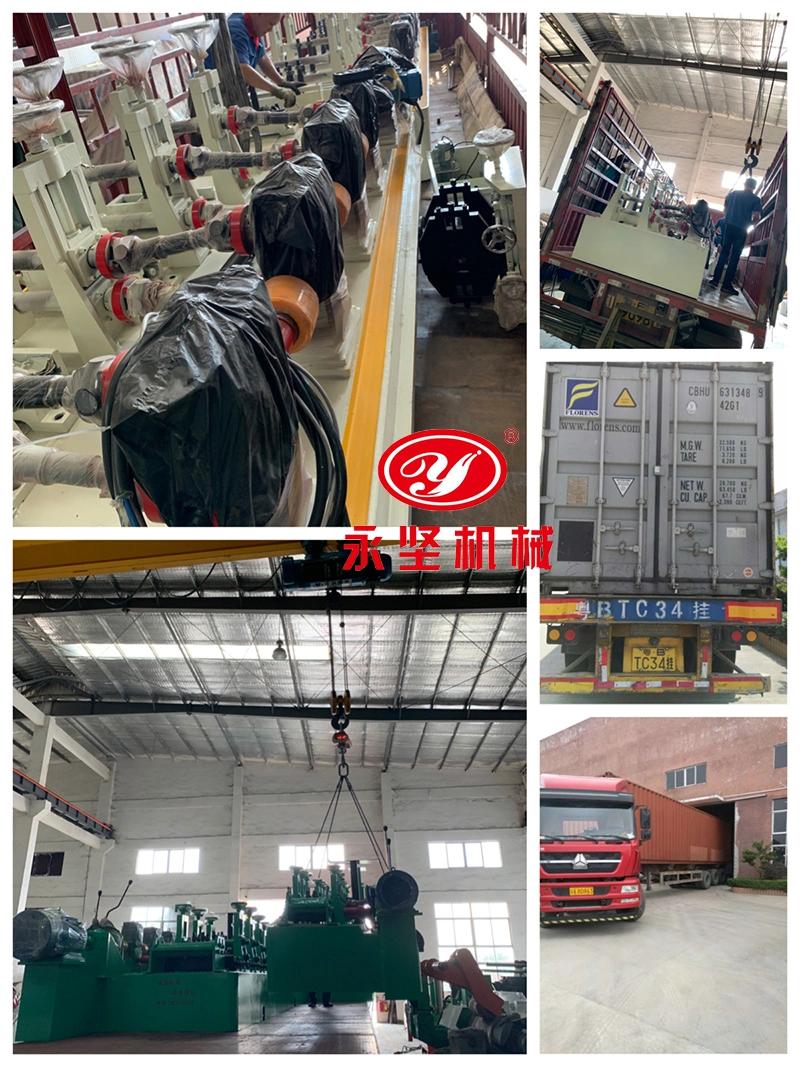

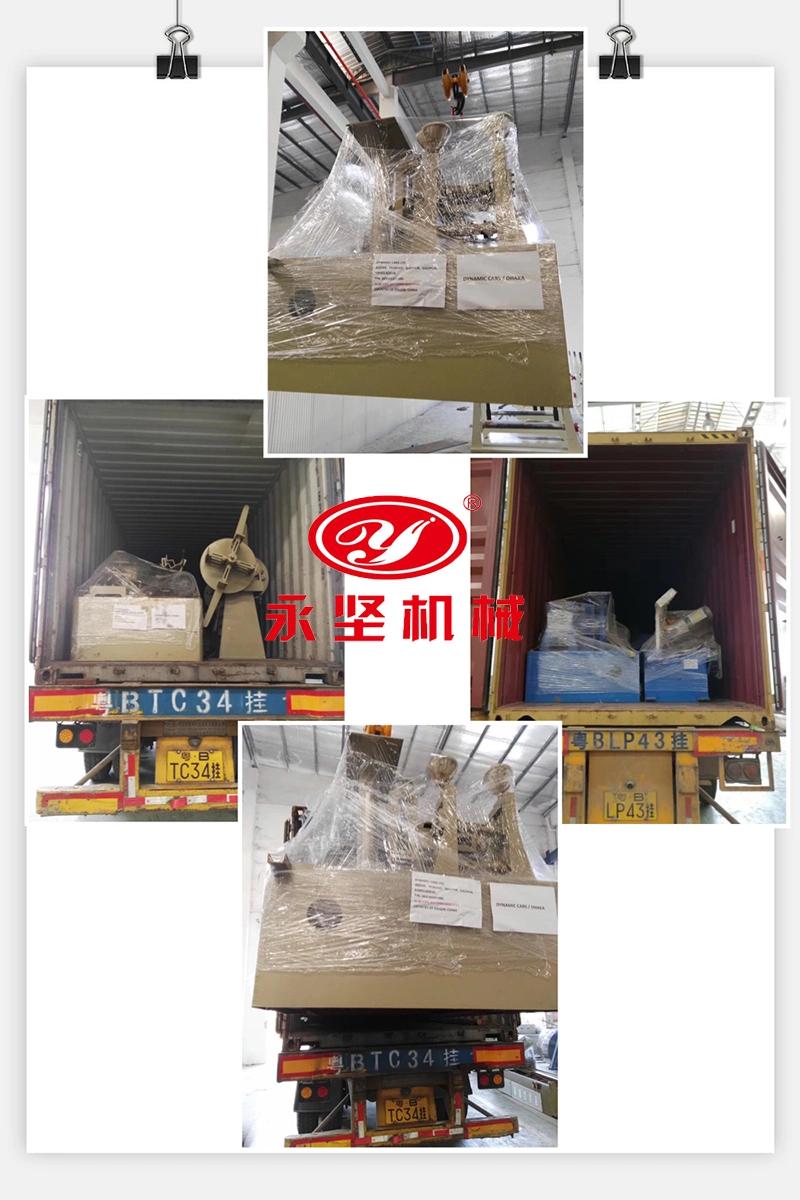

Packing & Shipping

Tube Roller Packing :

1. Rust proof oil should be added to the export tube roller mould before removing the stains.
  2. Packing in wooden boxes, lined with paper and cloth , to avoid bruising ,then use shockproof membrane.
  3. The most outboard wooden packing , all the goods shipped by sea require fumigation wooden boxes.

Making Iron/Galvanized Rectangle Pipe Mould
Making Iron/Galvanized Rectangle Pipe Mould
Making Iron/Galvanized Rectangle Pipe Mould
Participate in the Exhibition

Making Iron/Galvanized Rectangle Pipe Mould

Intergrated services:

  1. Provide customers with a reasonable investment plan, filter the appropriate models recommended       to customers.
  2. Free equipment drawings, customer plant equipment planning drawings.
  3. Provide the base map required for installation free of charge.
  4. Provide equipment installation and commissioning until the buyer operates normally.
  5. Provide professional technical training, as soon as possible to allow the buyer's operator to master       the operation and use of the equipment.
  6. Provide and coordinate auxiliary equipment, accessories, and consumables.
  7. The warranty period is one year, except man-damage.If you have any question in operation in         operating the machines, you can call us or send emails, we will solve the problem for you asap.

Other popular products

  Foshan Yuanyongjian Pipe Making Mold&Machinery Co., Ltd. is a professional manufacturer of stainless steel welded pipe molds, welded pipe machinery, high frequency pipe welding machine and stainless steel pipe machine, polishing machine, composite pipe machine, online bright solution annealing equipment and other ancillary equipment. Manufacturer of stainless steel production lines. Advanced production equipment, strong technical force, modern management system The company has the ability to independently design and develop various new products, and the equipment is sold all over the country.


Q: Do you had building an independent factory?
 A: We have our own factory.Our company is based on the original factory and birth out the professional sales  company.

Q: What kind of services can you give us?
 A:1. Pre-sale can be targetd to give some constructive comments.
     2. Develop a specific plan for your needs.
     3.After-sales reference to specific products, different with different service. Refer to the specific     product description.

Q: What is the main feature of your factory molds?
 A: Durable, over all hardness 61-63HRC utilizing numerical-controlled system processing for high precision square pipe,shaped face,sharp angle, surface polishing can achieve mirror effect.The products made with our molds can achieve good feel of round pipe with roundness with in ±0.05mm, and square pipe plane,subtense angle not exceeding ±0.05mm.

Q: Is there any other equipment buyer need to purchase?
 A: Buyer need to purchase some spare parts such as bearing, magnet bars for welding, saw blades for cutting,  which is necessary in the later production. Buyer also need to purchase eletric wires for connection, water  pump for recycling water and material for making machine foundation, etc. We can also provide buyers with  everything if buyer want one-stop service.

Q: What is the difference between you and other Chinese suppliers? What is the advantage?
 A:1. We are sale enterprise, but we have our own factory. Products quality can be promise.
     2. We can feedback the process at any time, making you to stay at home will be able to clear in the heart.
     3.We have 20 years technology experience.
     4. If conditions permitting, we can provide the appropiate services at any time.

Q: If we provide parameter requirement, can be customized?
 A: We provide the corresponding customized services, as long as you provide the appropriate drawings and product requirements can be fine.

Q: How long about your delivery time? Can be delivered on time?
 A: Our leading time varies according to order quantity, at usually is 30-45 days (within 10 sets decorative pipe making machine) ; 45-60 days (within 10 sets industrial pipe making machine).
