32 Cavities 1.2344 Injection Mold of Plastic Parts for Bracket Medical
Dongguan Howe Precision Mold Co., Ltd.- Application：Car, Household Appliances, Furniture, Commodity, Electronic, Home Use, Hardware
- Process Combination Type：Single-Process Mode
- Plastic Material：PP, HDPE
- Mould Cavity：Multi Cavity
- Shaping Mode：Injection Mould
- Surface Finish Process：Polishing
Base Info
- Mould Precision：+,-0.01mm
- Steel Treatment：Heat Treatment, Nitriding, Chrome Plating
- Mold Life：500,000 Shots - 2,000,000 Shots
- Ejection System：Stripper Plate, Lifter, Push Bar, Ejection Pin, Et
- Mold Gate：Fan Gate, Sub Gate, Pinpoint Gate, Valve
- Hardness of Steel：46~56HRC
- Core and Cavity Material：DIN2312, 2738, 2344, 718h, S136h, 8407, Nak80, SKD
- Customized：Customized
- Standard：DME
- Certification：CE, ISO
- Installation：Semi Fixed
- Design Software：Ug, Autocad, PRO-E
- Runner：Cold Runner
- Model NO.：HW-201111-3
- Transport Package：Wooden Cases,Air,Sea
- Specification：According to customers′ drawings
- Trademark：OEM
- Origin：Dongguan, China
- HS Code：8480719090
- Production Capacity：50 Sets,Month
Description
Process of making moulds1.Sample/Drawing After receiving your detail information like 2D & 3D drawings or sample for reference, will pass to the R&D team to do Moldflow analysis. 2.Negotiation Material, cavity, price, delivery time, payment term etc. 3.Place Order when all terms are agreed by both sides, then we will accept an order. 4.Mould Design Our R&D team will design the mould per customer requirements and send drawings for approval. 5.Tooling Mould Once the mould design is approved will start mould tooling. 6.Mould Process CNC grinding and milling, Heat Treatment, Wire Cut, Polish, Tool assembling and testing etc. Our good QC system can guarantee the product quality. 7.Sample Confirmation Send samples for confirmation, if not approved we will adjust the mould structure. 8.Mass Production After the customer approves the sample, we will arrange mass production. QC will inspect after products finished. 9.Package PE film for plastic parts, wooden case for moulds or as customer's requirement. QC will inspect packing. 10.Delivery By sea or by air according to customer requirements. 11.After-sales Service Ready to help customers solve any possible problems.
Company profile
Our team

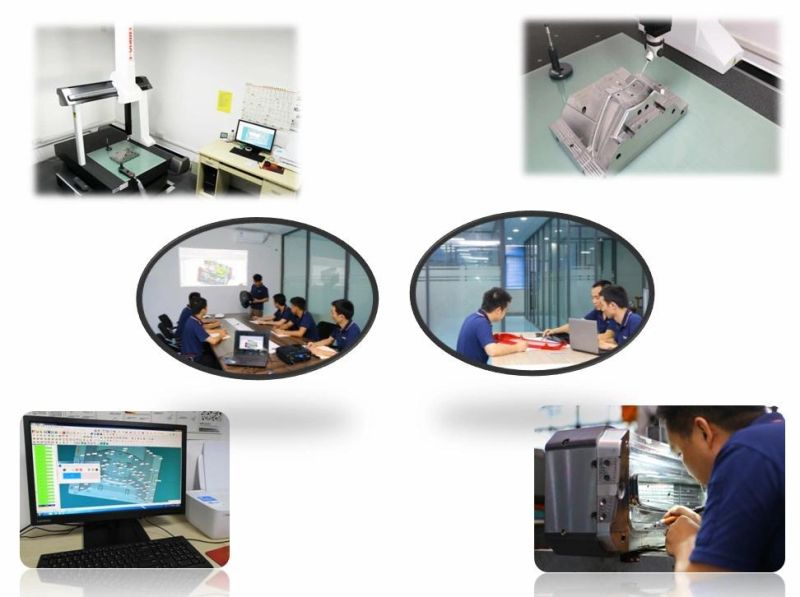

Quality Control

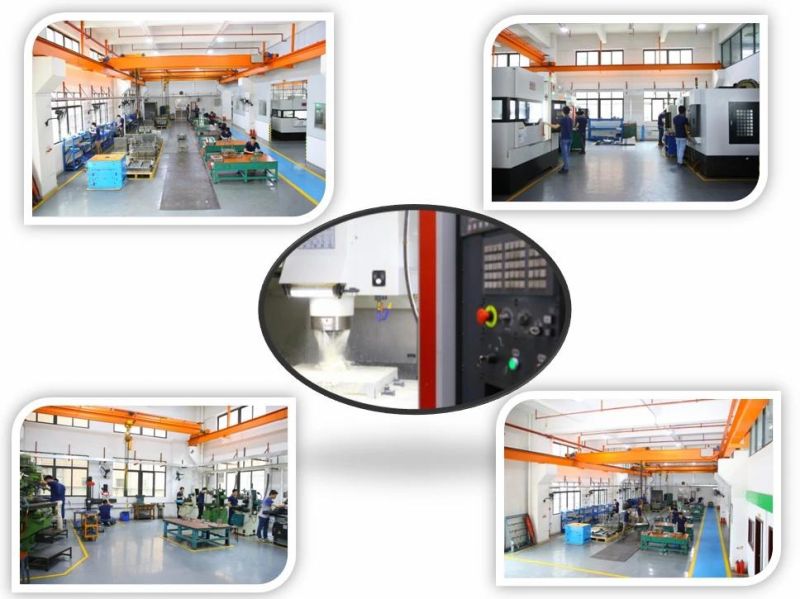

Our workshop
Our Services

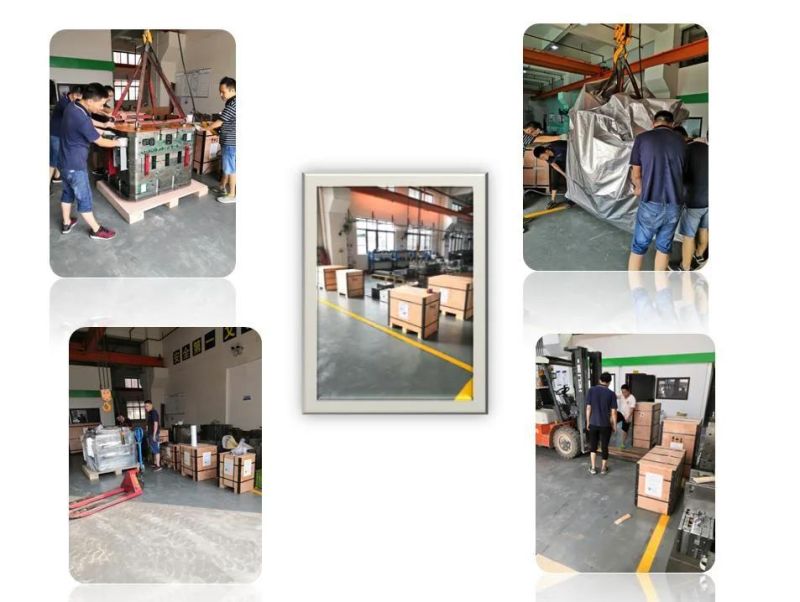

Packaging detail
Customer Visit
FAQ
Q: Can you accept OEM service?
A: Yes, we are warmly welcome OEM service. Just send your 2D&3D drawing or golden sample with quality demand (such as material, surface treatment, color, and package) to us.
Q: What is the drawing format you needed?
A: Prefer to STP, DXF for 2D&3D drawing, and PDF, AI, CDR, JPG for artwork design.
Q: What is your MOQ?
A: Usually our MOQ is 1000pcs, but we accept lower volume for your trial order.
Q: Can I get samples?
A: Sure, we usually provide a free store sample to you for quality checking. 1~2days can delivery. But there is a little sample fee that would be charged if you request your OEM samples, and it is refundable when your order is up to a certain quantity. 3~5days can delivery.
Q: How much is the freight charge?
A: To save money and time, we suggest to deliver by express for small quantity, and deliver by sea for large quantity. At the same time, we can get a big discount from a shipping company.
Q: Do you have a quality guarantee?
A: Yes. We have a QC department and 100% inspection before shipping, to ensure the CNC parts is NO visual defects, a traceable quality record for the product shipped from us, and if any fault is found, we commit to send a replacement at our cost, or any other more suitable solution depends on discussion with our customers.
