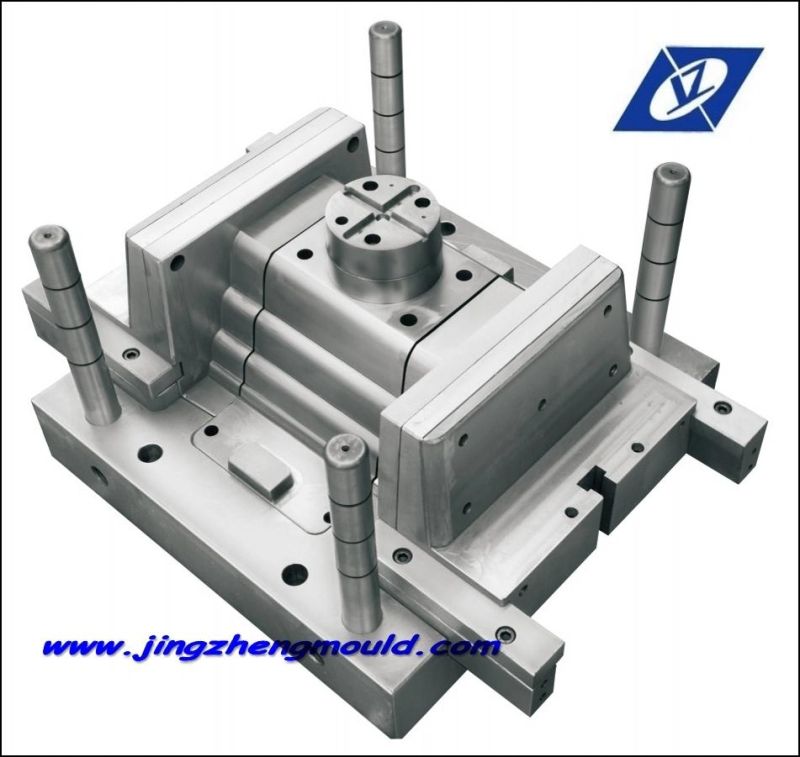

PPR Female Elbow Pipe Fitting Mould
Zhejiang Taizhou Huangyan Jingzheng Mould Co., Ltd.- Process Combination Type:Compound Die
- Plastic Material:PPR
- Mould Cavity:Multi Cavity
- Surface Finish Process:Polishing
- Shaping Mode:Injection Mould
- Application:Household Appliances
Base Info
- Specification:ISO 9001: 2000
- Transport Package:Wooden Case
- Size:20-110mm
- Customized:Customized
- Standard:HASCO
- Installation:Fixed
- Design Software:AutoCAD
- Runner:Cold Runner
- Trademark:JZ
- Origin:Zhejiang
- HS Code:8480719090
- Production Capacity:100 Sets,Month
Description
Basic Info.
Runner Cold Runner Design Software AutoCAD Installation Fixed Standard HASCO Customized Customized Size 20-110mm Transport Package Wooden Case Specification ISO 9001: 2000 Trademark JZ Origin Zhejiang HS Code 8480719090 Production Capacity 100 Sets/MonthProduct Description
ISO certificated pipe fitting mouldHigh quality with reasonable price, by using Chinese, Korean, Japan, Germany Standard to make moulds, the products' dimension range from 25mm to as big as 630 mm.
Name | PPR female elbow mould |
Plastic material | PPR |
Steel of Cavity & Core | DIN 1.2738/DIN 1.2344 |
Steel of Mouldbase | S50C. LkM standard^ etc |
Nos of Cavity | Customized |
Hardness of Cavity & Core | 48-52HRC |
Hardness of Wear Parts | 55-60HRC |
Core pulling system | Motor /oil cylinder/ stripping plate, angel pin^ etc |
Mould Accessories | DME/HASCO Standard |
Cooling system | In core baffle cooling and in cavity plate chain drilling type cooling |
Surface finish | Diamond polish |
Molding life | 1.200, 000shots |
Runner | Cold or Hot |
Delivery time | 75work days |
Packing | wooden case |
Payment | T/T L/C |
