• Specification：0.0007"-0.059"
• Transport Package：Carton
• Cases：28X12, 25X6,28X10
• Customized：Customized
• Warranty：1 Year
• Application：Wires
• Surface Treatment：Polish
• Model NO.：0.0007"-0.059"
• Trademark：HG
• Origin：China
• HS Code：8207201000
• Production Capacity：150000pieces,Year

Size(inch)Size(mm)Tolerance(mm)Roundness(mm)≤0.0039≤0.1000.0010.00050.00398~0.00790.101~0.2000.0010.00050.00791~0.01970.201~0.5000.0020.00100.01972~0.03940.501~1.0000.0030.00150.03941~0.05901.001~1.5000.0050.00250.0591~0.078701.501~2.0000.0070.0035≥0.0788≥2.0010.0100.0050
3. Inner Geometry

Inner geometry of natural diamond dies combined with "Entrance,approaching,reduction,bearing length and exit part".
a. Entrance: For wire entering,prevent the dies from wire hurting.
b. Approaching: Make the wire to be accessible for lubricant.
c. Reduction : The wire begins to transform from original diameter to smaller diameter.
d. Bearing: The wire achieves to the final diameter.
e. Back Relief: Prevent the final wire surface from scratching.
f.  Exit: Wire exiting.

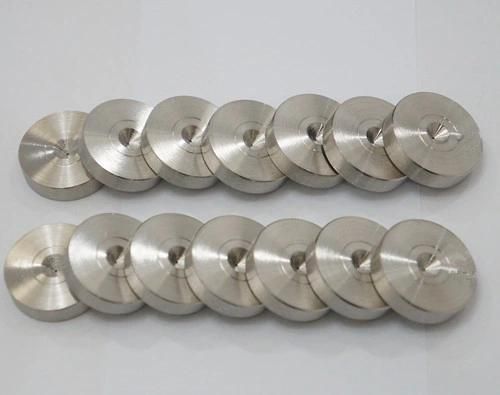

4. Diamond Dies for Wire and Cables

5.Features of HG Diamond Dies

23 years' experience in die manufacturing industry
Advanced manufacturing and inspecting machines
Imported natural diamonds with high quality
Imported sintering powder wtih high reinforcement
100% inspected by,high accuracy,conformity,stability
High work efficiency
Long life time
