• Transport Package：Plywood Case
• After-sales Service：Engineering Available to Service Machinery Oversea
• Standard：HASCO
• Customized：Customized
• Certification：SGS
• Design Software：AutoCAD
• Runner：Cold Runner
• Model NO.：HC-MI01
• Specification：stainless steel
• Trademark：Huachuang
• Origin：China
• HS Code：8477900000

Basic Info.

Model NO. HC-MI01 Runner Cold Runner Design Software AutoCAD Certification SGS Standard HASCO Customized Customized After-sales Service Engineering Available to Service Machinery Oversea Transport Package Plywood Case Specification stainless steel Trademark Huachuang Origin China HS Code 8477900000

Product Description

The supply of PA66GF25 insulation strip extruding machine


Huachuang mould can meet the needs of the market and customer.
Huachuang has its own design and development of nylon insulation strip automatic extrusion production line with high stability, high yield, high adaptability.

Parameters of Molds

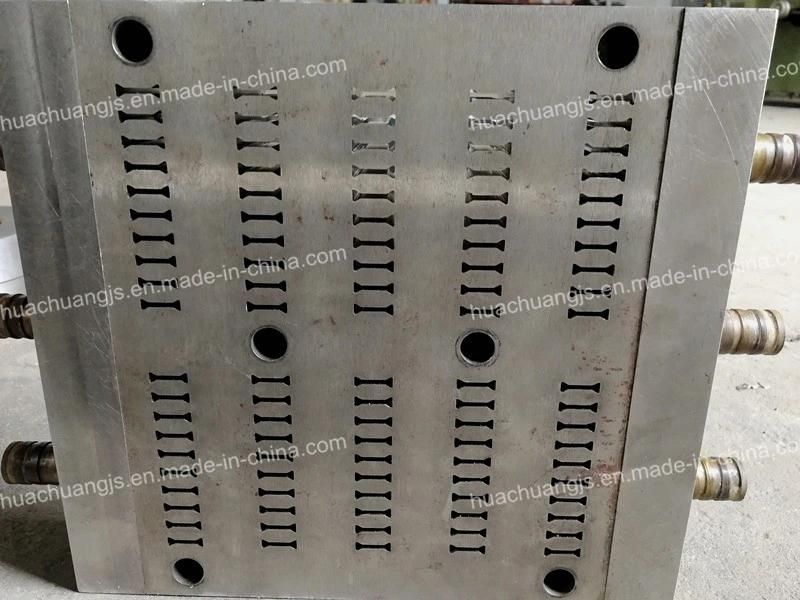

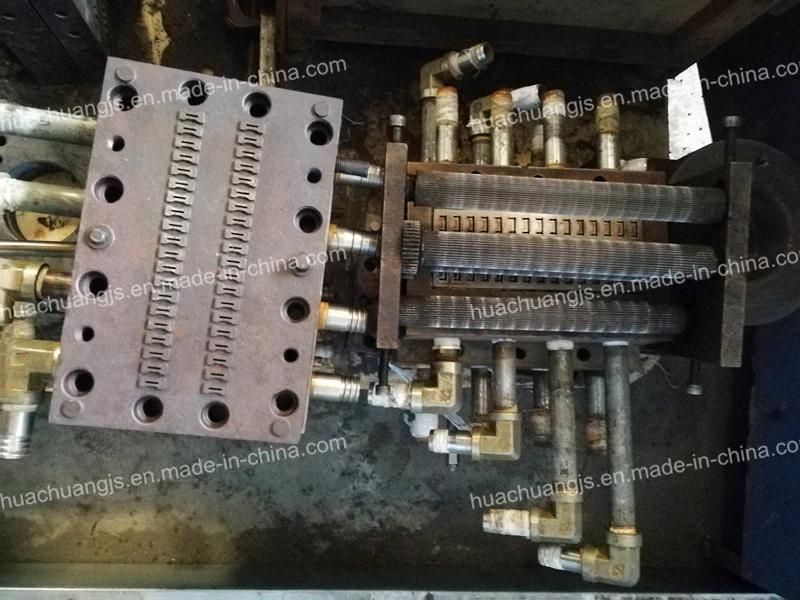

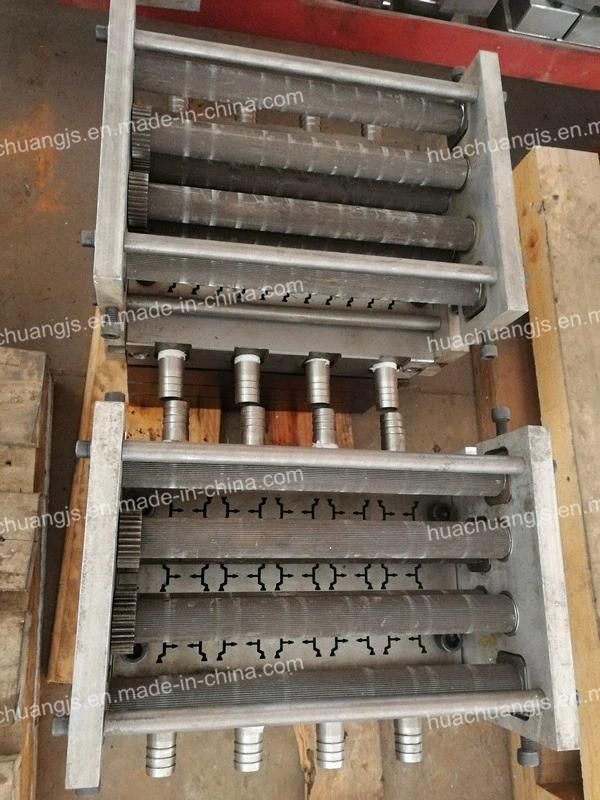

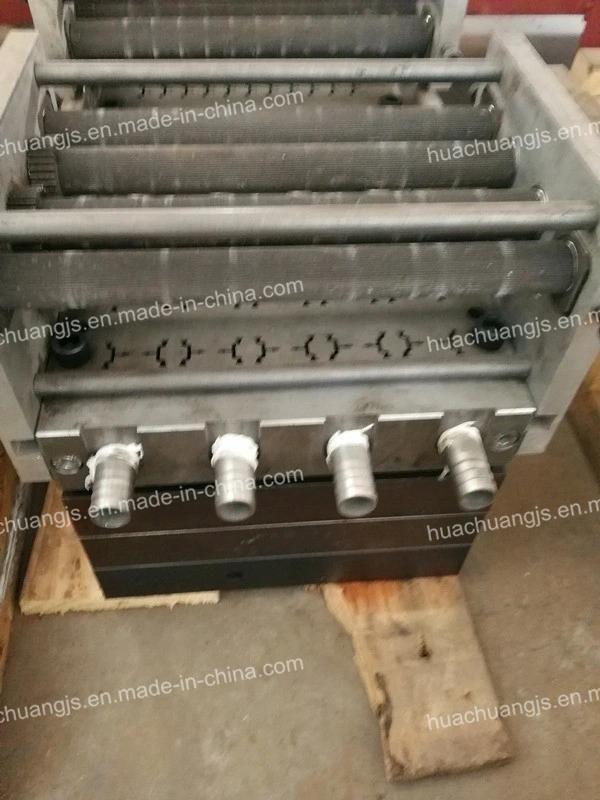

Product Name	Mold Used in Polyamide Profiles Extruder Machine
Material	stainless steel
Size	Customized
Plastic material	PA66+GF
Mold weight	50-140kg
Service	Provide complete set of production press and technology and best after sale service.
Packge	plywood case
Lead time	25~35 working days
Runner	Cold/Hot runner

The utility model mainly uses the special screw to make the polyamide and the glass fiber mixed good.
Heat insulating rubber strips are widely applied to the doors, windows and curtain wall aluminum sheets through the different sections of the die.








Detail introduction:
PA66 granules and fiber glass are dired and get into the barrel through the hopper. Screw and pellets contact with the rotation of the screw is forced to promote the spiral groove die direction.
Because the screw barrel gap is small, the granule material is hot body under great pressure in the forward process, it is plasticizied to nylon thermosol through the high temperature of the electric heating ring body. Nylon plastic and plastic compression heating hot melt by extrusion molding, after traction, cutting or rolling become adiabatic adhesive tape products.


The host adopts imported inverter and traction, speed stability, ensure the main, auxiliary synchronous speed.
We use German technology to make the mould, so the surface of thermal insulation strips are beautiful, accurate shape and with high strength.
We use imported Japanese RKC temperature control table, so that the accuracy of the temperature can be controled in ±2 degrees.




Our Advantages:
1. Our engineers follow the molds' production every week to make sure all of them are in schedule
2. After trial production, we will check the samples to make sure everything are right 3. We will send the sample and dimension report to our clients for approval
4. After everything is ok, we will do final inspection on the molds and products before shipment.


Shape: We can make the shape according to customers' requirements.

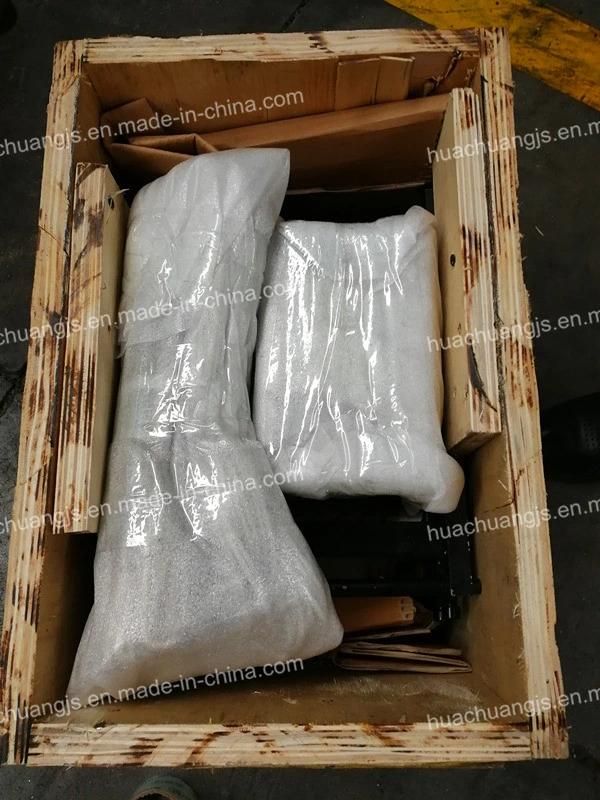

Package: Plywood case package





Please feel free to contact us if you have any questions.
Name: Lana Lou

Address: Jinfeng Town, Zhangjiagang City, Jiangsu Province, China
