• Specification：ISO9001: 2008
• Transport Package：Wooden Case
• Gas Spring：Kallar
• Spare Part：Misumi or Punch
• Tool Material：SKD11,Cr12MOV,45#
• Client：Toyota
• Certificate：ISO9001:2008
• Parts Detection Method：Geometric Detection
• Milling Speed：High Speed
• Mold Cavity Technology：EDM Milling
• Model NO.：HRD-Z31
• Trademark：Higrade
• Origin：Qingdao, China
• HS Code：8480410090
• Production Capacity：145 Sets

Basic Info.

Model NO. HRD-Z31 Mold Cavity Technology EDM Milling Milling Speed High Speed Parts Detection Method Geometric Detection Certificate ISO9001:2008 Client Toyota Tool Material SKD11,Cr12MOV,45# Spare Part Misumi or Punch Gas Spring Kallar Transport Package Wooden Case Specification ISO9001: 2008 Trademark Higrade Origin Qingdao, China HS Code 8480410090 Production Capacity 145 Sets

Product Description

{Product material}:SUS304,SPCC and so on
{Scope of application}:Automotive
{Die types}:Single process
{Mould Life}:50~100 shots
{Tolerances}:0.02mm

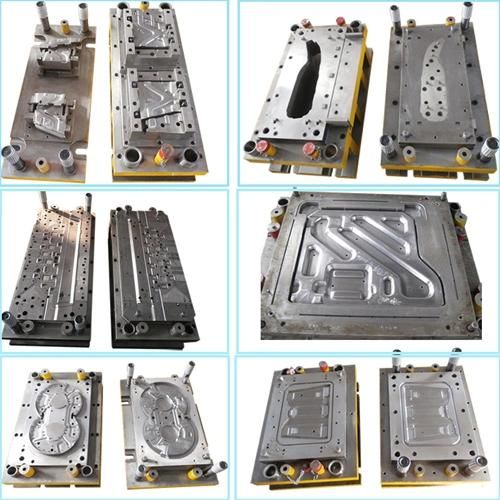

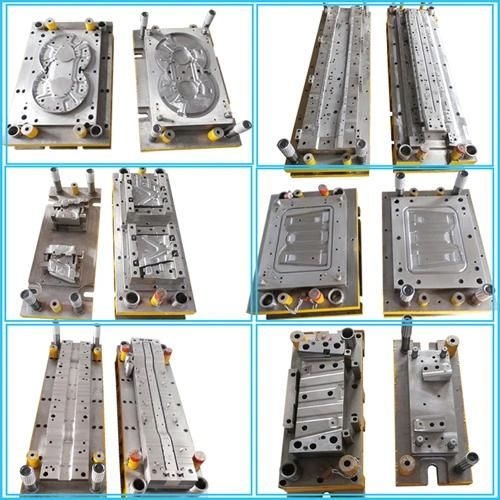

DIE:


{Processing Date}:35~45 days
{Spare parts}:PUNCH ,MISUMI and so on
{Equipment}:400T Punch
{Produce equipment}:315T Hydraulic machine/press,400T200T160T Punch (With the belt feeding machine),110T,80T,40T Punch equipment ,Can meet the need of mass production and testing.

{Service content}:Designing and manufacturing for metal mould and products.
{Main customers}:Haier, Hisense, Midea, Siemens, Sanyo, Electrolux, Toyota, KIA, Foton, SGMW, SKYWORTH etc.

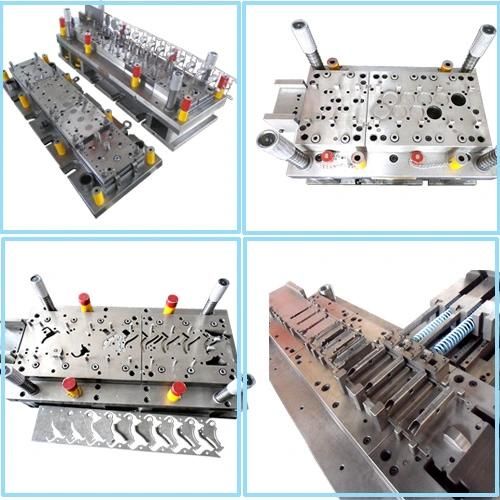

AUTO PARTS:

{Main export markets}:Japan, Korea, Thailand, Russia, Germany, Britain, Norway, Italy, Spain, Turkey; America, Brazil, Argentina;South Africa Egypt; Iran, Pakistan, India etc..
{Mold paint}: Painting color depends on customer requirements
(Packaging: wooden case)

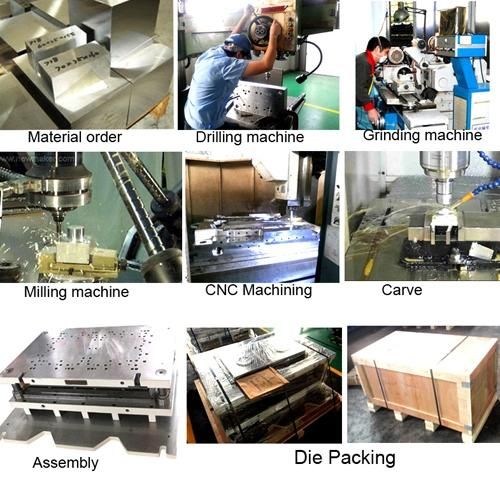

PRODUCTION PROCESS:


The first trial success rate is above 95%
{Quotation time}:we will quote in 24 hours after receiving the customer's drawings.
{Data needed to offer}: 2D/ 3D drawing or samples
{Quotation}:Including the accurate price/stage/life and process time.
{The profile}:2D/3D drawing or samples
{Project Manager}:Concentrate on project tracking and after service
{Engineer}:30-50 excellent engineers, have many years experience and English communicate well.
{Warehousing and logistics}:The purchase department use EPR system to make sure buying materials in time.
{Fitter technician}:100-130 experienced workers can meet the customer request of batch production.

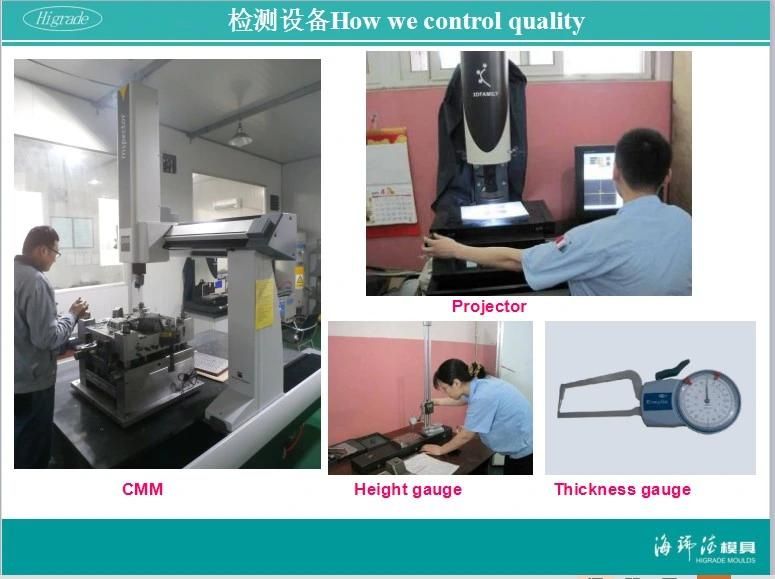

{Quality department}:15 members quality control workers, measuring the mould and parts by CMM and projector.
{Domestic delivery}:logistics transportation
{Delivery to overseas}:FOB/CIF/DDU by sea shipping or air shipping

Item	Description
Stamping die material	CR12MOV, SKD61, SKD11, SKH-9, 45# etc.
Standard	Punch, Misumi, Danly, Kaller, Fibro etc.
Drawing format	. igs, . stp, . x_t, . pdf, . dwg, . dxf,
Metal parts material	SPCC, SUS304, SECC, AL, CU, brass, iron etc.
Mould life	50, 000~500, 000 shots
First trial time	20~35 days after mould structure drawing confirmed



Step	Item	Description
1	Quotation	We offer you the stamping die and part quotation according to your details (drawing or sample, material, quantity, weight, and other special requirements).
2	Order	If our quotation is competitive, you will place the order.
3	Drawing design	We design the mould structure drawing according to your product drawing or sample, then send to you for confirmation.
4	Stamping die making	After your confirmation of our drawing, we begin to make the moulds, during manufacturing program, we send you mould building progress with pictures every week, for you to know our process.
5	First trial	We will make the mould first trial on time, then send you video, picture and samples for you to confirm the quality.
6	Quality confirm	You may confirm the mould quality according to sample, or you can come to our plant for checking and accepting the mould. If you need to adjust the product structure, we can help you change the mould further.
7	Delivery	Ship the mould after it is completely OK, packed by wooden case.
