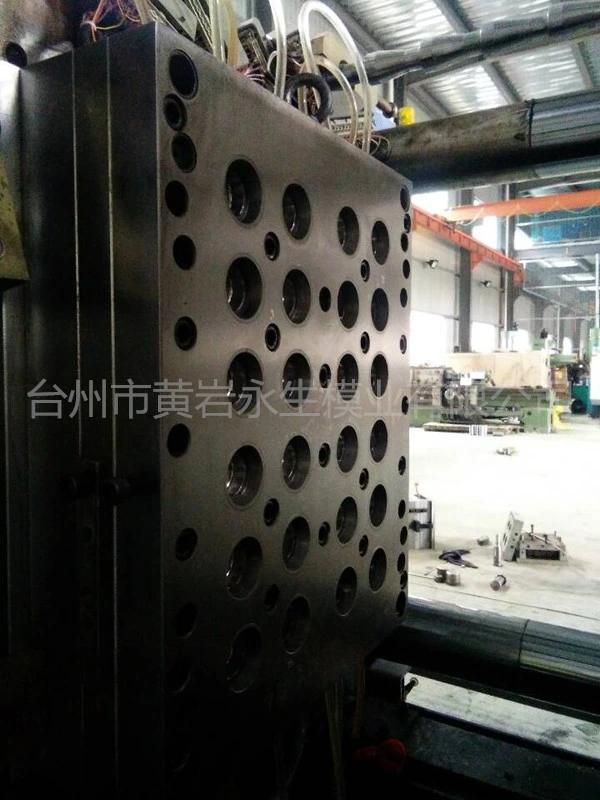

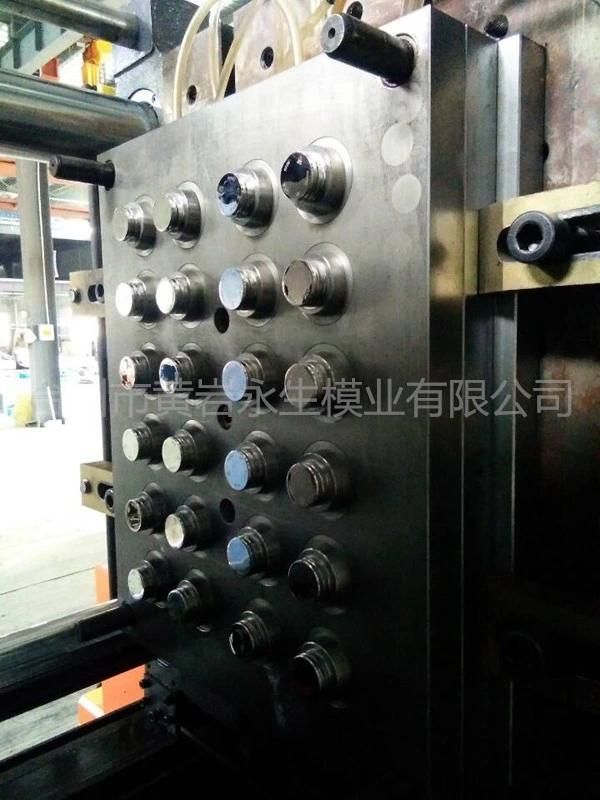

24 Cavities Hot Runner Plastic Injection Cap Mold
Taizhou Huangyan Yongsheng Mould Co., Ltd.- Process Combination Type:Single-Process Mode
- Plastic Material:PP , Pet , PVC , Pet
- Mould Cavity:Multi Cavity
- Surface Finish Process:Polishing
- Shaping Mode:Injection Mould
- Application:Household Appliances, Commodity, Home Use
Base Info
- Trademark:Yongsheng
- Specification:SGS
- Transport Package:Wooden Package
- Process:Computer
- Warranty:3, 000, 000 Times
- Polish:High Polish
- Mould Matieral:P20 S136 2316 #45 718
- Cavity:2,4,8,16,24,32
- Size:28mm,30mm,38mm,40mm,
- Customized:Customized
- Standard:HASCO
- Installation:Fixed
- Design Software:UG
- Runner:Hot Runner
- Model NO.:YS20170304666
- Origin:Tai Zhou China
- HS Code:8480719090
- Production Capacity:500sets,Year
Description
Basic Info.
Model NO. YS20170304666 Runner Hot Runner Design Software UG Installation Fixed Standard HASCO Customized Customized Size 28mm/30mm/38mm/40mm/ Cavity 2/4/8/16/24/32 Mould Matieral P20S1362316#45718 Polish High Polish Warranty 3, 000, 000 Times Process Computer Transport Package Wooden Package Specification SGS Trademark Yongsheng Origin Tai Zhou China HS Code 8480719090 Production Capacity 500sets/YearProduct Description
1) Saving 10%-30% cost than other factories.2) Life: 5, 000, 000 time.
3) 2D and 3D provided.
4) Diliver time: 25-35 days.

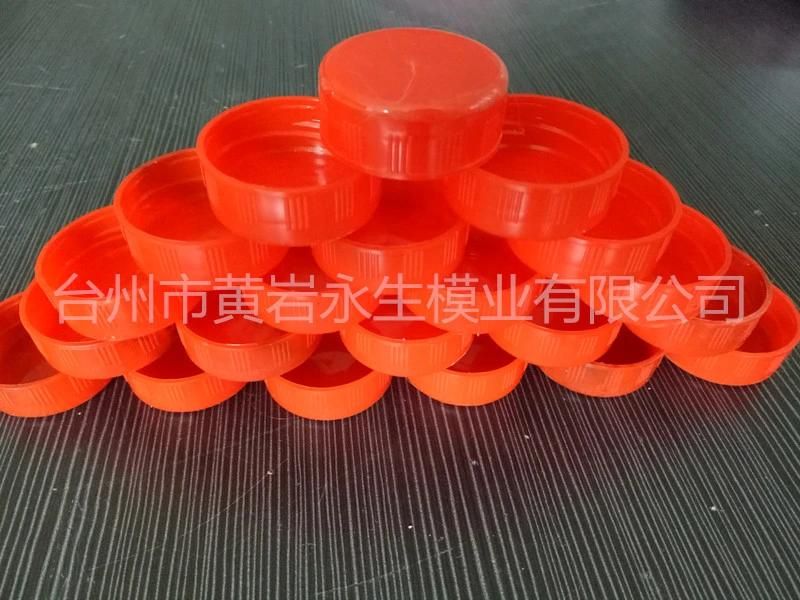

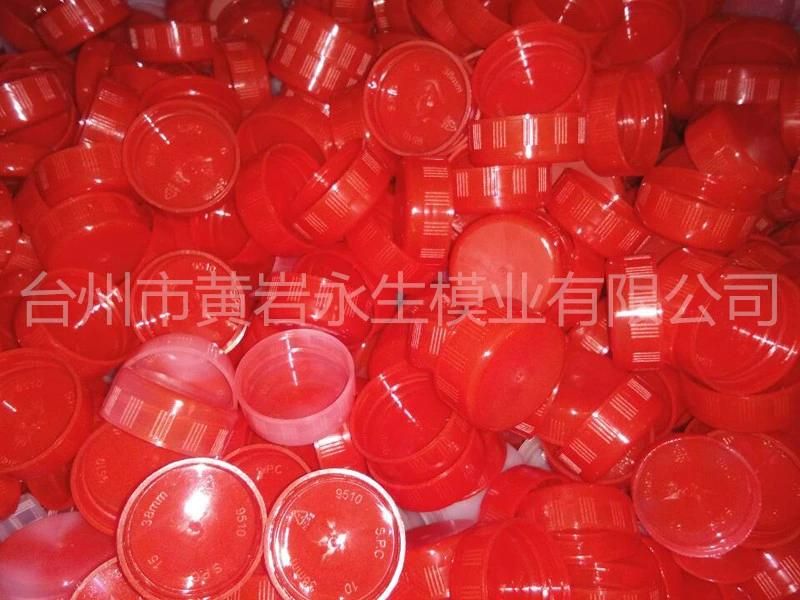

24 Cavities Hot Runner Plastic Injection Cap Mold
Flow chart:
Certification:
Mould details:
1. Design 3D drawing for customers' confirmation according to their 2D drawning or sample when placing to order.
2. Mould Matieral: Different grade: P20, S136, 2316, H13, #45etc.
3. High Technology: Advanced second-level taper positioning technology and slide- type independent self-locking, hence the concentricity of the product is guaranteed.
4. Independent temperature control & heating system
Which boasts an even heating temperature and keeps product with reliable and stable quality.
5. Cavity: Depend on your selection, 1, 2, 4, 8, 12, 18, 24, 36, 48...All inserts can be interchangable.
6. Product matieral: PE/PP/PVC/PET, ect
7. Quick deliver time: 25-60 days
Any inquiry, pls contact us, thanks!
