• Nozzle Radius：R40
• Location Ring：125mm
• Water Connector：Dme
• After-sales Service：7,24
• Customized：Customized
• Standard：DME
• Certification：ISO, SGS, CMM, 3rd Party Inspection
• Installation：Fixed
• Design Software：UG
• Runner：Hot Runner
• Application：Car, Household Appliances, Furniture, Commodity, Electronic, Home Use, Hardware
• Model NO.：GBM003.03
• Steel：1.2738

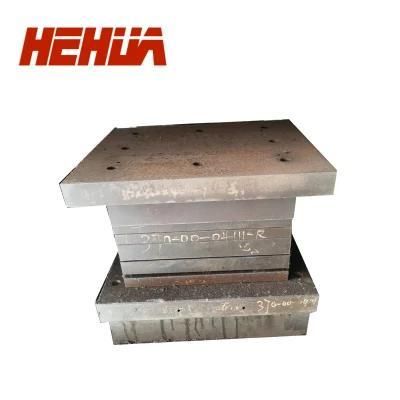

• Mold Base：Dme
• Ejector Pin：Dme
• Transport Package：Custom Vacuum Bag and Wooden Box
• Specification：4 cavity, 1, 000, 000 mold life
• Trademark：GBM Mold
• Origin：Shenzhen, China
• HS Code：8480710090
• Production Capacity：250 Sets,Year

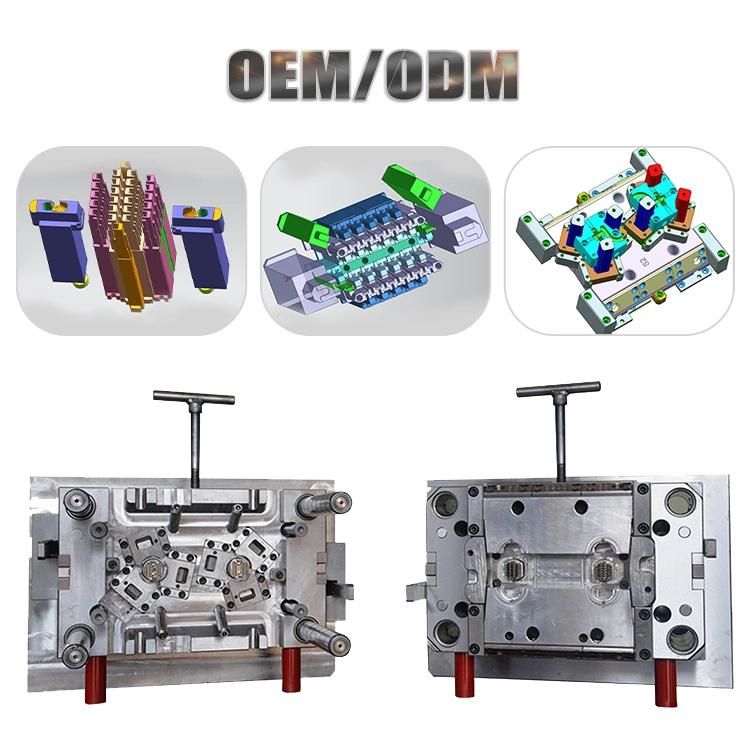

Mold baseLKM mold base with equivalent Hasco guid pin and bushingMold type2-Shot moldMold cavity and core steelP20, LKM738, H13, S416, 1.2083,1.2085,  1.2311,1.2312, 1.2343ESR, 1.2767, NAK80, etc. with original steel certificatePlastic material1st shot PC, 2nd shot PEHot RunnerMoldmaster, Incoe, Yudo, Heitec, Gunther, HRS, Synventive, etc.Oil cylinderParker, AHP, HPS and so on.Air cylinderSMCNumber of cavity1+1Mold Weight250KGMolding PressArburg L shape 2-Shot Injection Molding MachinePart NameHousingApplicationElectronic & electronic products, air detectorQuality StandardISO 9001, DIN16672


If you are looking for a tool maker to handle your projects smoothly, to help you achieve an early good result, contact us now!




GBM Mold focus on small & medium-sized injection mold with complex construction. We have good experience of making molds as following:

1) Stack mold
such as 3-level stack mold

2) Two-shot mold
 for normal 2-component parts and multi-component parts, like 2-component parts with additional metal inserts

3) Unscrewing mold
we are familiar with unscrewing system with hydraulic cylinder and unscrewing system with hydraulic motor, servo motors, and so on.

4) Insert mold
We have rich experience for making normal insert molding mold -One cover and one ejector side, and shuttle mold-One cover and two ejector side, also know as rotational insert mold.

For those parts/components with complex irregular consctruction, GBM Mold team could handle properly for you.

Work with GBM Mold:
1). Professional mold design as the production mould standards
2). Professional mold assembly staff with over 9 years experience

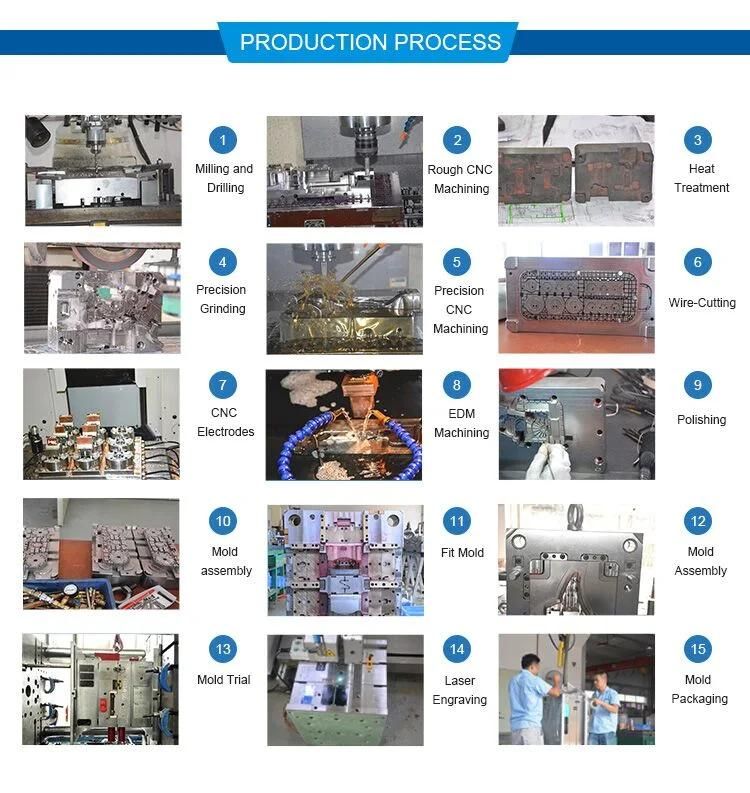

3). 2-shift fast manufacturing with CMM testing for each machining processes
4). Clear project schedule plan and on time delivery
5). Professional project management with efficient communication to make every minutes counts.



You are welcome to visit to our factory in Shenzhen of China.
