• Transport Package：Wooden Case
• Finish：Polishing, Heat Treating, Td Coating, Electroplate
• Die Life：500,000 Shots
• Certificate：ISO9001:2008, SGS
• Standard：Hasco, Dme
• Tolerance：+-0.03mm
• Model No：Hh061
• Customized：Customized
• Packing：Wooden Case
• Lead Time：30-60 Days
• Name：Hot Sale Precion Sheet Metal Stamping Dies
• Parts Detection Method：Measurement of Three Axis NC
• Milling Speed：High Speed
• Mold Cavity Technology：CNC Milling
• Driving Motor Type：Permanent Magnet
• Model NO.：SH008
• Specification：SGS, ISO
• Trademark：huihai auto
• Origin：China
• HS Code：8207209000
• Production Capacity：400 Sets ,Year

Basic Info.

Model NO. SH008 Driving Motor Type Permanent Magnet Mold Cavity Technology CNC Milling Milling Speed High Speed Parts Detection Method Measurement of Three Axis NC Name Hot Sale Precion Sheet Metal Stamping Dies Lead Time 30-60 Days Packing Wooden Case Customized Customized Model No Hh061 Tolerance +-0.03mm Standard Hasco, Dme Certificate ISO9001:2008, SGS Die Life 500,000 Shots Finish Polishing, Heat Treating, Td Coating, Electroplate Transport Package Wooden Case Specification SGS, ISO Trademark huihai auto Origin China HS Code 8207209000 Production Capacity 400 Sets /Year

Product Description

Technical Specifications

Design Base	Customer product drawings or samples
Mold material	Cr12mov, SKD11, D2, M2, DC 53, SKH-9, Copper alloy or the material customer required.
Mold base	Standard mold base or customized
Standard component	MISUMI, PUNCH, DAYTON, DANLY (or Customer required)
Part material fit	SPCC, SPCE, SPCD, DC01, DC04, Stainless steel 304.430.316, Aluminum alloy, and so on
Design software	CAE, UG, CAD

Lead time: 4-7 weeks based on tooling construction

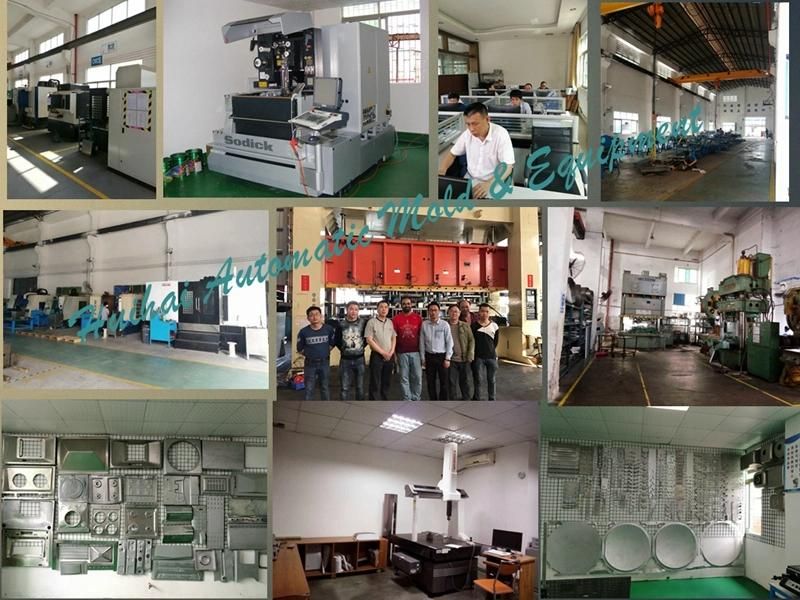

Processing Equipments


Machine Equipment	QTY	Tapping  center	1
CNC	5	Plate shears	1
WEDM	2	Mechanical Press	13
WEDM-HS	2	Hydraulic Press	2
EDM	3	Inspection Equipment	Qty
Radial drill	8	CMM	1
Sawing machine	1	projector	1
Grinding machine	4	Rockwell-hardness-tester	1
Milling machine	2	Dial Calipers(0-300mm)	8
Bench drill	4	Slide Calipers(0-1000)	6
lathe	2	Pound scale	1

Project process layout
To control the production time, and to decline the probability of clam & return from the end users, making a accurate mold is very important start , we have completed molding produced process to fulfill the needs of client.



Time Control


• Understanding and controlling the factors of any mold making process is the key to fulfill project control, we use computer analysis and specialized division to take care of controlling mold component unit and predicting work hour.
• The Parts we'll take into consideration

Overseas Clients:




WELCOME TO ENQUIRE AND TAKE MORE...
