• Specification：0.118"~2.362"
• Transport Package：Carton
• Coating：CVD
• Customized：Customized
• Warranty：1 Year
• Application：Wires and Cables
• Surface Treatment：Polish
• Model NO.：3.0mm~60.0mm
• Trademark：HG
• Origin：China
• HS Code：8480419000
• Production Capacity：30000pieces,Year

Physical Properties of the CoatingVickers HardnessDensityYoung ModulusThermal Conductivity4000kg/mm23.2g/cm3>1050GPa>12w/k.cmDiamond Grain SizeAbrasive RatioThermal Expansivity(k)Tensile Strength≤100nm>3x1050.8x10-60.5x106psiChemical Properties of the CoatingDo not produce chemical reaction to any acid and base.

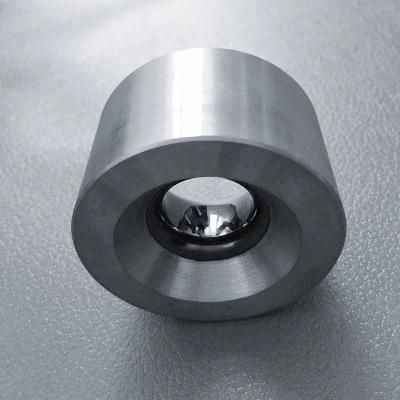

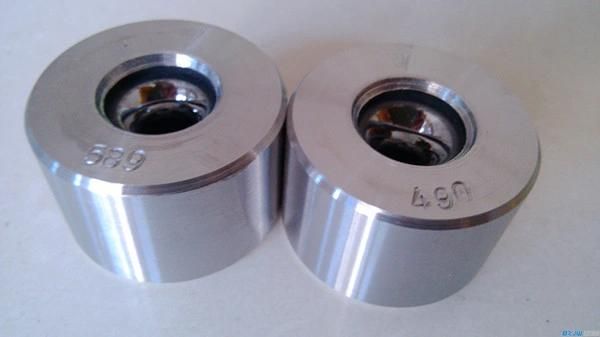

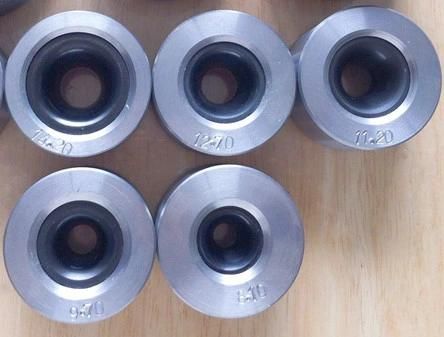

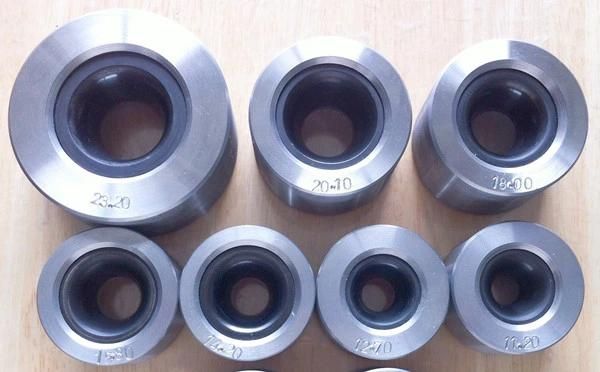

Nano dies have unique nanocrystalline diamond composite structures(chemical vapor deposition CVD ) to achieve significant productivity improvements.The diamond coating makes nano dies exceptional in durability and smoothness.

1.Appliable Wires
Copper,aluminum,brass,aluminum,alloys,low-high carbon and stainless steel wires and tubes.




2.Features
High cost performance.
High production efficiency.
Low friciton.
Bright wire surface.
No wear ring and scratch.
Very hard die surface.
Free of die recutting.
0% tolerance in full die life.
