• Runner：Cold Runner, Dme,Hasco Hot Runner
• Material for Die Casting Mold：P20,H13,S136,Nak80,718,2738,2316,SKD61
• Applied Industry：Auto Parts, Household Application
• Product Weight Available：0.02-5kgs
• Leadtime：4-5 Weeks
• Size：Custom
• OEM/ODM：Available
• Machine Size：125-800 Tons
• Condition：New
• Customized：Customized
• Certification：REACH, FCC, RoHs, CE
• Mould Life：<500,000 shots
• Model NO.：STK
• Mold Lifetime：500,000shots ~ +1,000,000shots
• Cavity：Single Cavity, Muti Cavity
• Transport Package：Carton, Wood Carton
• Specification：OEM
• Trademark：STK
• Origin：China
• HS Code：8480490000
• Production Capacity：100 Sets,Month

Item Name:

Zinc and Aluminum Die Casting Mould/Mold

Product Description:

1) Product Material: ADC10,ADC12, A380, 383, B390 (YL117), YL112, YL104

2) Mould Cavity: Single cavity, Multi Cavity

3) Mould Base: LKM,HASCO,DME Standard

4) Runner: Hot Runner,Cold Runner

5) Mould Core Steel:#45 steel, 718, P20,NAK80,S136 etc.

6) Mould Life:500,000-1,000,000 shots gurantee

7) Steel Hardness:46-56 HRC

8) Mould Finish: EDM or High Polish

9) MAX Mould Size: 1700mmX1700mm

10) Equipment: CNC, Lathe,Grinding,Milling,Drilling,EDM Machines

11) Tolerance: +/-0.05mm (secondary machining is available for tight tolerance)

General Terms:



1) Mould Leadtime: 4-7 weeks

2) Trade terms: FOB, CIF or EXW Works

3) Payment terms: By T/T or L/C at sight

4) Package: Wooden crate or pallet

5) Quality System: ISO9001:2015

6) Shipping Method: By sea or air

Applied Industry:



1. Automotive Industry

2. Electronic Industry

3. Home appliance

4. Medical Industry

5. Hardware Industry

Practicable File Formats:

Pro/Engineer, SolidWorks, Unigraphics, Auto CAD (IGS, STP, STL and X-T)

Equipment List


EQUIPMENT LIST	CAPACITY	QTY
COLD CHAMBER DIE CASTING MACHINE	125 TONS	2 SETS
COLD CHAMBER DIE CASTING MACHINE	250 TONS	2 SETS
COLD CHAMBER DIE CASTING MACHINE	350 TONS	1 SET
COLD CHAMBER DIE CASTING MACHINE	650 TONS	1 SET
COLD CHAMBER DIE CASTING MACHINE	800 TONS	1 SET
GRAVITY DIE CASTING MACHINE	200 TONS (750mm*630mm)	5 SETS
CNC LATHE MACHINE		10 SETS
MILLING MACHINE		8 SETS
DRILLING MACHINE		20 SETS
TAPPING MACHINE		10 SETS
VIBRATE POLISH MACHINE		3 SETS
SAND BLASTING MACHINE		1 SET
POLISHING MACHINE		30 SETS
CHROME PLATING LINE	NICKLE,CHROME(MATT/BRIGHT)	3 LINES

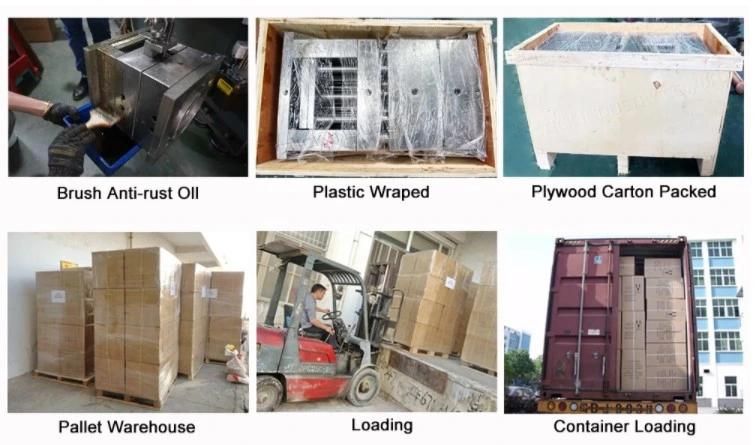

Packaging & Shipping

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory. We are experienced manufcturer, have our own factory and warehouse.

Q: What do we need if you want a quote?
A: Please kindly send us your 2D & 3D drawing of your product. We need the detail specifications as follows :
1. Material
2. Surface treatment
3. Estimated production volume

Q:How does the payment process work?
A: Our preferntial payment term is T/T
Mould Tooling : 50% down payment, 50% balance against the sample approval.
Mass Production: 50% down payment , 50% against the B/L copy

Q: How do I know about the production status?
A: We will regularly send some photos of moulds and mold progress report to our customers.

Q: How do I confirm the sample?
A: When the mold for your custom enclosure is cut, we put it on one of our molding machines and make a few sample
parts to send you for your approval. When you approve the sample parts we can move to the production phase of the process.

Q:How do we know about the deliery status?
A: We will immediately inform you the tracking number once we get it from shipping agent. Besides, we will update the latest shipping information.

Q: What is the delivery time?
A: Depending on the size and complexity of the moulds, the delivery time is 3-7 weeks. Mould tools are highly engineering and precision
pieces of equipment that take a lot of expert hours to produce.

Q: What is the Ownership?
A: Our terms indicate that you own and control the tooling, so you are free to collect your mold at any point whether we produce the plastic
parts or you have someone else produce them.
