• Specification：45#, P20, H13, 718, 2738, NAK80, S136etc.
• Transport Package：Wooden Case
• Mould Material：P20,718h,S45
• Customized：Customized
• Standard：HASCO
• Certification：ISO
• Installation：Fixed
• Design Software：UG
• Trademark：UK
• Origin：China
• HS Code：8480719090
• Production Capacity：500 Sets,Year

Basic Info.

Design Software UG Installation Fixed Certification ISO Standard HASCO Customized Customized Mould Material P20,718h,S45 Transport Package Wooden Case Specification 45#, P20, H13, 718, 2738, NAK80, S136etc. Trademark UK Origin China HS Code 8480719090 Production Capacity 500 Sets/Year

Product Description

Product Description

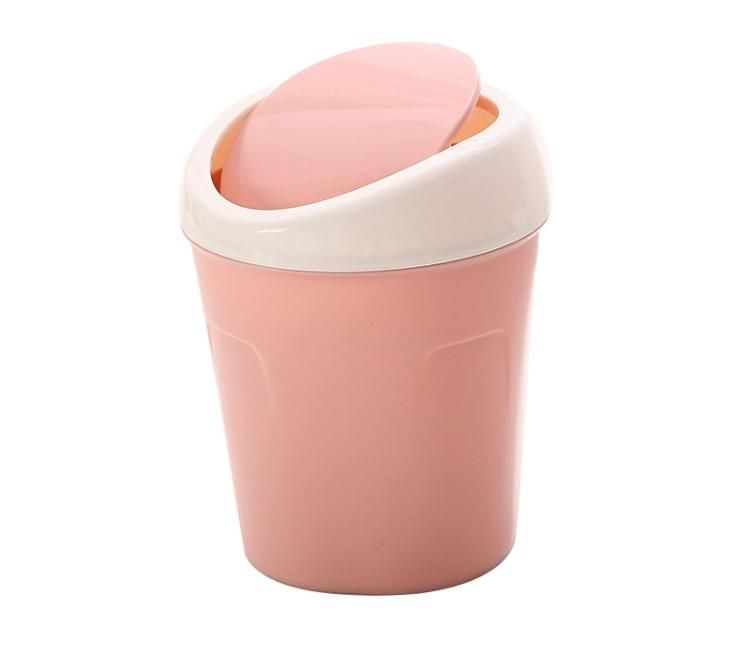

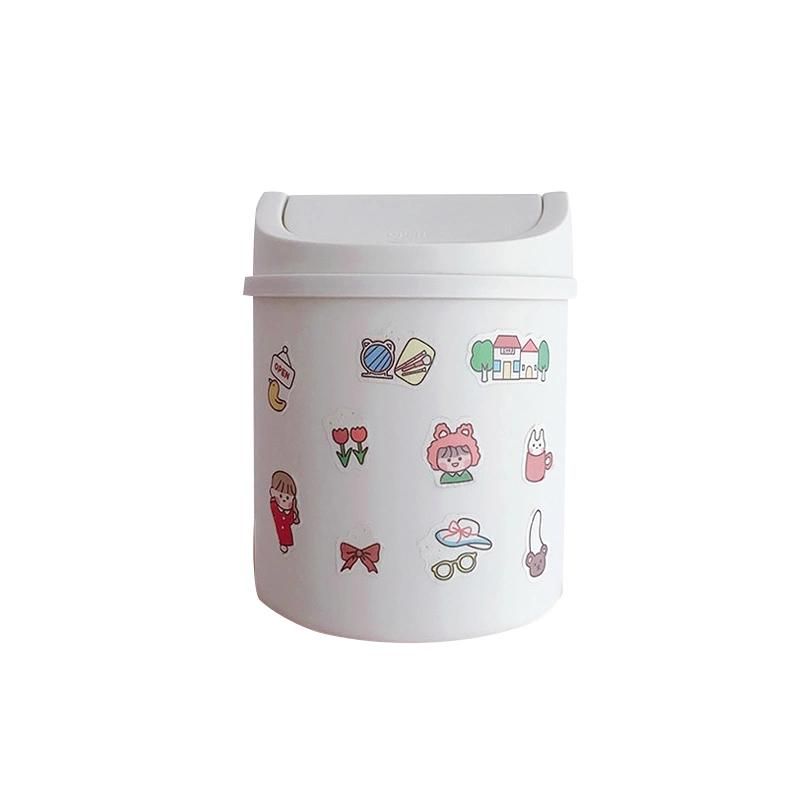

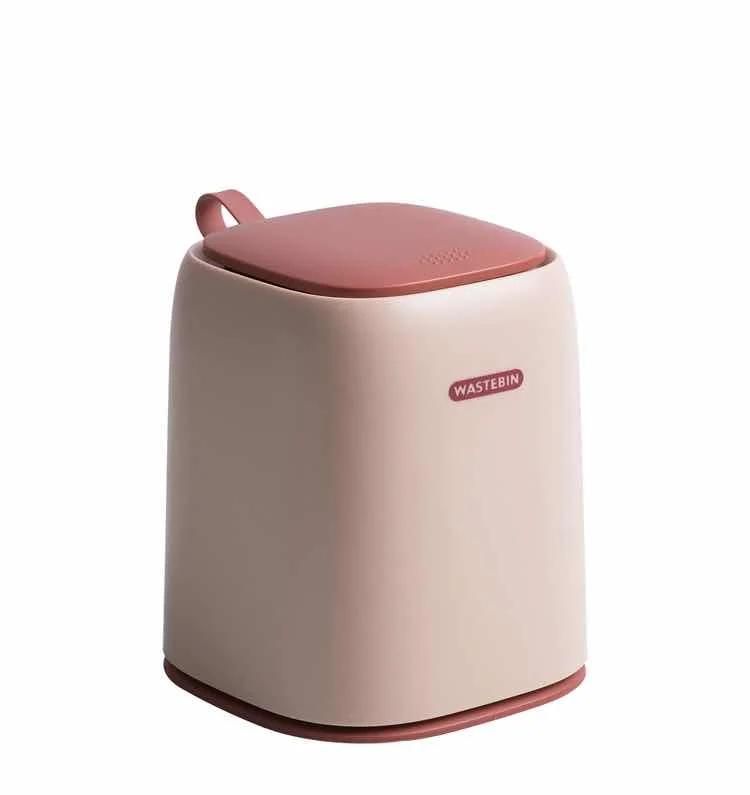

For plastic trash can mould, we adhere to the concept of "people-oriented, continuous innovation", the implementation of the "pursuit of excellence, manufacturing quality products" principle, follow the tenants "pay attention to every detail". To ensure accuracy and micro-deformation, the mold steel should have high heat resistance. So we usually use P20 as the material.U-KNOW MOULD exports many plastic dustbin mould to the countries in Southeast Asia every year.

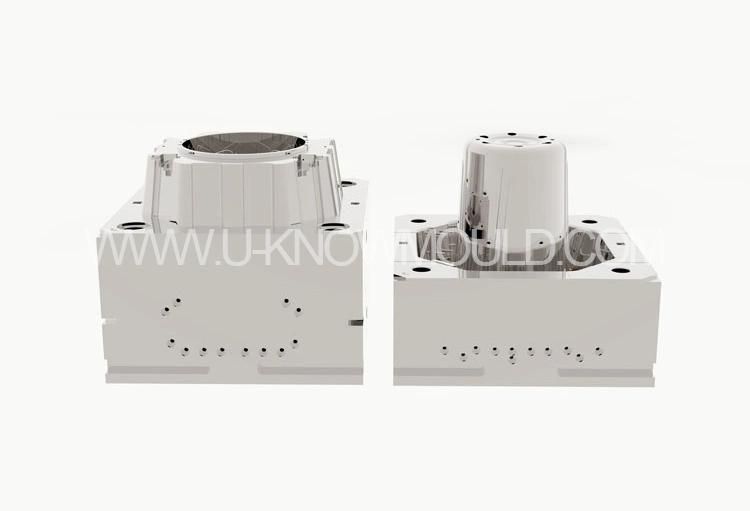

Mould name	Plastic Trash Can Mould
Mould material	P20,45#, 50#, H13, 718, 2738, NAK80, S136, SKD61 etc.
Product description	as per customer requirement
Cavity number	Single
Mould standard base	LKM,HASCO,DME...etc
Cooling system	In core baffle and in cavity plate chain drilling type cooling
Plastic material	PP, PC, PS, PE, PU, PVC, ABS, PMMA etc.
Mould/mold life	>300,000 Shots ,Different steel with different mold life
Runner system	Cold runner / Hot Runner
Ejection system	Automatic Eject (Ejector pin, Air gate, Ejector plate, Hydro-cylinder, etc)
Mould/mold features	Good quality
Cycle time	30-60 seconds
Delivery time	20-45days

Our Advantages

• 20 Years Of Mould Manufacturing Experience
• Provide Customers With Reliable Quality Molds
• High Precision, High Efficient Production, Fast Delivery
• Mould Is Customized With Your Special Idea, And Only For You.

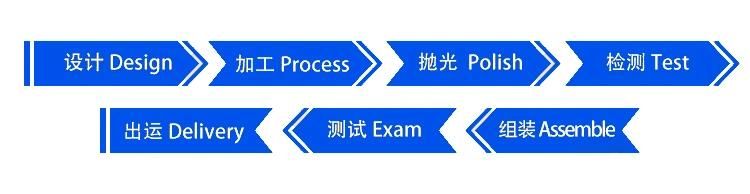

• One Stop Service From Design To Mould testing, Mould Trial Sample Will Be Submitted For You Approval.

Product Line


About Us
TAIZHOU U-KNOW MOULD CO.,LTD is a professional company engaged in mould design, manufacturing and producing. We are specialize in plastic injection mould , such as chair mould, basin mould,basket mould, stool mould, blowing mould, thin-wall mould and other product.
Our company have a strong technical force , the introduction of various kind of advance production equipment , and a group of professional and technical mould worker.Most of our mould exported to Russia, India, Egypt, Spain, Brazil and other Europe and American countries. Welcome to visit our website:tzjingyuan.en.made-in-china.com
We sincerely welcome to your arrival !







Packaging & Shipping

1. put anti-rust paint on the cavity & core surface of mould,then put oil on the outer surface of mould,then put preservative film on all sides of mould.
2. The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tight,we will use FE film for packing or pack it according to customers special request.
3. We will send the mould to shipment agent's warehouse or load into the container as customer requirement.
