• Transport Package：Wooden Pallet Wooden Frame Wooden Case
• Service：CNC Engraving & Cutting
• Feature：Highly Mechanic,Fatigue-Resistant,Crip-Resistant..
• Certificate：SGS,ISO9001,RoHS,Test Report
• Delivery：by Sea or by Plane
• Packaging Detail：Wooden Cases, Pallet or as Clients Require
• Thickness：1-100mm
• Density：1.39~1.53
• Color：White, Black or as Required
• Size：Custom Size
• Raw Material：100% Pure Virgin POM Material
• Place of Origin：Tian Jin China
• Customized：Customized
• Certification：TS16949, CE, ISO, FDA
• Model NO.：beyond-pom
• Specification：thickness 5mm-100mm
• Trademark：beyondtd
• Origin：Tianjin
• HS Code：3920999090
• Production Capacity：5000 Ton , Year

Basic Info.

Model NO. beyond-pom Certification TS16949, CE, ISO, FDA Customized Customized Place of Origin Tian Jin China Raw Material 100% Pure Virgin POM Material Size Custom Size Color White, Black or as Required Density 1.39~1.53 Thickness 1-100mm Packaging Detail Wooden Cases, Pallet or as Clients Require Delivery by Sea or by Plane Certificate SGS/ISO9001/RoHS/Test Report Feature Highly Mechanic/Fatigue-Resistant/Crip-Resistant.. Service CNC Engraving & Cutting Transport Package Wooden Pallet Wooden Frame Wooden Case Specification thickness 5mm-100mm Trademark beyondtd Origin Tianjin HS Code 3920999090 Production Capacity 5000 Ton / Year

Product Description

Company Information

   Tianjin Beyond Technology Developing Co., Ltd is a comprehensive enterprise which focus on production, development and sale of engineering plastics, rubber and multiply non-metallic products since 2015

   We have established a good reputation and built long-term& stable cooperation relationship with many domestic companies and gradually step out to cooperate with abroad companies in southeast Asia, the Middle East, North America, South America, Europe and other regions.

   Our main products: Ultra high molecular weight polyethylene, MC nylon, PA6, POM, HDPE, PP,PU, PC, PVC, ABS, ACRYLIC,PTFE, PEEK, PPS,PVDF.

Polyoxymethylene (POM)

   POM  is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability.

   POM is supplied in a granulated form and can be formed into the desired shape by applying heat and pressure. The two most common forming methods employed are injection molding and extrusion. Rotational molding and blow molding are also possible. Typical applications for injection-molded POM include high performance engineering components (like  gear wheels, fasteners) and the material is widely used in the automotive and consumer electronics industry. There are special grades that offer higher mechanical toughness, stiffness or low friction/ wear properties.

   POM is commonly extruded as continuous lengths of round or rectangular section. These sections can be cut to length and sold as bar or sheet stock for machining.

POM Features

1. Highly mechanic and strong in terms of heat and electricity;

2. High fatigue-resistant and crip-resistant;

3. Yields little friction,highly wear-resistant, and magnetic-lubricating;

4. Highly resistant to various chemicals,heat and water;

5. Easily processed using machine and yields products of even sizes;


 POM Applications

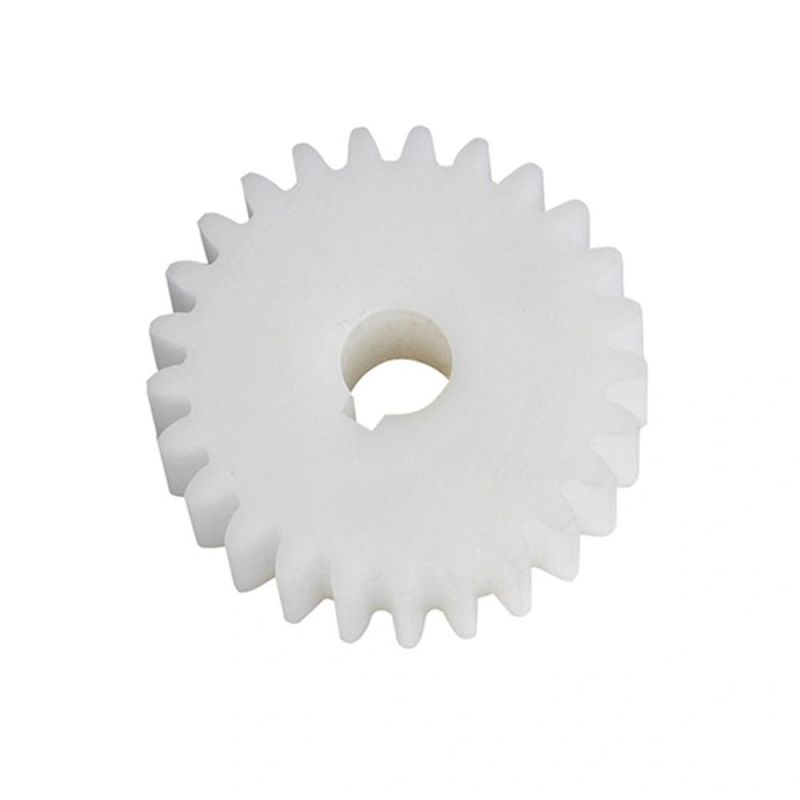

 1.General machinery: gear, pulley, rack, star wheel, chain plate, bearing, bolt, nut, etc.

 2.Auto parts: door lock, handle, accelerator pedal and shaft, etc

 3.Electronics and appliances: conveyor link, spring seat, coil winding tube, etc

 4.Engineering construction: door and window frame, curtain pulley, etc.


POM performance parameters


Density	g/cm3	1.39~1.43
Moisture of absorption	%	0.2
Continuous working temperature	ºC	-50~105
Yield tensile strength	Mpa	63
Yield strain	%	10
Ultimate tensile strain	%	31
Notched impact toughness	Kj/m2	6
Hardness of Rockwell	Mpa	135
Hardness of shore	Mpa	85
Flexure strength	Mpa
Elasticity modulus	Mpa	2600
Point of softening	ºC	150
Distortion temperature/ HDT	ºC	155
Linear expansion coefficient		11
Thermal conductivity	w/(m*k)	031
Coefficient of friction		035
