• Specification：1428X905X2088MM
• Transport Package：Wood Packing
• Build Size：300mm*300mm*400mm
• Customized：Customized
• Standard：HASCO
• Certification：CE
• Installation：Fixed
• Design Software：UG
• Runner：Hot Runner

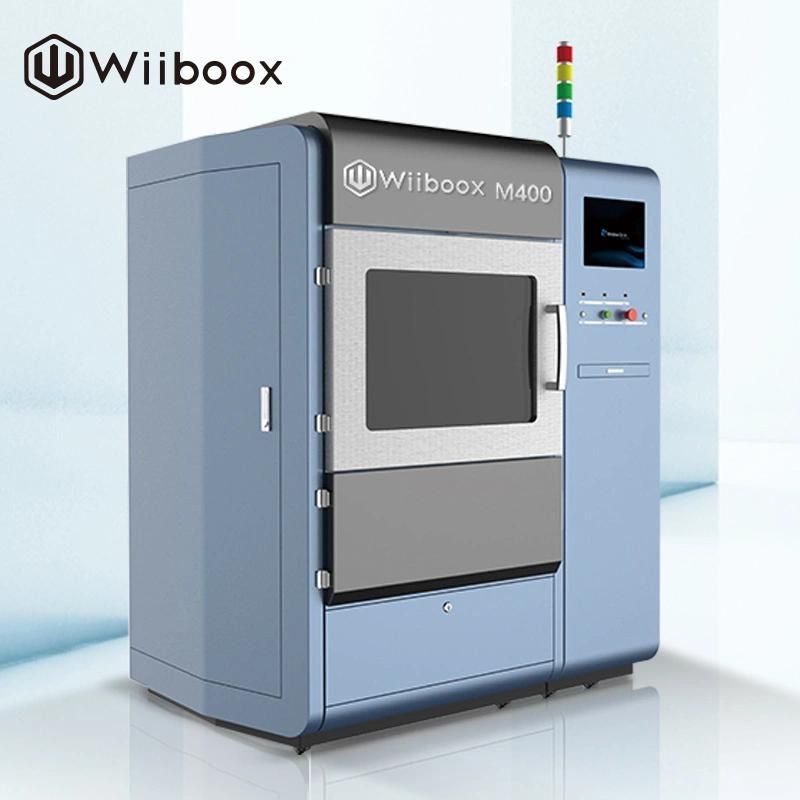

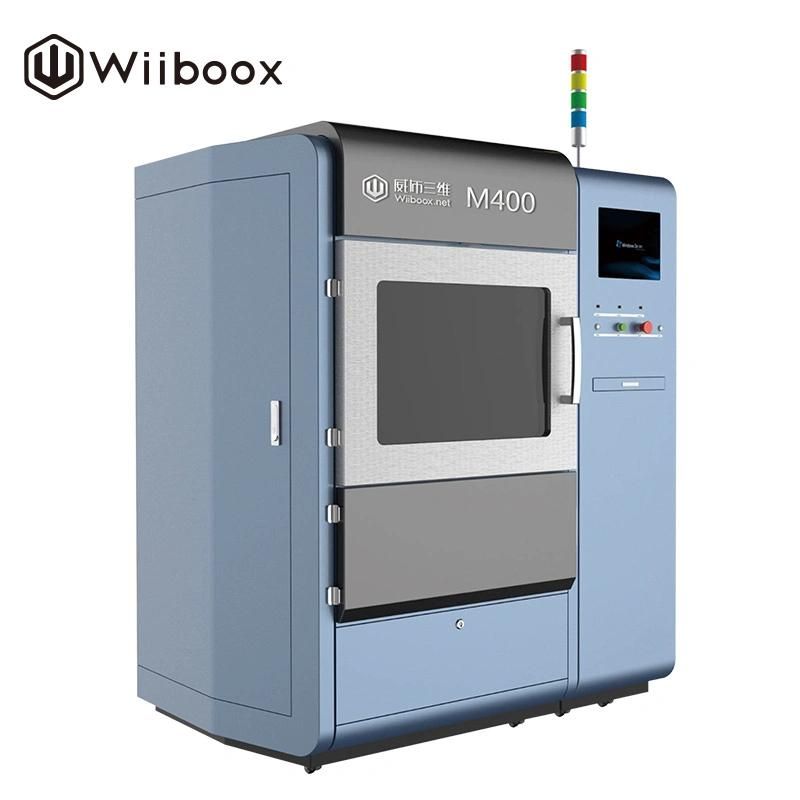

• Model NO.：M400
• Trademark：Wiiboox
• Origin：China
• HS Code：8477591000
• Production Capacity：100PCS,Year

Basic Info.

Model NO. M400 Runner Hot Runner Design Software UG Installation Fixed Certification CE Standard HASCO Customized Customized Build Size 300mm*300mm*400mm Transport Package Wood Packing Specification 1428X905X2088MM Trademark Wiiboox Origin China HS Code 8477591000 Production Capacity 100PCS/Year

Product Description

Features:
1.Print size 300x300x400mm
2.Positioning accuracy: X/Y axis: 2um, Z axis: 1um
3.Maximum print speed: 200mm/S
4.More than 8 kinds of PC ABS nylon and other consumables
5.Special functions: the floor can be replaced, the floor height is automatically detected, the breakage reminding, the interruption of the power cut, the remote video surveillance
6.Cluster management function (optional): more than 3 devices can be equipped with printing equipment MES cluster system, cluster management can support the 1-200 platform scale, suitable for high concentration of manufacturing enterprise production
7.Appearance size: 1428 * 905 * 2088 mm (W*D*H) (covered tower lamp) Machine weight: 680kg
8.Display size: 10.1 inches
9.200 sets of group control management





Machine:
Model	Wiiboox M400
Size	1428*905*2088mm
Net Weight	680KG
Voltage	220VAC two phase, 50Hz, 16A
Power	3500W
Warranty	1 year
Operation	LCD 10.1" highlight
Shell	Totally enclosed
Gross Weight	750KG
Printing:
Theory	FFF
Build Size	300*300*400mm
Extruder	Single
Layer	X/Y axis: 2um, Z axis: 1um
Nozzle	0.4mm (optional: 0.2/0.4/0.6/0.8/1.0mm)
Precison	Z axis:2.5um, XY:11um
Speed	Max.200mm/Sec
Filament:
Type	PLA (PolyMAX): white, black, gray PA (N703cbrk): original color, kaolin clay PC (PC-MAX): white Nylon: white TPU: white ABS: original color PolyCast: original color Support material: PVA (301)
Diameter	1.75mm
Color	Multi-color
Weight	1 kg/roll

About Us
Nanjing Wiiboox 3d Technology Co.,Ltd is one of leading companies that introduces 3D printing technology in China.
Wiiboox is leading provider of 3D printing integrated solutions. Its product line includes a diverse range of 3D printing related high-tech products, like FDM 3D printer, DLP 3D printer, 3D chocolate printer, BIO 3d printer.SLA 3d printer and LED white-light 3D scanner Etc
