Plastic Injection No Cutting Long Tail Preform Mold

Taizhou Huangyan Yongsheng Mould Co., Ltd.
  • Process Combination Type：Single-Process Mode
  • Plastic Material：PET
  • Mould Cavity：Multi Cavity
  • Surface Finish Process：Polishing
  • Shaping Mode：Injection Mould
  • Application：Household Appliances, Commodity, Home Use

Base Info

  • Warranty：5, 000, 000 Times
  • Demoulding：Automatic
  • Insert：Beryllium Copper
  • Process：Hot Runner
  • Polish：High Polish
  • Mould Matieral：P20 S136 2316 #45 718, Copper
  • Cavity：32,36,48
  • Size：28mm, 30mm, 32mm, 38mm
  • Customized：Customized
  • Standard：Standard
  • Installation：Fixed
  • Design Software：UG
  • Runner：Hot Runner
  • Model NO.：YS20170309777
  • Transport Package：Wooden Package
  • Specification：SGS
  • Trademark：Yongsheng
  • Origin：China
  • HS Code：8480719090
  • Production Capacity：500sets,Year

Description

Basic Info.

Model NO. YS20170309777 Runner Hot Runner Design Software UG Installation Fixed Standard Standard Customized Customized Size 28mm/ 30mm/ 32mm/ 38mm Cavity 32/36/48 Mould Matieral P20S1362316#45718/ Copper Polish High Polish Process Hot Runner Insert Beryllium Copper Demoulding Automatic Warranty 5, 000, 000 Times Transport Package Wooden Package Specification SGS Trademark Yongsheng Origin China HS Code 8480719090 Production Capacity 500sets/Year

Product Description


1) Saving 10%-30% cost than other factories.
2) Life: 5, 000, 000 time.
3) D and 3D provided.
4) Diliver time: 25-35 days.

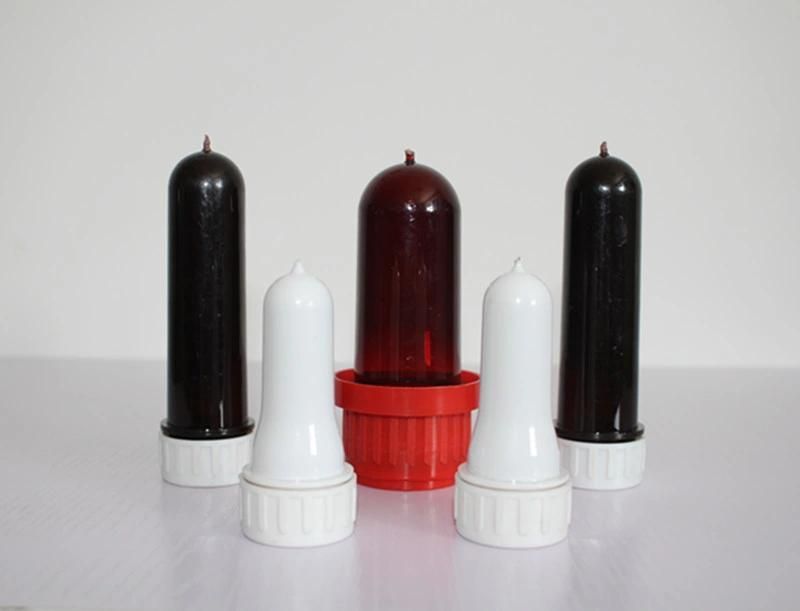

Plastic Injection No Cutting Long Tail Preform Mold

Plastic Injection No Cutting Long Tail Preform Mold

Mould details:
1. Design 3D drawing for customers' confirmation according to their 2D drawning or sample when placing to order.
2. Mould Matieral: Different grade: P20, S136, 2316, H13, #45etc.
3. High Technology: Advanced second-level taper positioning technology and slide- type independent self-locking, hence the concentricity of the product is guaranteed.
4. Independent temperature control & heating system Which boasts an even heating temperature and keeps product with reliable and stable quality.
5. Cavity: Depend on your selection, 1, 2, 4, 8, 12, 18, 24, 36, 48...
All inserts can be interchangable.
6. Product matieral: PE/PP/PVC/PET, ect
7. Quick deliver time: 25-60 days

Any kinds of preform mould are available here, pls just contact us, thanks!
 1 Sample or 2D drawing from customer
 2 Build 2D and 3D drawing
 3 CAD mould design
 4 Parts inspection / CNC machining / EDN machining
 5 Mould assembly
 6 Mould test
 7 Sample confirm
 8 Dilver the mould
