• Transport Package：Wooden Case
• Certificate：ISO9001:2008, SGS
• Packing：Wooden Case
• Die Standard：Hasco, Dme
• Cavity：1 to Multiple
• Die Life：500, 000 Shots
• Stamping Material：Stainless Steel, Aluminum Alloy, Brass, Zinc etc
• Die Material：Cr12, Cr12MOV, DC 53, Skh-9, 45# etc
• Software：2,3 D, Auto CAD, Cae, PRO-E, Solidworks
• Tolerance：+-0.03mm

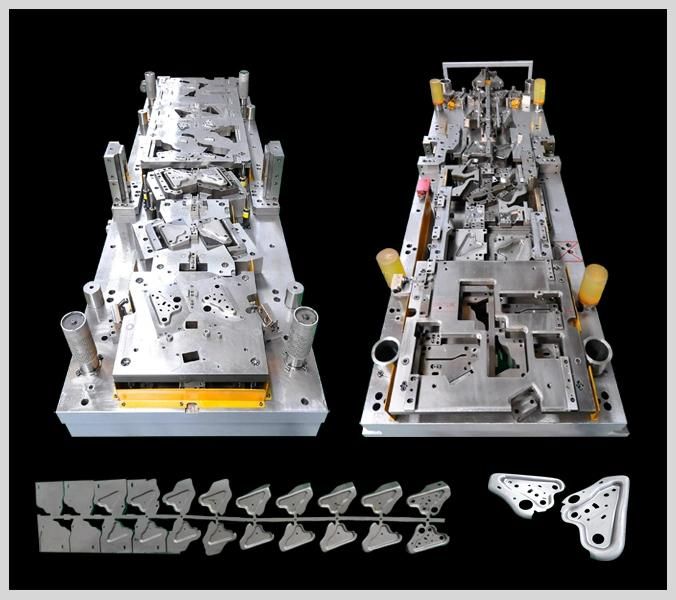

• Name：Precision Metal Stamping Dies Tool
• Parts Detection Method：Measurement of Three Axis NC
• Milling Speed：Normal Speed
• Mold Cavity Technology：CNC Milling
• Driving Motor Type：Permanent Magnet
• Model NO.：HH185
• Specification：ISO, SGS
• Trademark：huihai auto
• Origin：Zhongshan
• HS Code：8207300090
• Production Capacity：350 Sets ,Year

Basic Info.

Model NO. HH185 Driving Motor Type Permanent Magnet Mold Cavity Technology CNC Milling Milling Speed Normal Speed Parts Detection Method Measurement of Three Axis NC Name Precision Metal Stamping Dies Tool Tolerance +-0.03mm Software 2/3 D, Auto CAD, Cae, PRO-E, Solidworks Die Material Cr12, Cr12MOV, DC 53, Skh-9, 45# etc Stamping Material Stainless Steel, Aluminum Alloy, Brass, Zinc etc Die Life 500, 000 Shots Cavity 1 to Multiple Die Standard Hasco, Dme Packing Wooden Case Certificate ISO9001:2008, SGS Transport Package Wooden Case Specification ISO, SGS Trademark huihai auto Origin Zhongshan HS Code 8207300090 Production Capacity 350 Sets /Year

Product Description




Our Advantages:
1. Competitive price
2. Strict quality control system (ISO9001 system manage)
3. Quick mold making and delivery (4-7weeks)
4. Advanced equipment, excellent R&D teams
5. Professional technicians and rich experienced workers

Huihai specializes in manufacturing and supplying of various moulds and dies, such as metal stamping dies, plastic injection moulds, motor stator&rotor molds and stamping parts and injection parts since 2005.
Huihai provides various molds & dies to the clients from USA, Spain, Italy, Russia and so on.
"Good quality with cost-effective" is the base of Huihai business. Huihai people keep creating value for customers as our mission.
ISO 9001: 2008 certificated.



Technical Specifications

Design Base	Customer product drawings or samples
Mold material	Cr12mov, SKD11, D2, M2, DC 53, SKH-9, Copper alloy or the material customer required.
Mold base	Standard mold base or customized
Standard component	MISUMI, PUNCH, DAYTON, DANLY (or Customer required)
Part material fit	SPCC, SPCE, SPCD, DC01, DC04, Stainless steel 304.430.316, Aluminum alloy, and so on
Design software	CAE, UG, CAD

Lead time: 4-7 weeks based on tooling construction

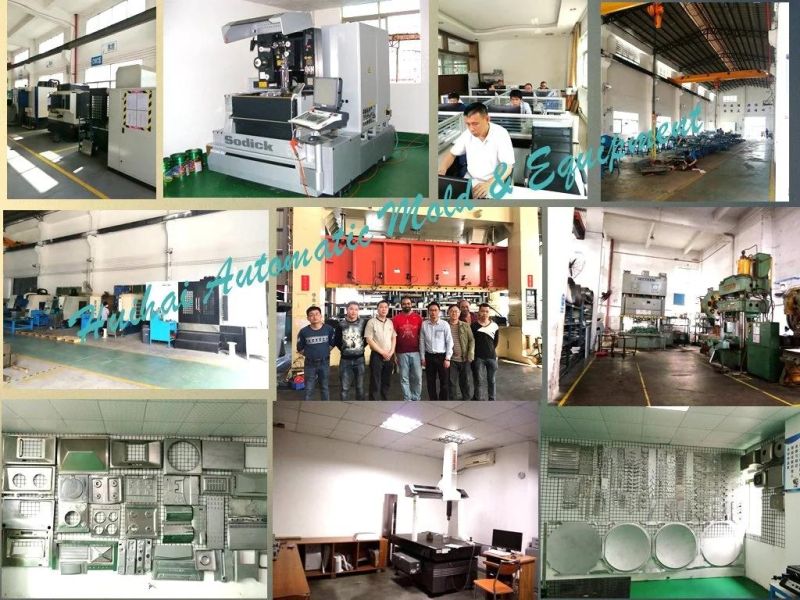

Processing Equipments


Machine Equipment	QTY	Tapping  center	1
CNC	5	Plate shears	1
WEDM	2	Mechanical Press	13
WEDM-HS	2	Hydraulic Press	2
EDM	3	Inspection Equipment	Qty
Radial drill	8	CMM	1
Sawing machine	1	projector	1
Grinding machine	4	Rockwell-hardness-tester	1
Milling machine	2	Dial Calipers(0-300mm)	8
Bench drill	4	Slide Calipers(0-1000)	6
lathe	2	Pound scale	1

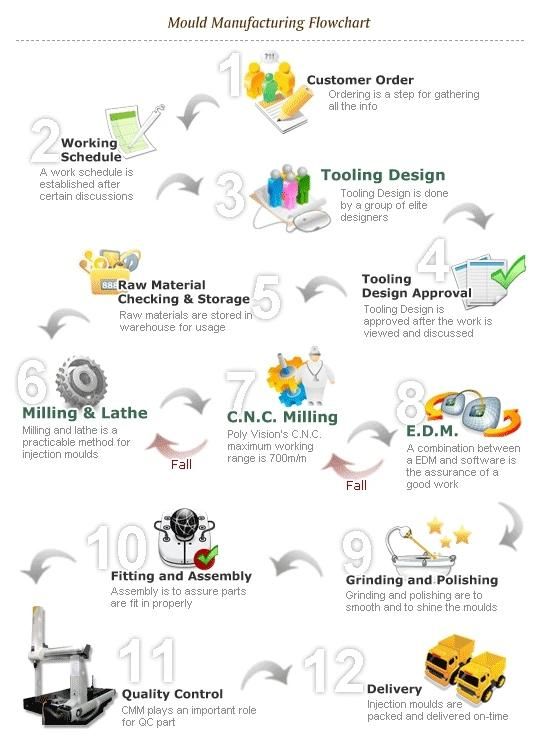

Project process layout
To control the production time, and to decline the probability of clam & return from the end users, making a accurate mold is very important start , we have completed molding produced process to fulfill the needs of client.



Time Control


• Understanding and controlling the factors of any mold making process is the key to fulfill project control, we use computer analysis and specialized division to take care of controlling mold component unit and predicting work hour.
• The Parts we'll take into consideration

Overseas Clients:



WELCOME TO ENQUIRE AND TAKE MORE...
FORE MORE INFORMATION AND QUESTION, PLEASE FEEL FREE TO CONTACT WHAT'S APP AND WECHAT OR EMAIL.
