8 Cavity Plastic Injection Cone Coil Mould (YS162)

Taizhou Huangyan Yongsheng Mould Co., Ltd.
  • Process Combination Type：Single-Process Mode
  • Plastic Material：PP, PC, PS, PE, PVC, ABS, HDPE, LDPE...
  • Mould Cavity：Multi Cavity
  • Surface Finish Process：Polishing
  • Shaping Mode：Injection Mould
  • Application：Household Appliances, Commodity, Home Use

Base Info

  • Transport Package：Wooden Case
  • Equipment：CNC, Nc EDM, Wire-Cutting, Large-Scale...
  • Mould Life：Above300, 000 Times
  • No,Cavity：1-48
  • Mould Base：Lkm, Hasco, Dme
  • Mould Material：45#, P20, 718, 2738, Nak80, S136 etc.
  • Name：Plastic Injection Cone Mould
  • Customized：Customized
  • Standard：Standard
  • Installation：Fixed
  • Design Software：Ug, PRO-E, Solidworks, CAD Et..
  • Runner：Cold,Hot
  • Model NO.：YS162
  • Specification：to meet customer needs
  • Trademark：YS
  • Origin：China Zhejiang Huangyan
  • HS Code：8480719090
  • Production Capacity：50 Sets Per Month

Description

Basic Info.

Model NO. YS162 Runner Cold/Hot Design Software Ug, PRO-E, Solidworks, CAD Et.. Installation Fixed Standard Standard Customized Customized Name Plastic Injection Cone Mould Mould Material 45#, P20, 718, 2738, Nak80, S136 etc. Mould Base Lkm, Hasco, Dme No,Cavity 1-48 Mould Life Above300, 000 Times Equipment CNC, Nc EDM, Wire-Cutting, Large-Scale... Transport Package Wooden Case Specification to meet customer needs Trademark YS Origin China Zhejiang Huangyan HS Code 8480719090 Production Capacity 50 Sets Per Month

Product Description

8 cavity plastic injection cone coil mould(YS162)

1. ADVANTAGE:
1) Saving 10%-30% cost than others.
2)  Direct factory price
3) Life:3, 000, 000 time
4) 2D and 3D provided
5) Quick T1  time: 25-40 days
6) More than 15 years experience

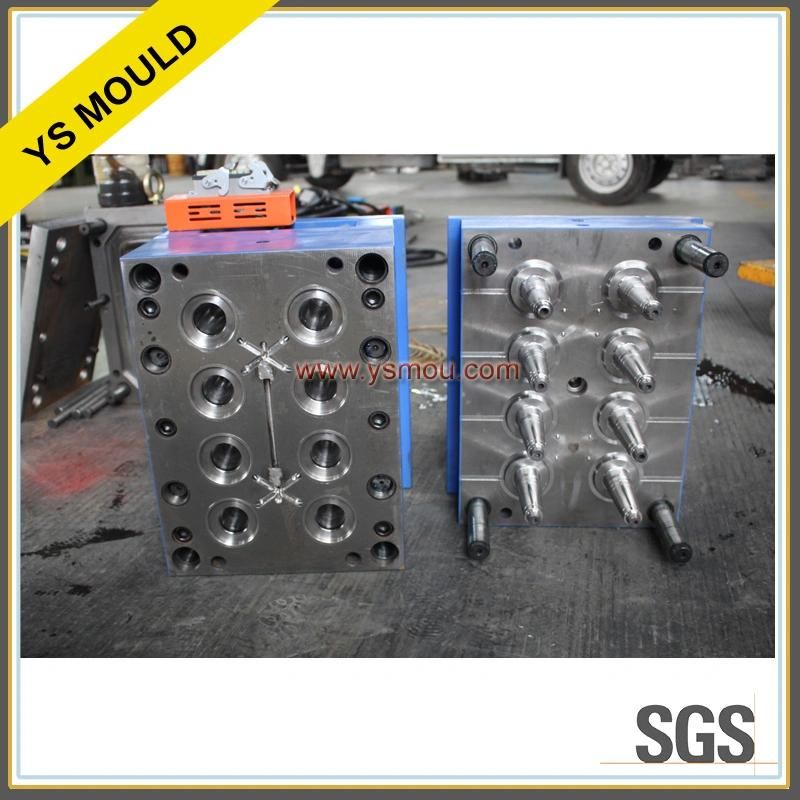

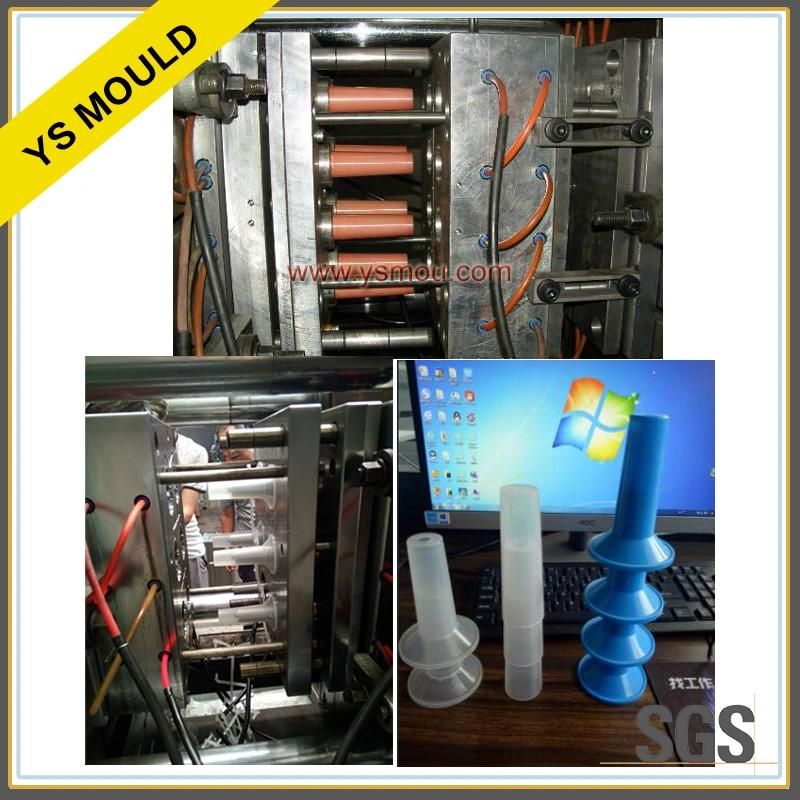

2.  PICTURE
8 Cavity Plastic Injection Cone Coil Mould (YS162)
8 Cavity Plastic Injection Cone Coil Mould (YS162)
8 Cavity Plastic Injection Cone Coil Mould (YS162)
8 Cavity Plastic Injection Cone Coil Mould (YS162)
3. MOULD  DESCRIPTION:
1) Cavity:1-72
2)  Mould base material :P20 , 45# , 4CR13 , .ECT
3) Core&Cavity material : S136,718, P20,2378,2316,4CR13,P20 .ECT
4) Runner: Cold /Hot (LOCAL BRAND,HASCO,YUDO,HUSKY .ETC)
5) Life time:3,000,000 shots
6) Quick T1 time:25-40 days
7) Package:wooden case

4. MOULD  MANUFACTURE  PROCESS:
1) Cap Mould : grinding→fly-cutter →CNC Milling→drilling→lathe→boring lathe→electric pulse →fine fly-cutter→polish→electroplate→install

2) Preform Mould: grinding→drilling→lathe→boring lathe→fine fly-cutter→electroplate→install

5. AFTER SALE SERVICE:
Any mould problem,we will provide free maintenance service

Any mould inquriy, just contact us, will reply to you at the fisrt time.
