Shock-Absorbing Ball for Unmanned Aerial Vehicleuav/Rpv/Rpvs and Targets
QINGDAO GOFAI RUBBER & PLASTIC PRODUCTS CO., LIMITED- Process Combination Type：Progressive Die
- Plastic Material：Silicone Rubber
- Mould Cavity：Multi Cavity
- Shaping Mode：Injection Mould
- Surface Finish Process：Painted, Sand Blasting, Polishigng,Powder Coating
- Application：Car, Household Appliances, Furniture, Commodity, Electronic, Home Use, Hardware
Base Info
- Specification：customized
- Transport Package：OPP Bag with Cartons
- Logo：Yes
- OEM/ODM：Yes
- Customized：Customized
- Standard：HASCO
- Certification：CE, ISO, FDA
- Installation：Fixed
- Design Software：AutoCAD
- Runner：Hot,Cold Runner
- Trademark：GOFAI
- Origin：China
- HS Code：4016999090
- Production Capacity：1000000PCS,Month
Description
Basic Info.
Runner Hot/Cold Runner Design Software AutoCAD Installation Fixed Certification CE, ISO, FDA Standard HASCO Customized Customized OEM/ODM Yes Logo Yes Transport Package OPP Bag with Cartons Specification customized Trademark GOFAI Origin China HS Code 4016999090 Production Capacity 1000000PCS/MonthProduct Description

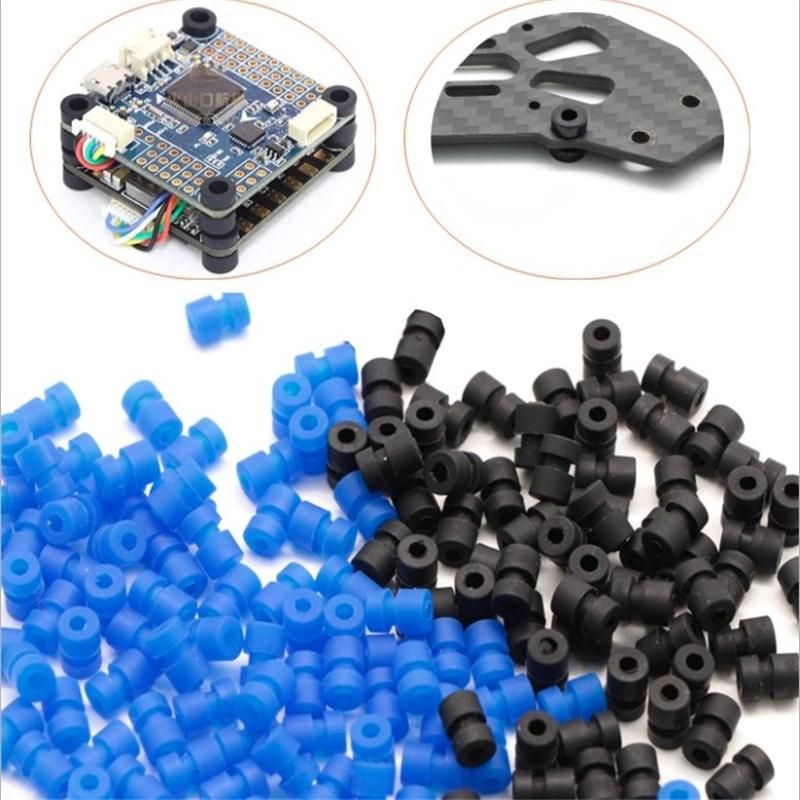

Unmanned Aerial Vehicle
drone gimbal
It is mainly used to eliminate the high frequency vibration of different frequencies generated by the aircraft during the flight, which is what we commonly call jitter. The image quality caused by the jitter is unsatisfactory, so it is particularly important to reduce the vibration phenomenon in the shooting process. This ball should be used in conjunction with a vibration damping frame or a vibration damping plate!
The shock-absorbing ball has a reasonable design. Like a spindle spring, the vertical displacement can be 6-7mm, basically continuous compression, without sudden changes.
1. A single load bearing weight of 100g, a single resonance elimination ratio: 170Khz vibration absorption 90%, 120Khz absorption 82%, 85Khz absorption 60%;
2. Two load-bearing weights of 150g, two resonance elimination ratios: 170khz vibration absorption 88%, 120Khz absorption 88%, 85Khz absorption 78%;
The mounting hole reference is a 9mm diameter circular hole shock absorber ball with the thickest part straight through 17mm
| Product Name | Aerial Photography Silicone Damping Ball Flight Control Damping Pad M2M3 UAV Damping Ball F4/F7 Flight Control Damping Ball Manufacturers supply GOPRO silicone rubber shock-absorbing ball, Wizard 3 shock-absorbing ball, flight control rubber shock-absorbing pad Drone |
| Material | silicone rubber |
| Color | Black, Red, Green, Brown, Grey, White etc. |
| Specification | 0.5-710mm |
| Hardness | 30-90 Duro Sh-a or Irhd |
| Application | Machinery, Industrial Component, Electronic Product, Vehicle, Household Appliance |
