• Process：CNC, EDM, Drilling, Wire-Cutting, Polish
• Design Software：Ug, Proe, CAD, Dxf, etc
• Hardness：20-60HRC
• Material：Plastic, Silicone, Rubber, LSR
• Steel：50#, 45#, P20, S136, 718h, Nak80, etc
• Customized：Customized
• Warranty：2 Years
• Mould Life：500000-1000000 times
• Certification：RoHs, FDA, REACH
• Model NO.：CM
• Transport Package：Wooden Box
• Specification：Custom
• Trademark：Better
• Origin：Xiamen, China
• HS Code：3926909090

Basic Info.

Model NO. CM Certification RoHs, FDA, REACH Mould Life 500000-1000000 times Warranty 2 Years Customized Customized Steel 50#, 45#, P20, S136, 718h, Nak80, etc Material Plastic, Silicone, Rubber, LSR Hardness 20-60HRC Design Software Ug, Proe, CAD, Dxf, etc Process CNC, EDM, Drilling, Wire-Cutting, Polish Transport Package Wooden Box Specification Custom Trademark Better Origin Xiamen, China HS Code 3926909090

Product Description

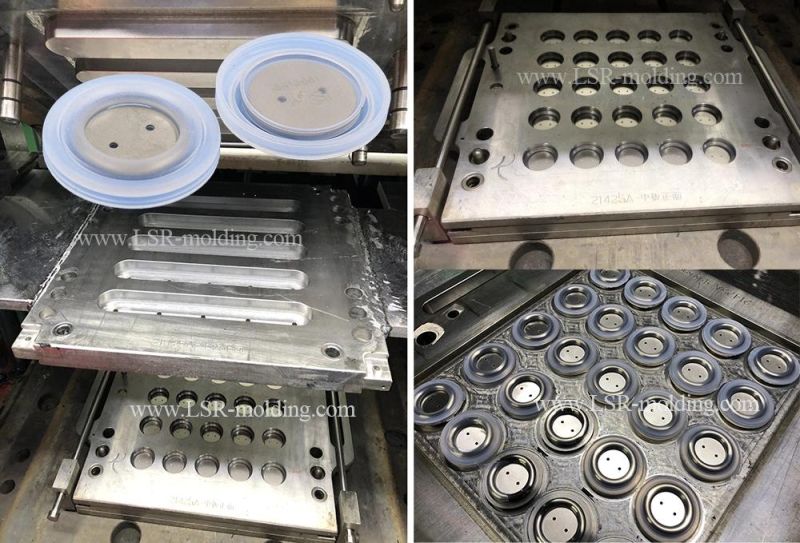

Transfer Injection Rubber Compression Mould/MoldCompression mold is a tool used for making silicone rubber products/parts. Our company specialized in making precise mold tools/Transfer injection mold according to customer's design drawings, samples and quality demands.


Rubber Compression Mold Structure: Technical Data

1	Steel material	45#,50#,2738,2343,DIN-1,S130,H13,2344,738H,718,8407,S136,NAK80,P20,KD-61,NIMAX ect
2	Steel hardness	20-60HRC
3	Treatment	Pre-Harden, Nitriding, Heat treatment, Quenching
4	Cavity Qty	Single-cavity / Multi-cavity
5	Mould Life	50K - 100k shots
6	Design Software	UG, CAD, 3D MAX, PRO-E, Solid Works etc,

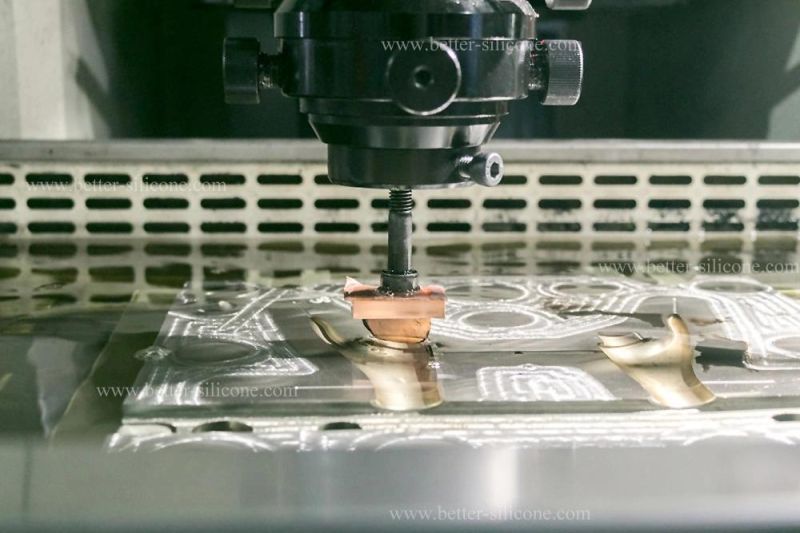

8	Process	CNC, high speed carve, EDM, wiring-cutting, drill, polish etc
8	Quality	ISO9001:2000 Certificate
9	Lead Time	10-30 workdays depends on the different products
10	Package	Wooden Case Package or according to customer requirement

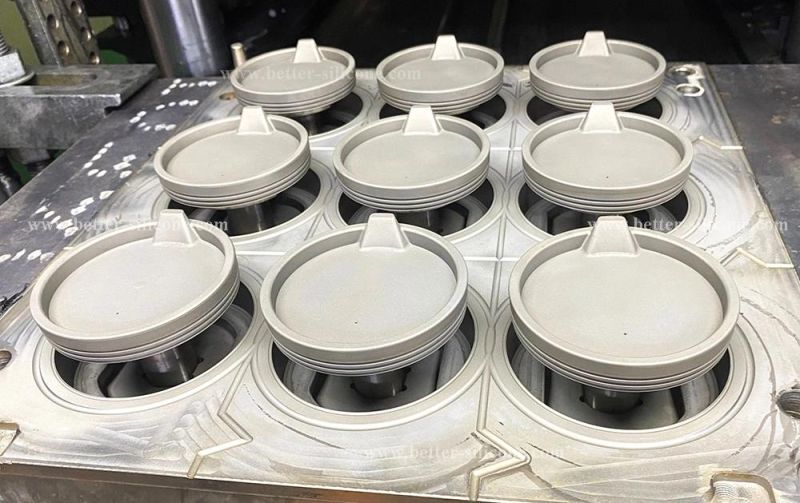

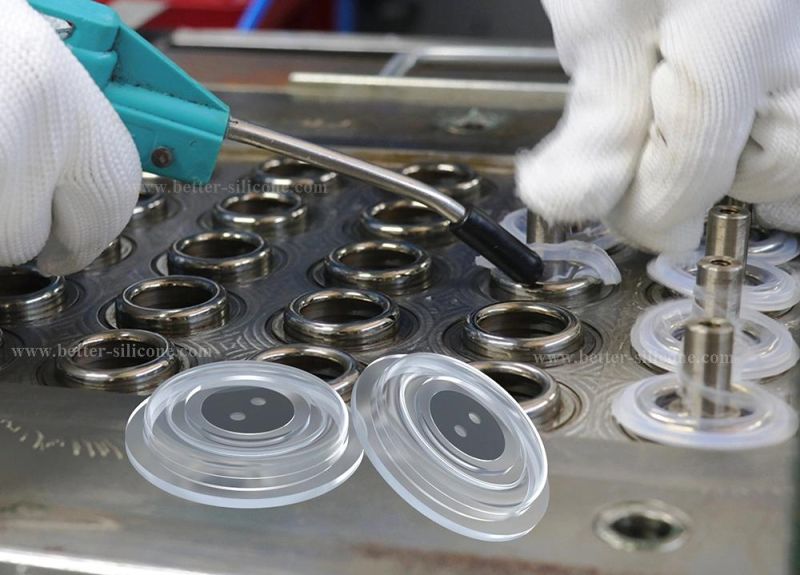

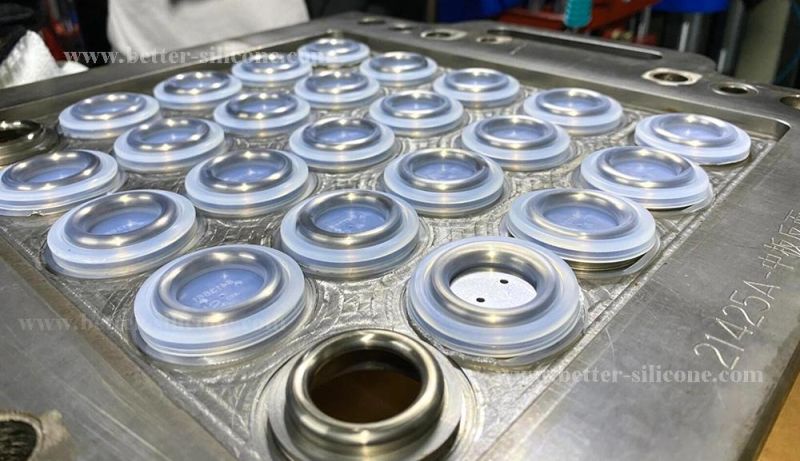

Silicone compression mould with moving core
(ejecting mechanism: help to take out product from mold and avoid product from pulling injury/damage)

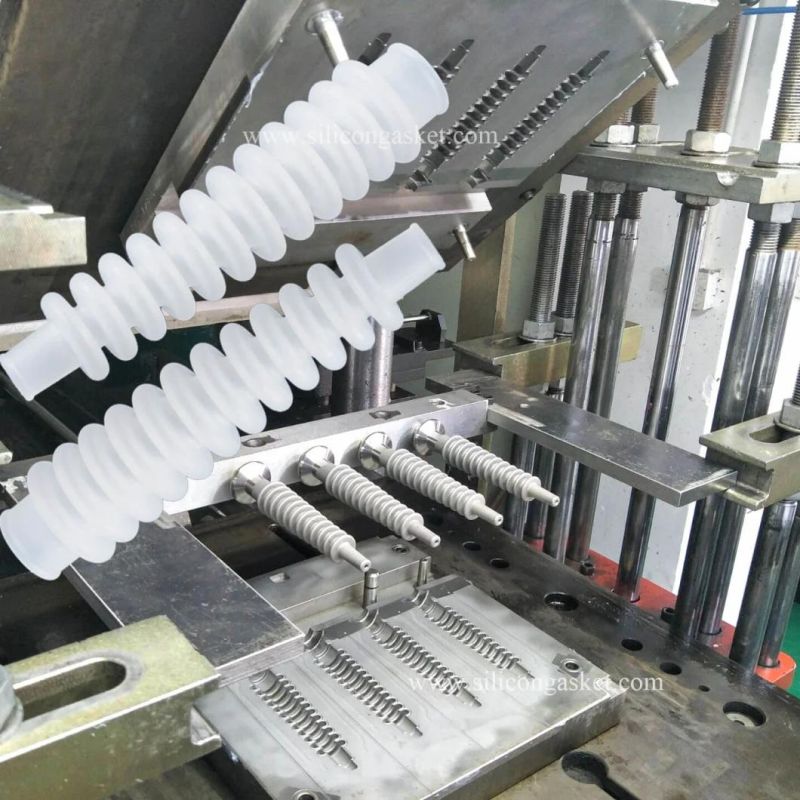

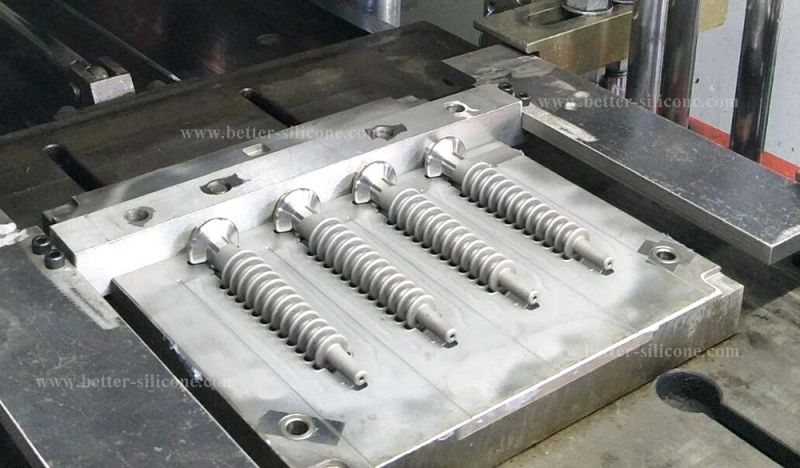

Rubber compression mold with mold keel
(Mainly for some product with hollow-design structure)

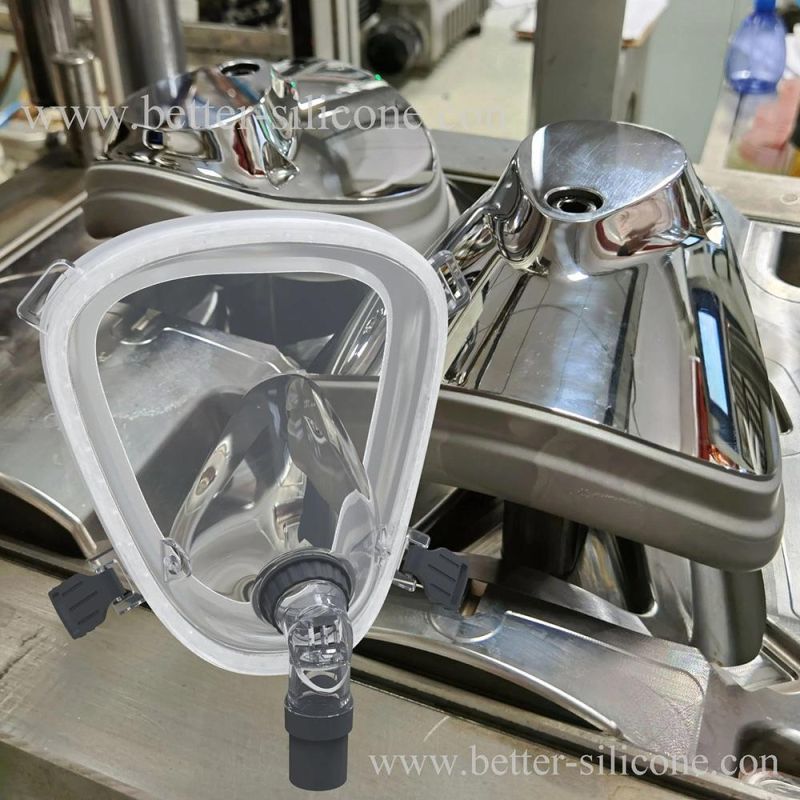

Silicone rubber compression mold with middle plate
(Mainly for some product with undercut-design structure)

Silicone Compression Mold Types:

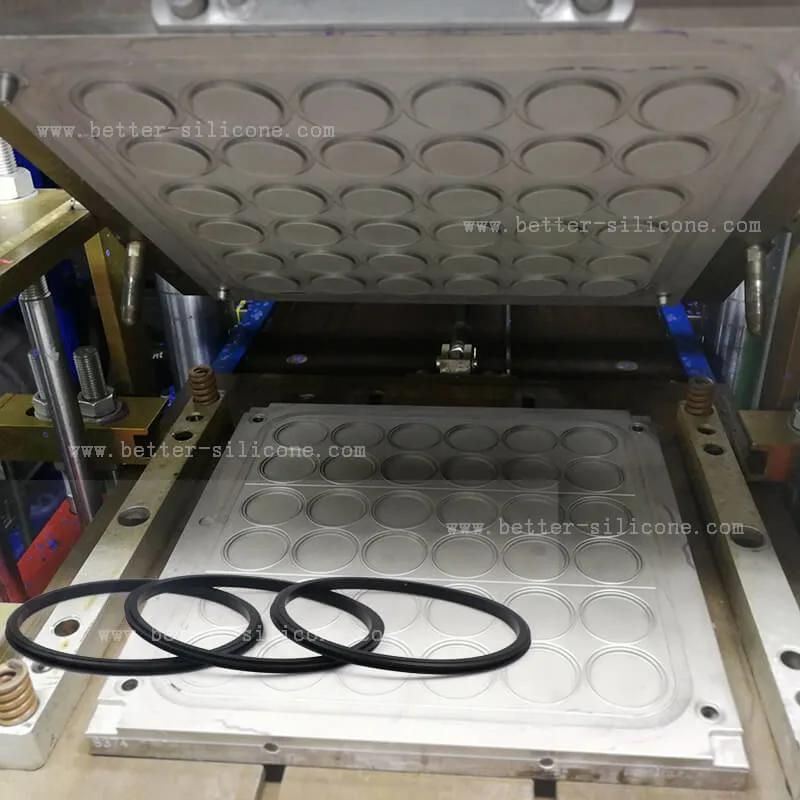

Two-Plate Compression Mold

Three-Plate Compression Mold

Rubber Transfer Injection Mold



Quickly Quotation Demands For Rubber Mould
1.2D/3D designs Drawings, Samples, or other basic information
2.Materials Demands:Rubber ID(Rubber, Solid Silicone/LSR )
3.Mold Cover/Base Steel Demands(or mold shot life).
4. Surface Demands.
5. Sizes Tolerance Demands: +/-0.005mm - +/-0.3mm

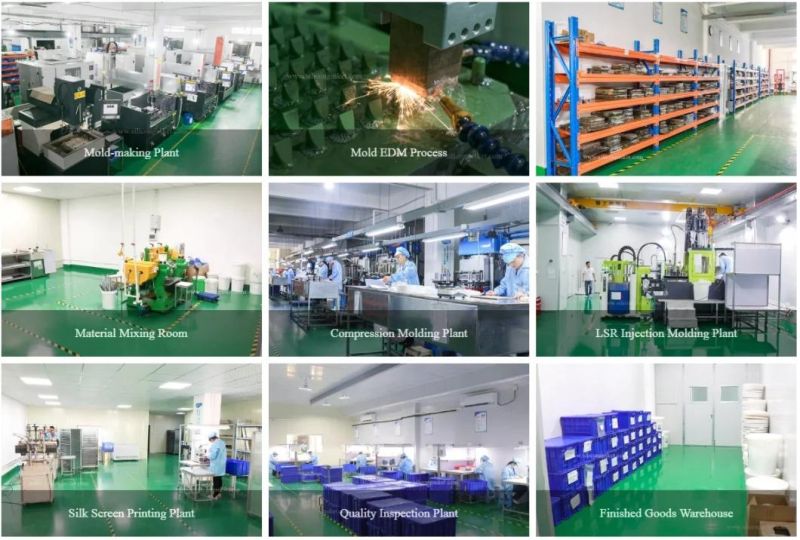

Our Factory
Xiamen Better Silicone Rubber Co., LTD, established in the year of 2018, is the production base of Xiamen Better Silicone Import and Export Co., LTD (established in 2015), who is specialized in manufacturing precision silicone rubber parts, LSR (liquid silicone rubber) parts and plastic components. Better Silicone aims at providing the comprehensive one-stop solutions and service throughout the entire production process, from product design analysis, mold design and mold making, sample & prototype, mass production stage and then ready-to-use products (finished product). Our Products can be widely used in Electronic Field, Medical Field, Auto parts & machinery parts field, etc.
