• Cycle Time：10-300S, According to Product, Cavity and Machine
• Mold Life：300,000 Shots - 1,000,000 Shots
• Mold Base：Lkm, Hasco, Dme or Upon Customer′s Requirement
• Ejection System：Stripper Plate, Lifter, Push Bar, Ejection Pin
• Gate Type：Fan Gate, Sub Gate, Pinpoint Gate, Valve
• Steel Treatment：Heat Treatment, Nitriding, Chrome Plating
• Mold Steel：P20,Nak80,SKD11,S316,S50c,S45c,718h,718 or Custome
• Customized：Customized
• Standard：Hasco, Dme
• Certification：CE, ISO
• Installation：Semi Fixed
• Design Software：Ug, PRO-E, Autocad
• Runner：Hot Runner
• Model NO.：HW-201104-1
• Transport Package：Wooden Case for Mould
• Specification：According to customers′ drawings
• Trademark：HOWE,OEM
• Origin：Dongguan, China
• HS Code：8480719090
• Production Capacity：300-400 Sets,Year

Basic Info.

Model NO. HW-201104-1 Runner Hot Runner Design Software Ug, PRO-E, Autocad Installation Semi Fixed Certification CE, ISO Standard Hasco, Dme Customized Customized Mold Steel P20,Nak80,SKD11,S316,S50c,S45c,718h,718 or Custome Steel Treatment Heat Treatment, Nitriding, Chrome Plating Gate Type Fan Gate, Sub Gate, Pinpoint Gate, Valve Ejection System Stripper Plate, Lifter, Push Bar, Ejection Pin Mold Base Lkm, Hasco, Dme or Upon Customer′s Requirement Mold Life 300,000 Shots - 1,000,000 Shots Cycle Time 10-300S, According to Product, Cavity and Machine Transport Package Wooden Case for Mould Specification According to customers′ drawings Trademark HOWE/OEM Origin Dongguan, China HS Code 8480719090 Production Capacity 300-400 Sets/Year

Product Description

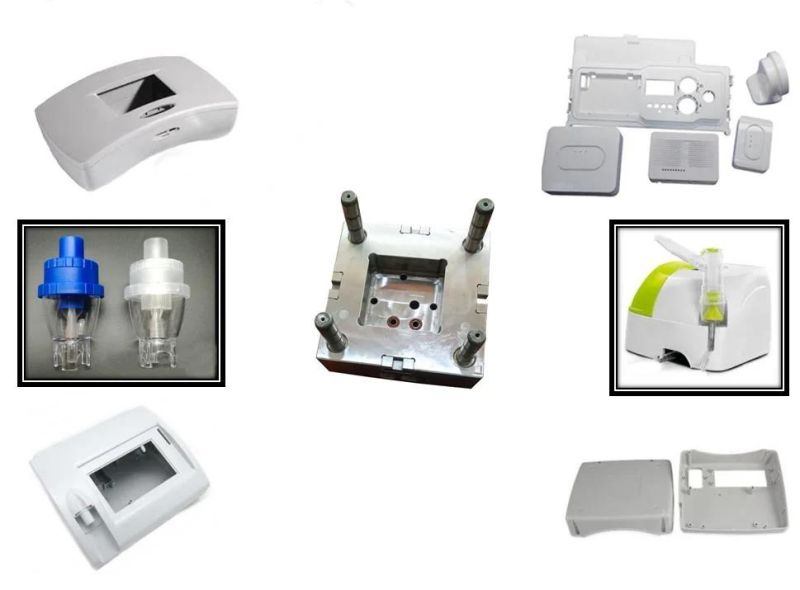

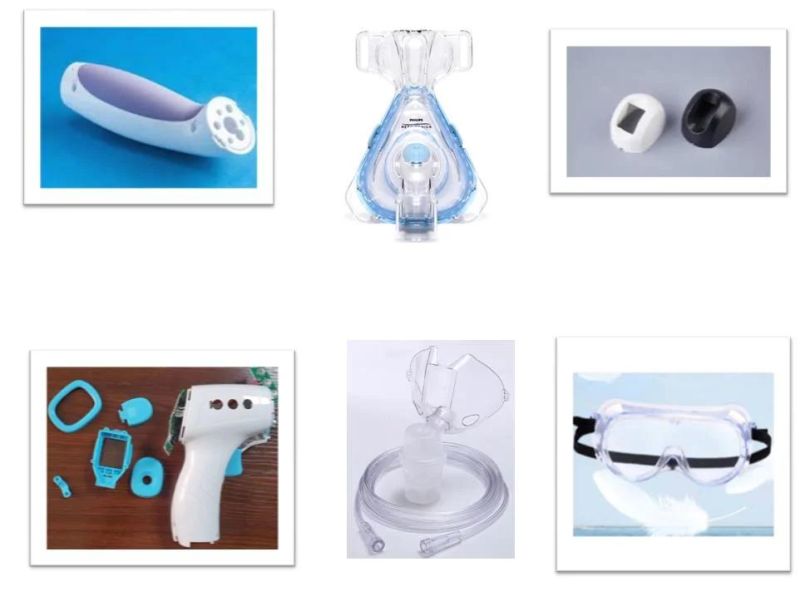

Hospital Ventilator and Oxygen Therapy Equipment Plastic Medical Parts injection mold

As for medical consumables mold, the mould dimension should be controlled in precision. For such products, Howe Mould always uses high-speed milling machines and some other high precision tooling machines to deal with it, the dimension tolerance controlled in 0.01mm.

Mold information

Product name	High-quality OEM medical parts plastic injection mould
Mould base material	S50C, P20.73H8, 718H, H13, NAK80, S136, etc
Material of mold core	P20, 718H, 738H, H13, 420, etc
Cavity No.	Single or multi
Runner	Hot runner/cold runner
Mould size	Based on sample
Mould structure	Automatic knockout, self-lock
Mould lifetime	300,000-1,000,000 shots
Lead time	20-35days
Packing terms	Wooden case
Guarantee	Advanced mold design technology, high precision CNC strictly QC & QE,to ensure high quality of molds.

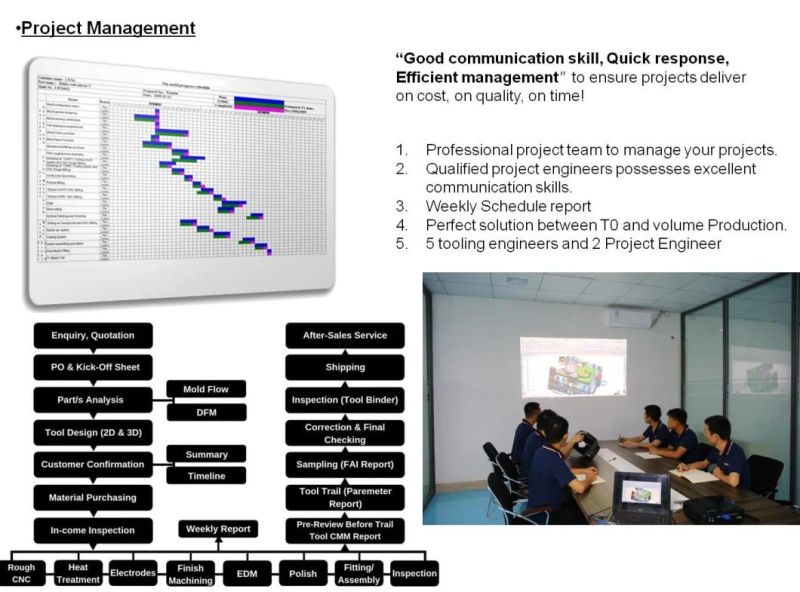

Mold making process

STEP	DETAIL
1.Enquire /Quote	Discuss with customers after received buyer's samples or drawings.
2.Negotiation	Quality,Technique requests,Mould material,Price,Delivery time,Payment,etc.
3.Place order	Sales contract + proforma invoice.
4.prepaid	Customer T/T deposit to us to start to design mould.
5.Mould design	We will communicate&exchange the opinion with customers during making drawing according to the sample.
6.Design confirmation	Send mould drawings to customers for confirmation.
7.Mould processing	Start to manufacture, we will send photos to show the tooling process.
8.Sample confirm	Send the sample or as negotiation.
9.Mass production	If customers need mass production plastic products, We can also






Medical Components Mold manufacturer - Howe Mould

As for medical consumables mold, the mould dimension should be controlled in precision. For such products, Howe Mould always uses high-speed milling machines and some other high precision tooling machines to deal with it, the dimension tolerance controlled in 0.01mm.
We have a full array of machining services available, including CNC milling, Mill/Turning and EDM. We have a comprehensive line of CNC machinery to handle various material types as well as a broad range of part sizes.
We focus on lean manufacturing, make use of live tooling, and have extensive experience with tight tolerance control in complex assemblies, this allows us to save time and material during frequent machine changeovers.
We also have the ability to provide statistical data at the machine as well as IQ, OQ, PQ studies for your validation needs.


Why Choose Us?

1. Manufacturing and exporting experience for nearly 10 years. ISO 9001 approved.
2. Products are supplied to over 50 countries.
3. One-stop service for plastic injection mold and parts. Save time and save money for you.
4. In-house mold design and building capabilities.
5. No reclaimed material used to ensure high quality.
6. Keep secret to your idea and your design.
7. 24 hours (two shifts) / 6 days for production.
8. Professional design team, mold maker engineer. OEM/ODM service.
9. Professional QC and R&D teams to assure high quality.
10. Professional sales engineering team.
11. Prompt delivery. For prototype: 3-7 days. Production orders can be arranged specially to meet customer's urgent demands.
12. Geographical advantages: within 30 minutes to airport or sea port, near to Hongkong.


Company profile

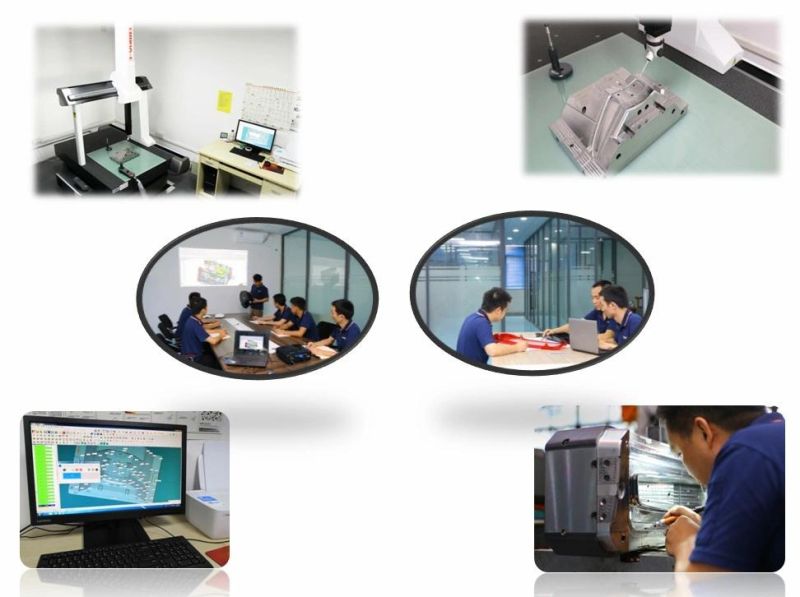

Quality Control




Our Services

Howe is a company specializing in the design and manufacture of high-quality plastic injection molds and injection molded parts for the international market and have been
engaged in the manufacturing sector since our inception is an OEM/ODM factory, customized your products to meet your needs is our advantage, We are managed by a group of professionals with many years of experience in mold design, molding technology and Quality control. We have developed an excellent understanding of the technical and quality requirements needed. We build tools to fit your expectations and match your quality standards.Our team of CAD designers will ensure that your imagination is incorporated into the actual product! If you want to create prototype or mass-produce in a very specific project, we can help you achieve your vision!

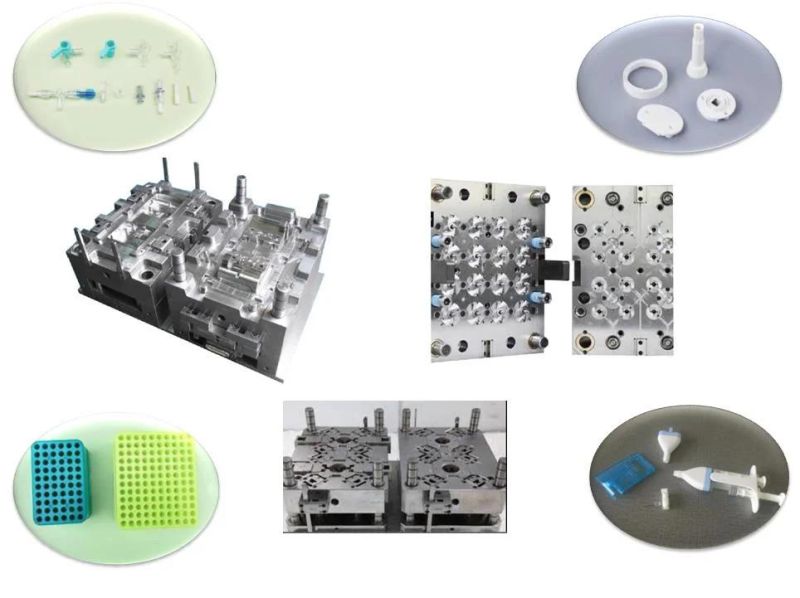

Our products include :
1.Custom Plastic Injection Parts
2.Multi-cavity plastic parts
3.High Precision Molds
4.Insert & over molding
5.Double Shot Mold(2K mold)
6.Unscrewing Molding
7.Gas-assisted Molding
8.Die Casting Molding
9.Prototype plastic parts and Low cycle plastic parts molding
10Gas Assist molding
11.Elastomeric molding
12.IML & IMD part production
13.Thin wall plastic molding
14.High temperature molding



Our team

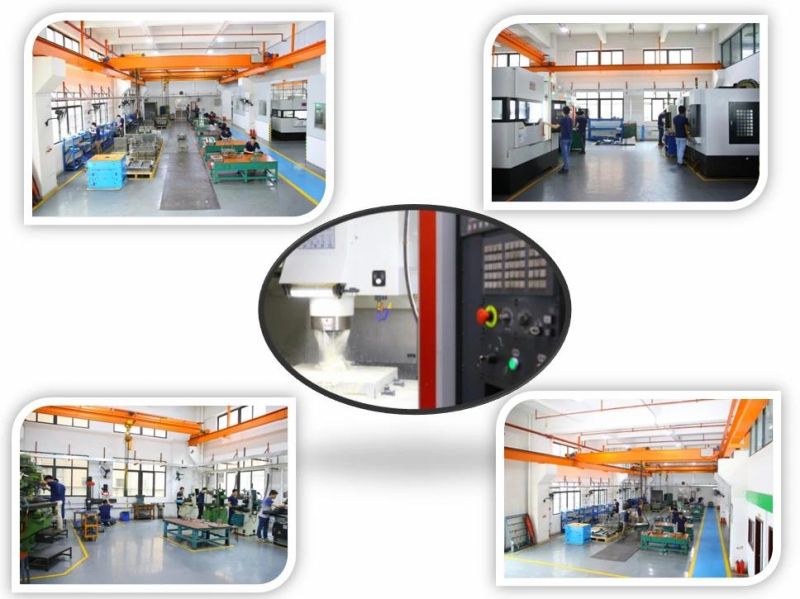

Our workshop

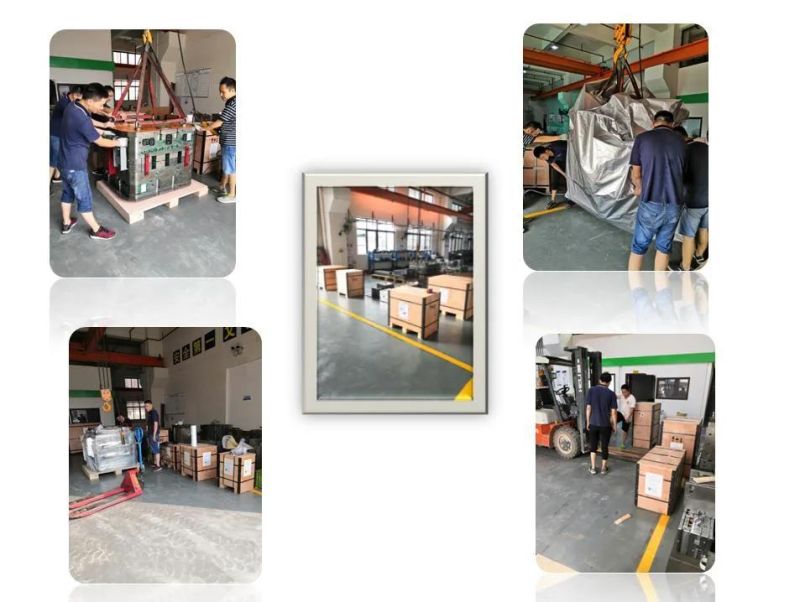

Packaging detail








FAQ about Plastic injection mold

Q1: What kind of molds do you make?
A1: We are mainly making plastic injection mold and die-casting mold.
Sometimes we also make rubber molds according to our customer's requirements.

Q2: Do you build hot runner plastic moulds?
A2: Yes. We build hot runner Plastic Moulds and specialized in many different systems, such as
DME, Master,Mastip, Hasco, Yudo, Incoe, Husky,etc.
The manifold recommended for your tool is selected to meet your individual needs.

Q3: What types of files do you accept (drawings)?
A3: With our CAD systems we can accept the following files:
STP, IGS, DXF, DWG, Cad Key PPT, STL, X_T, CATIA, UG files, etc.

Q4: What kind of steel do you use for plastic mouldings?
A4: We can use any type of steel appointed by customers or popular in the market.
Such as P20, 718, 8407, NAK80, H13, S136, DIN 1.2738, DIN 1.2344, etc.

Q5: Can you provide the steel certificate and heat-treatment certificate?
A5: Yes, We can provide a steel certificate or hardness certificate to prove.

Q6: Can you make the texture/text/heat-treatment/nitriding for the injection mold plastic?
A6: Yes, As a plastic mold factory, we have long-term cooperated subsidiary factories
that do those processes. They are professional and well reputed in our local market.

Q7: How long is the lead-time for a plastic injection mold?
A7: It all depends on the mold's size and complexity. Normally, the lead time is 25-45days.
If the Plastic Mouldings are very simple and not big size, we can work out within 15 days.

Q8: Do you make spare parts for your customer?
A8: Yes, we will provide spare parts for the mold if needed or required by clients.

Q9: How do you pack the plastic moulds?
A9: We pack the plastic moulds with a wooden box.
There are the main 3 operation steps.
First Step: We daub some rust preventive oil on the mold.
Second step: We pack the mold with thin plastic film to avoid moisture.
Third step: We put this plastic film packed mold in a wooden box, and fix it to avoid any movement.
