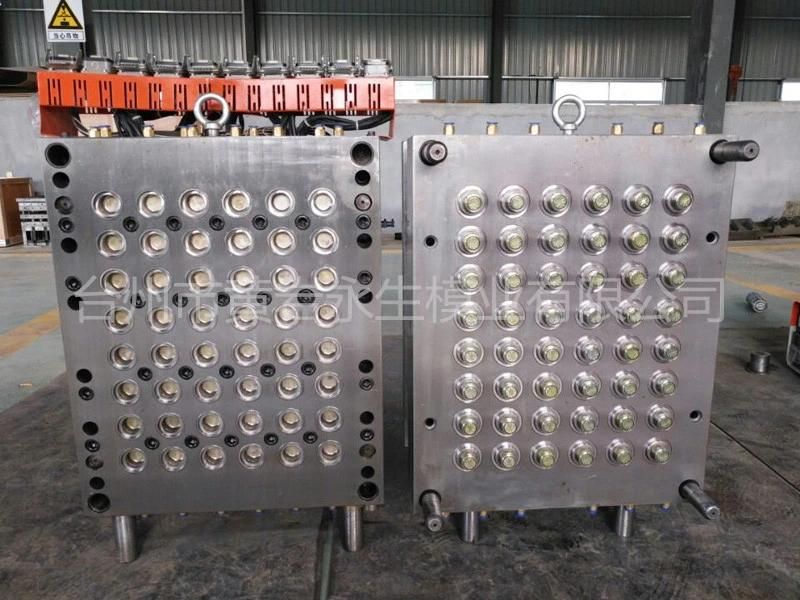

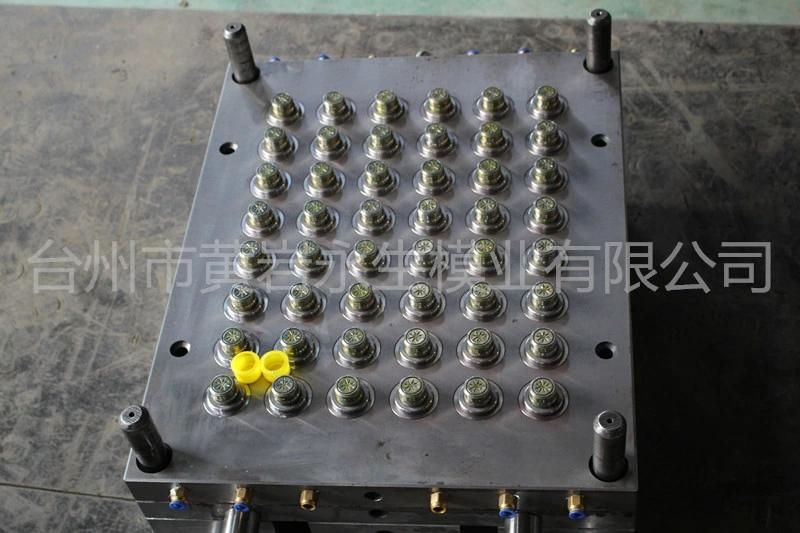

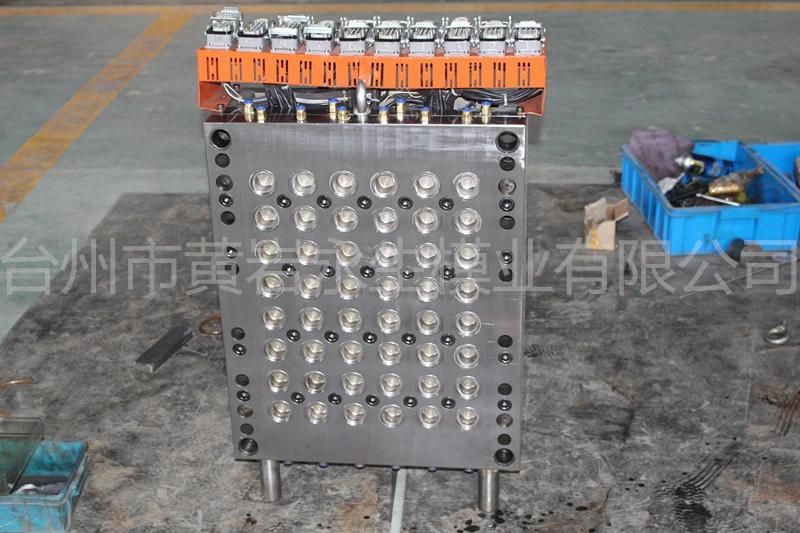

48 Cavities Hot Runner Plastic Injection Cap Mould

Taizhou Huangyan Yongsheng Mould Co., Ltd.
  • Process Combination Type：Single-Process Mode
  • Plastic Material：PE
  • Mould Cavity：Multi Cavity
  • Surface Finish Process：Polishing
  • Shaping Mode：Injection Mould
  • Application：Household Appliances, Commodity, Home Use, Water Bottle

Base Info

  • Process：Hot,Cold
  • Warranty：3, 000, 000 Times
  • Polish：High Polish
  • Mould Matieral：P20 S136 2316 #45 718, Copper
  • Cavity：2,4,8,12,16,18,20,24,28,32,36,48
  • Size：28mm,30mm,32mm,34mm,36mm,40mm
  • Customized：Customized
  • Standard：Standard
  • Installation：Fixed
  • Design Software：UG
  • Runner：Hot Runner
  • Model NO.：YS20170304777
  • Gate：Pin Point
  • Transport Package：Wooden Package
  • Specification：SGS
  • Trademark：Yongsheng
  • Origin：China
  • HS Code：8480719090
  • Production Capacity：500sets,Year

Description

Basic Info.

Model NO. YS20170304777 Runner Hot Runner Design Software UG Installation Fixed Standard Standard Customized Customized Size 28mm/30mm/32mm/34mm/36mm/40mm Cavity 2/4/8/12/16/18/20/24/28/32/36/48 Mould Matieral P20S1362316#45718/ Copper Polish High Polish Warranty 3, 000, 000 Times Process Hot/Cold Gate Pin Point Transport Package Wooden Package Specification SGS Trademark Yongsheng Origin China HS Code 8480719090 Production Capacity 500sets/Year

Product Description

48 Cavities Hot Runner Plastic Injection Cap Mould
48 Cavities Hot Runner Plastic Injection Cap Mould
48 Cavities Hot Runner Plastic Injection Cap Mould
48 Cavities Hot Runner Plastic Injection Cap Mould
48 Cavities Hot Runner Plastic Injection Cap Mould

Saving 10%-30% cost than others.

1. Direct factory price
2. Life: 5, 000, 000 time
3.2D and 3D provided
4. Diliver time: 25-35 days

28mm Plastic Sealing Ring  Cutting Cap Mould (YS88)

Mould details:

1. Design 3D drawing for customers' confirmation according to their 2D drawning or sample when placing to order.

2. Mould Matieral: Different grade: P20, S136, 2316, H13, #45etc.

3. High Technology: Advanced second-level taper positioning technology and slide- type independent self-locking, hence the concentricity of the product is guaranteed.

4. Independent temperature control & heating system Which boasts an even heating temperature and keeps product with reliable and stable quality.

5. Cavity: Depend on your selection, 1, 2, 4, 8, 12, 18, 24, 36, 48...All inserts can be interchangable.

6. Product matieral: PE/PP/PVC/PET, ect

7. Quick deliver time: 25-60 days

Any inquiry, pls contact us
thanks!

 1 Sample or 2D drawing from customer
 2 Build 2D and 3D drawing
 3 CAD mould design
 4 Parts inspection / CNC machining / EDN machining
 5 Mould assembly
 6 Mould test
 7 Sample confirm
 8 Deliver the mould
