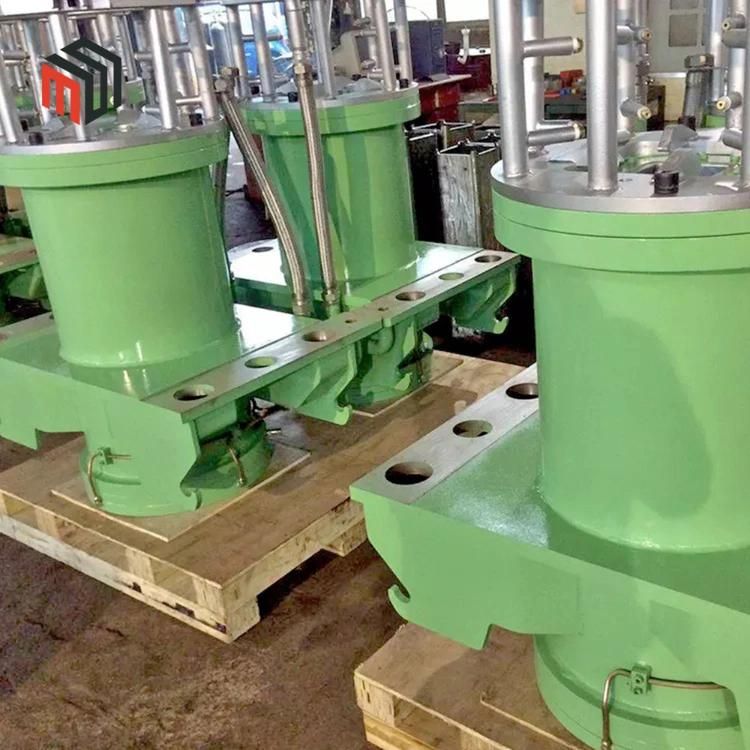

Introduction of Mould jacket assembly in steelmaking industry
Mould jacket assembly is a key part of the continuous casting machine, and its structural performance directly affects the production and quality of the continuous casting billet.


Types of Mould jacket assembly in steel making
The billet and rectangular billet Mould jacket assembly for ccm is mainly composed of the following parts: mold copper tube, outer water jacket, diversion water jacket, upper and lower sealing flanges, various sealing rings, foot roller device, foot roller area spray Device. The core part is the mold copper tube, and other parts are assembled around the copper tube.

The round billet Mould jacket assembly for ccm is mainly composed of the following parts: mold copper tube, outer water jacket, diversion water jacket, upper and lower sealing flanges, various sealing rings, foot roller device, foot roller area spray device. Like the square billet and the rectangular billet, the core component of the round billet Mould jacket assembly is the mold copper tube, and other components are assembled around the copper tube. The key to the assembly of the round billet Mould jacket assembly is to prevent the copper tube from rotating and to ensure that the copper tube is positioned correctly along the inner and outer arc directions. The Mould jacket assembly should be subjected to a hydraulic penetration test, the test pressure is 1.2-1.5 times the working pressure, and it should be kept for 30 minutes without leakage.


The Mould jacket assembly should have the following characteristics: light weight and good structural rigidity, good inertia force when vibrating, simple structure, convenient disassembly and assembly, adjustment, and easy processing and manufacturing.



Specification of Mould jacket assembly
Casting radius: R4000~R12000mm
Billet size: 60x60 - 500x500 100x240 - 300×500   φ90 - φ500
Cooling jacket: integrated or segmented stainless steel
Water gap: 4mm (it will change as per different copper mould tube design requirement)
Water pressure:>1.0MP
Seed of the cooling water:10-12m~16m/S

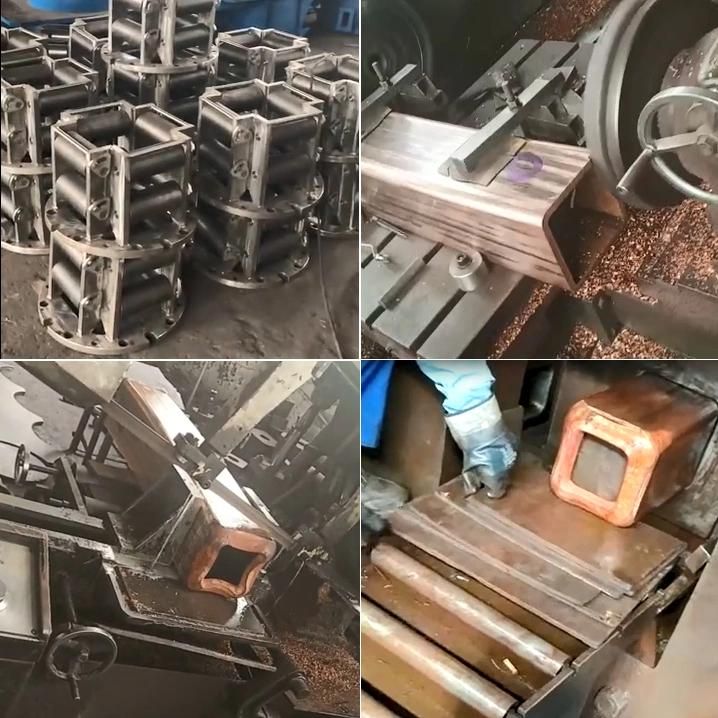

Production Process of Copper mold tube for continuous casting machine
MELTING & CASTING --- HOT EXTRUSION/FORGING --- COLD DRAWING --- TAPERING --- MACHINING --- ELECTROPLATING --- MACHINING AFTER ELECTROPLATING --- FINAL INSPECTION --- PACKING



Package for Mould jacket assembly in steel making industry
