China Abrasive Tungsten Wire Carbide Drawing Die/Drawing Mold
Zhu Zhou Evergreen Hardmetal Tools Co., Ltd.- Hole Type：Round Mould
- Shaping Mode：Die Casting
- Material：Steel
- Type：Tungsten carbide nib
- Cavity：Single-cavity
- Surface Treatment：Blank
Base Info
- Tolerance：+,-0.001mm
- Standard：JIS, GB, DIN, BS, ASTM, AISI
- Purity：>99.5%
- Grain Size：Ultra Fine, Extra Fine
- Mould：2000set More
- Delivery：Very Fast
- Free Sample：Available
- Customized：Customized
- Warranty：1 Year
- Certification：ISO
- Model NO.：Tungsten Carbide Wire Drawing Die
- Transport Package：Small Box Inside a Carton
- Specification：tungsten and coblat powder
- Trademark：Evergreen or OEM
- Origin：China
- HS Code：8209009000
- Production Capacity：3 Tons, Month
Description
S11-8 6 0.3-1.0 0.3-0.6 14° 10 8 0.7 0.6 14° 13 10 0.4-2.8 0.3-1.6 16° 15 13 0.5-3.0 0.3-1.4 16° 16 14 0.4-3.8 0.3-1.8 16° 20 17 1.2-4.7 2.0-2.6 18° 21 17 1.8-5.7 1.2-3.0 18° 22 18 1.7-6.4 1.2-3.0 18°
Type W

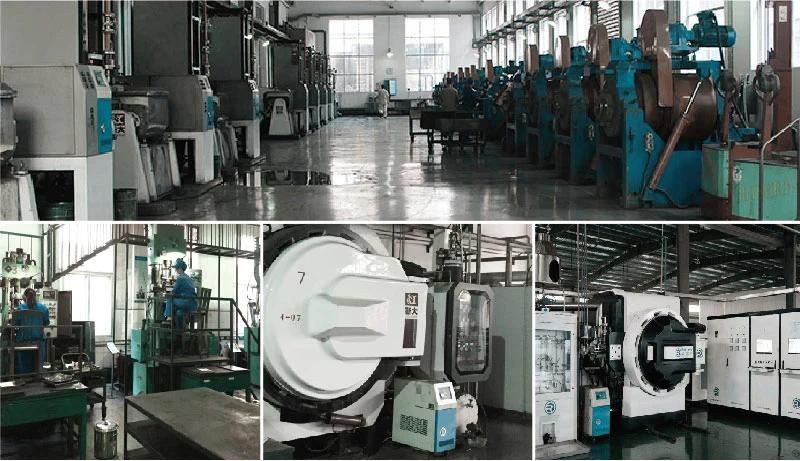

Facility Showcase
About us
Zhuzhou Evergreen hardmetal Tools Co., Ltd., is a professional manufactuer of cemented carbide products in China, we have been in this line for more than 25 years. The tools made from us are with long life time and stable machining performance. If there is any interest please feel free to let us know, free samples are available.
Contact Us
Belinda
+86 19973330313
Zhuzhou Evergreen hardmetal Tools Co., Ltd.
Your Inquiry Will be much appreciated and Replied the Soonest.

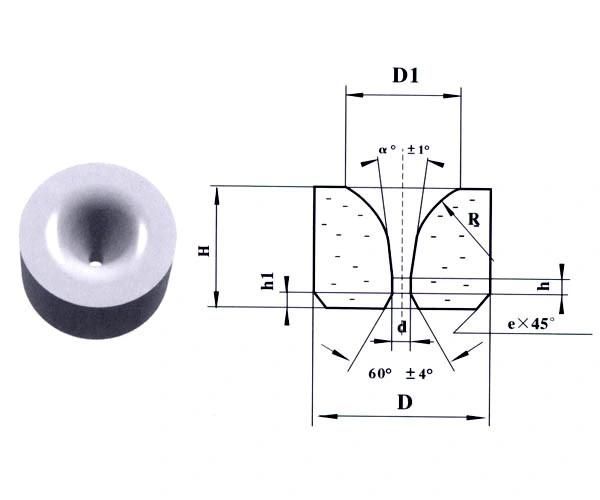

Type W
| Type | D | H | d | h | α° |
| W102-d | 9 | 6 | 0.4-1.3 | 0.4-0.7 | 12° |
| W103-d | 12 | 8 | 0.2-2.7 | 0.5-1.4 | 14° |
| W104-d | 15 | 10 | 0.5-5.0 | 0.5-2.0 | 14° |
| W105-d | 20 | 14 | 1.0-7.5 | 0.8-2.0 | 14°-16° |
| W106-d | 25 | 18 | 5.3-8.0 | 1.9-2.2 | 16° |
| W107-d | 30 | 22 | 2.9-11.7 | 2.2-3.6 | 16° |
| W108-d | 35 | 25 | 6.0-16.0 | 2.5-4.8 | 16° |
| W109-d | 40 | 27 | 10.3-16.5 | 3.2-4.6 | 18° |
| W110-d | 50 | 30 | 14.4-19.4 | 4.4-4.8 | 18° |
| W111-d | 60 | 35 | 18.5-27 | 4.8-5.6 | 18° |
| W112-d | 70 | 40 | 24.5-31.5 | 5.4-6.0 | 18° |
