• Die Size 2 Height：20mm
• Die Size 1 Height：18mm
• Punch Length：77mm
• Die Hardness：HRC 58-60
• Punch Hardness：HRC 60-62
• Die Material：De,SKD11
• Punch Material：M2,HSS,Skh51
• Parts Detection Method：Measurement of Three Axis NC
• Milling Speed：Normal Speed
• Mold Cavity Technology：EDM Milling
• Driving Motor Type：Permanent Magnet
• Model NO.：TRUMPh TYPE
• Machine：Trupunch
• Machine Type：Trumatic
• Transport Package：Plastic Box
• Origin：China
• HS Code：8207300090
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. TRUMPh TYPE Driving Motor Type Permanent Magnet Mold Cavity Technology EDM Milling Milling Speed Normal Speed Parts Detection Method Measurement of Three Axis NC Punch Material M2/HSS/Skh51 Die Material De/SKD11 Punch Hardness HRC 60-62 Die Hardness HRC 58-60 Punch Length 77mm Die Size 1 Height 18mm Die Size 2 Height 20mm Machine Trupunch Machine Type Trumatic Transport Package Plastic Box Origin China HS Code 8207300090 Production Capacity 50000PCS/Year

Product Description

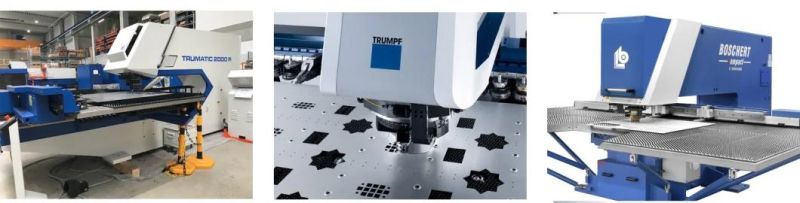

Trumph STYLE TOOLING suitable for TRUMPL,BOSCHERT,EUROMAC,HACO,PULLMAX

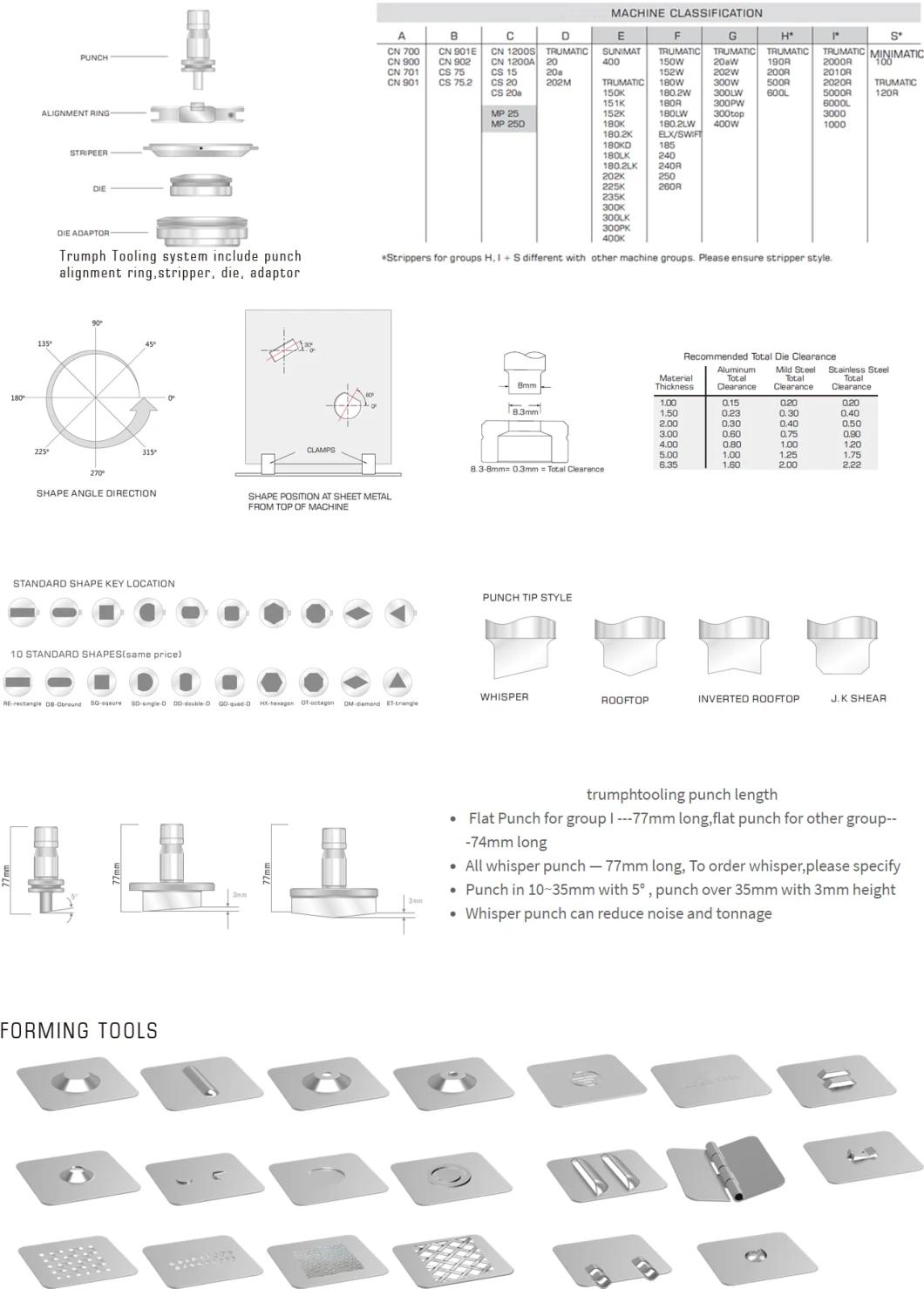

TRUMPH Tooling products range

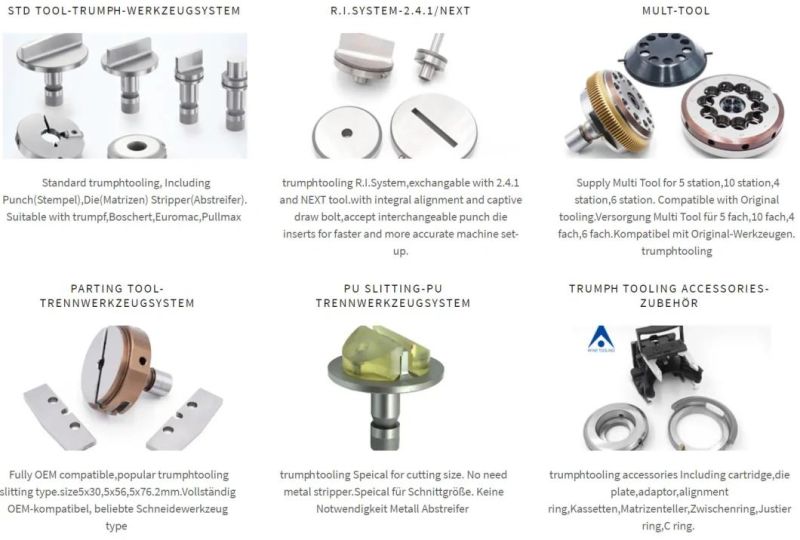

Δ. Standard trumph tooling, Including Punch(Stempel),Die(Matrizen) Stripper(Abstreifer). Suitable with trumph,Boschert,Euromac,Pullmax
Δ.trumph tooling R.I.System,exchangable with 2.4.1 and NEXT tool.with integral alignment and captive draw bolt,accept interchangeable punch die inserts for faster and more accurate machine set-up.
Δ.Supply Multi Tool for 5 station,10 station,4 station,6 station. Compatible with Original tooling.Versorgung Multi Tool für 5 fach,10 fach,4 fach,6 fach.Kompatibel mit Original-Werkzeugen. trumph tooling
Δ. Fully OEM compatible,popular trumph tooling slitting type.size5x30,5x56,5x76.2mm.Vollständig OEM-kompatibel, beliebte Schneidewerkzeug type
Δ.Trumph tooling Speical for cutting size. No need metal stripper.Speical für Schnittgröße. Keine Notwendigkeit Metall Abstreifer
Δ.Trumph tooling accessories Including cartridge,die plate,adaptor,alignment ring,Kassetten,Matrizenteller,Zwischenring,Justierring,C ring.

Punch material: M2-SKH51-High speed steel, Hardness HRC 60°-64°,Japan M2--JP M2 available,addons.
Die material:D2-SKD11, Hardness HRC 58°-60°

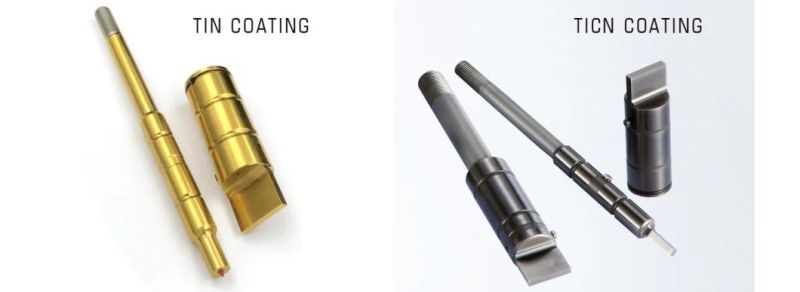

TIN/Maxima coating optional and vailable,improve double punch life
TICN/ Optima coating optional and vailable,improve four times punch life



Standard shape:Rectangle,Square,Oblong,QR,QD,Single D,Double D,Hexagon,Octagon

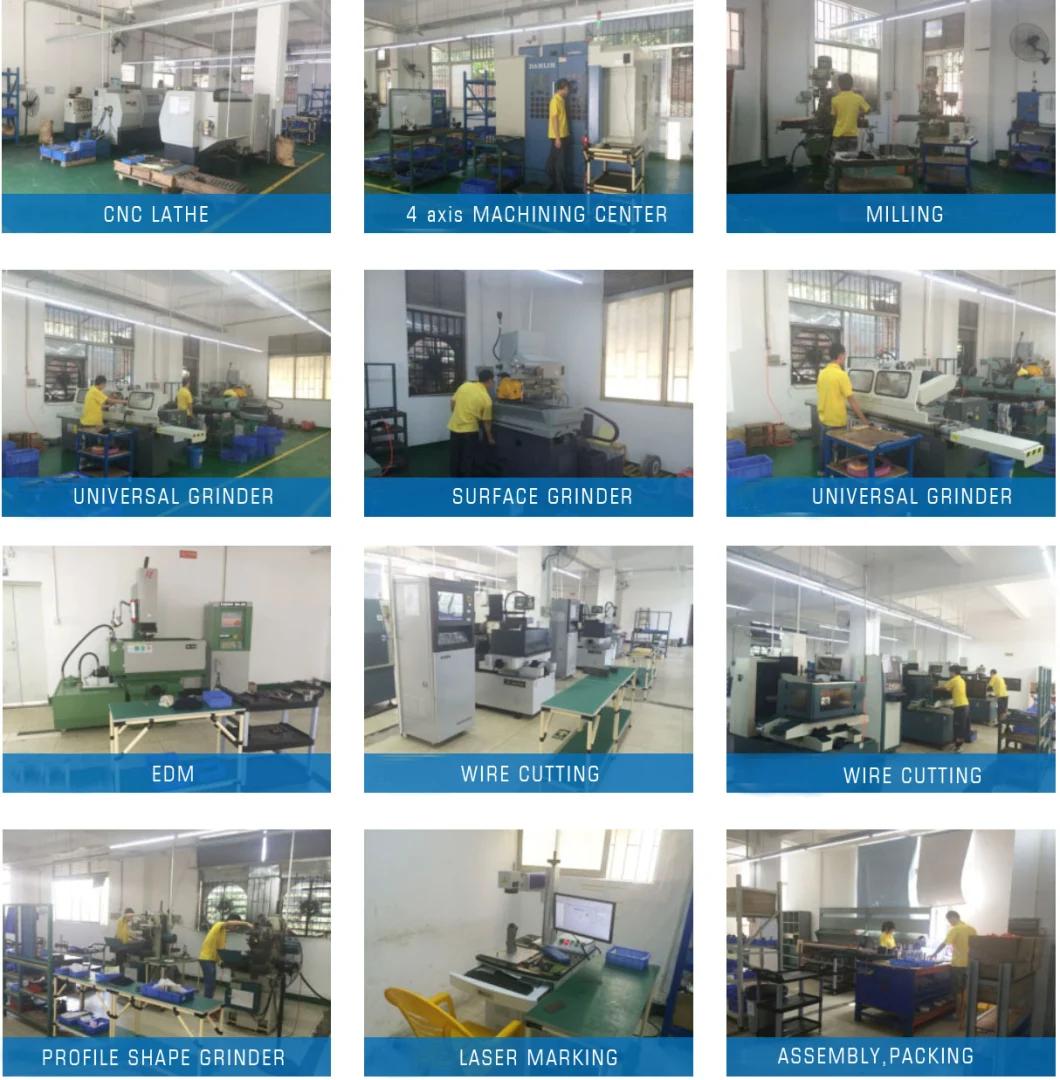

FACTORY CAPACITY


AFAB Exhibition



Production leading time: Std shape 3-5 days, Special shape 4-5 days,Forming tooling 5-10 days.Coating need extra 3-4 days

Package: Extra thick carton or poly wood case.  Deliver by DHL,TNT,UPS,FEDEX,AIRLINE
