• Trademark：HENGXIN
• Specification：12 Cavity
• Transport Package：International Standard Wooden Box
• After-sales Service：One Stop Service
• Customized：Customized
• Origin：Huangyan, Taizhou, Zhejiang, Cn
• HS Code：8480710000
• Production Capacity：600 Sets,Year

Basic Info.

Customized Customized After-sales Service One Stop Service Transport Package International Standard Wooden Box Specification 12 Cavity Trademark HENGXIN Origin Huangyan, Taizhou, Zhejiang, Cn HS Code 8480710000 Production Capacity 600 Sets/Year

Product Description

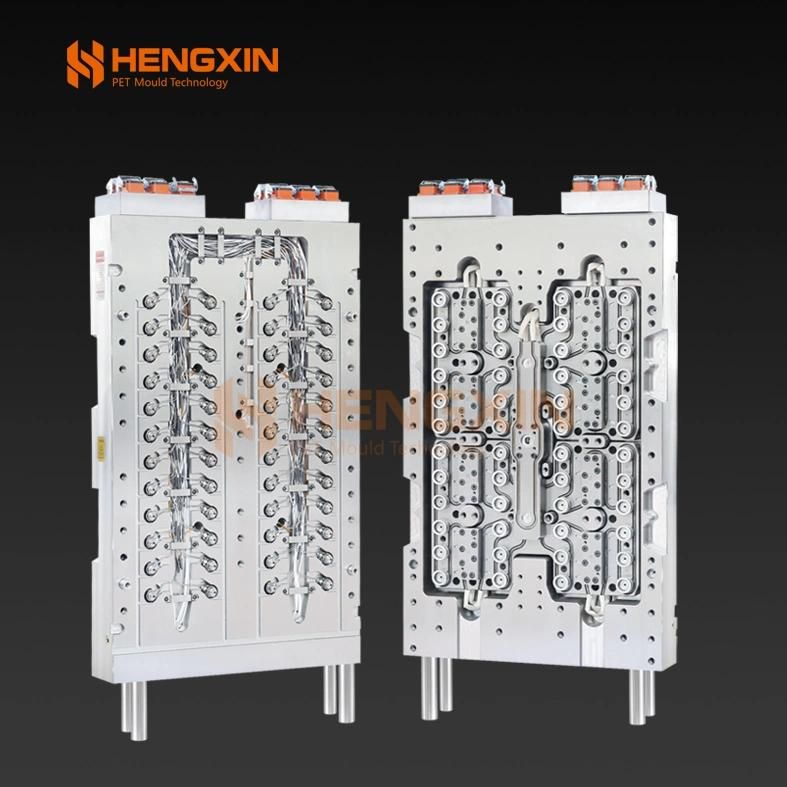

WIDE-MOUTH JAR  PET PREFORM MOULD STRUCTURE:
1-Hot runner
2-Pneumatic Pin-valve gate
3-Self-lock system
4-Finished production: No-tail preform
5- Fountain Water Cooling,

ADVANTANGES OF PET  PREFORM MOULD FROM OUR COMPANY:
1---PET preform design
We have a best customized preform or PET bottle designer group in our city(Taizhou city) according to our 30 years' experience.
We know better:
How to lightweight preform to save your cost;
How to design preform to blow special-shaped bottle ;

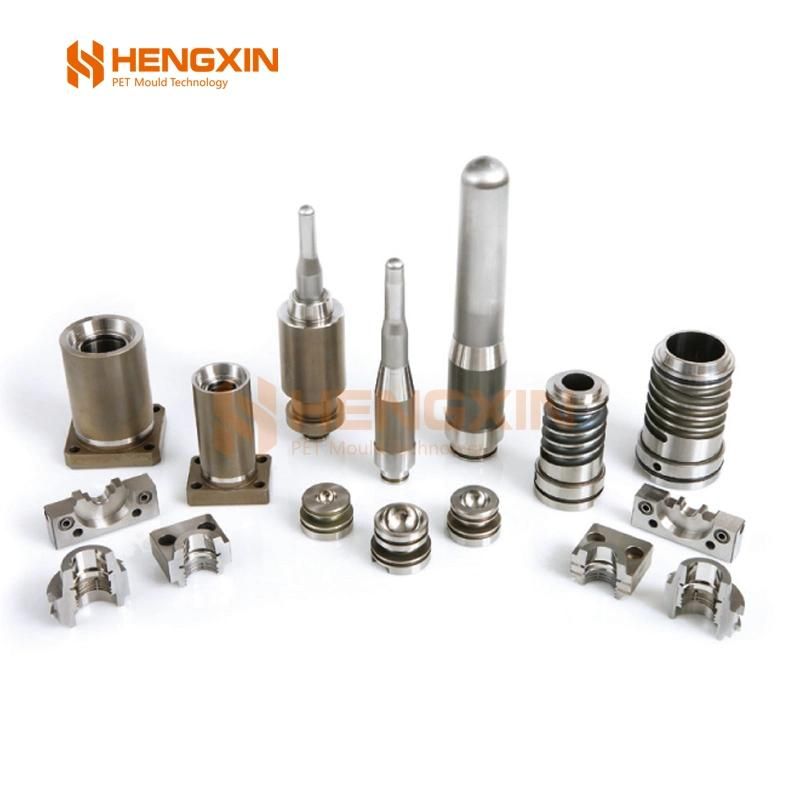

2---Mould screw neck material and core material and cavity material.
We choose better material than S136 stainless steel to reduce cracking rate.

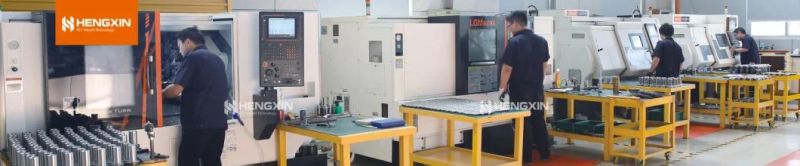

We own a series of high-class CNC lather, NC Milling machine, EDM, carving machine, CNC boring machine, grinding machine and some other high precision machining equipment to realize full numerical control and high efficiency, guarantee the precision manufacturing of key parts.

3---Hot runner system
Nozzle tips are imported from HUSKY oriented supplier.
Better coil heaters and suitable wattage choice can save your energy more than other PET preform mould maker.
Advantaged runner design which is better than other  PET mold makers can solve PET preform leakage problem and improve cycle time and reduce injection pressure.

 4---Water cooling system and Air outlet system.
Water cooling system not only on core, cavity, neck parts, but also on most of plates. Compared with other PET preform mould maker, we increase mold base to make bigger water channels and reduce mold base deformation.
Air outlet system not only on neck parts, but also we improve air outlet system on core with core sleeve at 2021.

5---Preform quality.
We guarantee our preforms with smallest weight tolerance, smallest wall thickness eccentricity and good preform transparency without drawbench, white or yellow in our city (Huangyan city).
6---After-service team and support team
There are 3 engineer always go domestic or oversea to debug and fix to service  machines and moulds.
I always stand by you to give your support all the time.

OUR FLEXIBILITY IS YOUR ADVANTAGE:
PLEASE CONTACT US TO FIND MADE-TO-MEASURE SOLUTIONS:

Prefom weight (grams)	From 4 grams to 1000 grams
Preform Neck size	Cosmetic neck, PCO, 1810,1881,30/25,29/25,38 ,ALASK, ROPP, gallon neck, Jar neck from 53 mm to 250 mm and others
Cavity number	Ranges from 1 to 72 cavities according to your suitable IMM machine.
Injection molding Machine	We produce PET preform molds for all know machine types, such as HAITIAN, YIZUMI, BORCHE, POWERJET, HMAMDA,SOUND,TEDRIC
Mold structure	We can supply you different preform mould structure as your investment and requirement.
Mold base material	P20  , SS420 stainless steel as customer' s requirement
Hot runner	Hot runner system always made and choose by ourselves. YUDO, HUSKY or other famous brand  as your requirement.
Design software	PROE, Cimtron, UG, AutoCAD, CAM, CAE, UG, ect
Application	A wide range of applications in the field of beverages, food and non-food products: still and sparkling mineral water, carbonated soft drinks, milk and dairy products, juices, rtd tea and coffe, isotonic drinks, beer and liquors, detergents, personal care, chemicals, edible oil, sauces and dressing, etc.
Service	One-stop service

CUSTOMER SERVICE ALWAYS HAS THE RIGHT ANSWER TO A CUSTOMER'S NEEDS.
