• Outside Diameter：3-360mm
• Wall Thickness：0.3-20mm
• Plating：Chrome
• Size：100,120,125,150mm
• Advantage：High Casting Speed
• Feature：Optimum Binding Strength
• Shape：Square,Rectangular,Round,Non-Standard,Beam Blank
• Condition：New
• Customized：Customized
• Metal Color：Non-Ferrous Metal
• Warranty：6 Months
• Model NO.：CMT001
• Transport Package：Wooden Package
• Specification：100*100*780-R4000
• Trademark：Shengmiao
• Origin：China
• HS Code：8454209000
• Production Capacity：50000,Month

Basic Info.

Model NO. CMT001 Warranty 6 Months Metal Color Non-Ferrous Metal Customized Customized Condition New Shape Square,Rectangular,Round,Non-Standard,Beam Blank Feature Optimum Binding Strength Advantage High Casting Speed Size 100,120,125,150mm Plating Chrome Wall Thickness 0.3-20mm Outside Diameter 3-360mm Transport Package Wooden Package Specification 100*100*780-R4000 Trademark Shengmiao Origin China HS Code 8454209000 Production Capacity 50000/Month

Product Description

Upgrade CuAg Material High Quality Copper Mould Tube

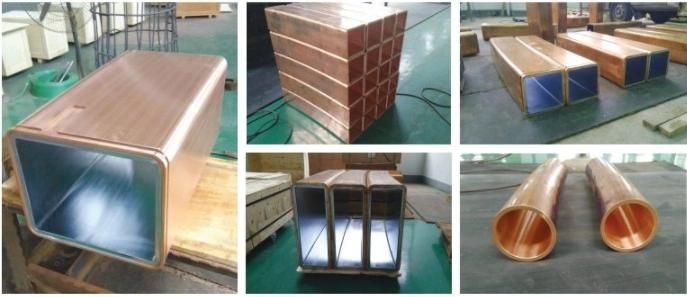

 Our products including square copper mould tube, rectangular copper mould tube, round copper mould tube, beam blank copper mould tubes and other non-standard copper mould tubes. Products specification are as following:

Product Name	Size	Thickness	Length	Radius
Square Copper Tubes	50x50-650x650	6-50	602-1100	3000-17000 Or straight
Round Copper Tubes	φ110-φ1500	10-50	602-900	5000-17000 Or straight
Rectangle Copper Tubes	(100-500)x650	6-50	602-1100	3000-17000 Or straight
Beam Blank Copper Mould Tubes	535-150x120-70	12-50	700-1016	6000-14000
Non-standard Copper Mould Tubes	535-150x120-70	12-50	700-1016	6000-14000

Advantages of Shengmiao Mould-Tubes:
• High casting speed
• Uniform shell growth
• No sticking
• Optimum billet quality
• Long service life
• Low cost



Production Process:
MELTING & CASTING --- HOT EXTRUSION/FORGING --- COLD DRAWING --- TAPERING --- MACHINING --- ELECTROPLATING --- MACHINING AFTER ELECTROPLATING --- FINAL INSPECTION --- PACKING

Copper Mould Tube Material:
Raw Material of Copper Mould Tubes

To provide mould tubes with optimal physical and mechanical properties to customers' specifications, mould tube products are supplied of the following materials:
  1. Cu-DHP: Normally used for mould tubes section size below 180x180mm and round tubes below Dia.150mm.
   2. Cu-Ag: Normally used for mould tube section size above 180x180mm and round tubes above Dia.150mm
   3. Cu-Cr-Zr: Normally used for beam blank mould tubes

These materials have different levels of hardness and thermal conductivities. We are highly experienced in choosing proper materials to meet the specific demands in heat resistance and thermal conductivities of customers' applications.

About Shengmiao

Founded in 1992, Henan Shengmiao Instrument Co., Ltd. is one of the China's leading supplier of copper mould tube and plate for continuous casting industry. With over 20 years of expertise in metallurgy industry of copper and copper alloys, the company is committed to research & development, and providing a range of high quality, innovative, cost-effective copper mould tube products and solutions.

Possessing advanced manufacturing equipments and cutting-edge technology for mechanical and Eelectro-plating processing, in order to meet customer's requirement, the company designs and develops cooper mould tube and plate according to DIN, ASTM, EN, JIS standard. Providing diverse lines of the products backed by expert R&D technical support, we develop closer customer relationships and taking on a larger role in the total supply and manufacturing chain. The diverse products include copper mould tubes and copper mould plates.

Our ISO 9001:2015 certification registered production facilities are emblematic of Shengmiao's ongoing commitment to quality and sustainability in the manufacture of these products. The company maintains stringent quality processes and standards in the industry to ensure an effective Quality Management System, continual improvements, and excellence in customer satisfaction.

Being approved by international well-known inspection institutions such as SGS, OMIC, IKA, ISQI, COTECNA, our products have been exported to Europe, Asia, Africa, South America and Middle Eastern countries, which enjoys good reputation.

As an influential and responsible supplier, we are able to provide our customers with more thoughtful services and technical support. To ensure long-term customer satisfaction, we offer comprehensive support for copper mould over their whole life cycle.


Customer Visiting
